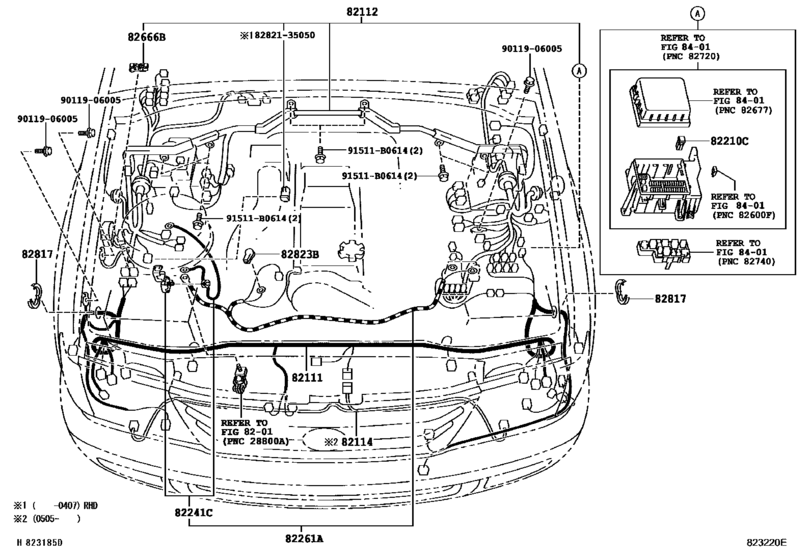

Wiring & Clamp ([08.2002 - ] ENGINE ROOM (0208- )HDJ100) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-6A083 Wire, Engine Room MainENGINE ROOM MAIN [08.2002 - 05.2005] HDJ100..VX W(DUAL AIR CONDITIONER) |
82111-6A083 |
US $430.98 |
||
|
82111
|
82111
82111-6A084
Wire, Engine Room Main
[05.2005 -] HDJ100 W(DUAL AUTO AIR CONDITIONER) |
82111-6A084 |
— | ||
|
82111
|
82111
82111-6A184 Wire, Engine Room Main[08.2002 - 05.2005] HDJ100 W(SINGLE AIR CONDITIONER) |
82111-6A184 |
US $430.98 |
||
|
82111
|
82111
82111-6A185 Wire, Engine Room Main[05.2005 -] HDJ100 |
82111-6A185 |
US $500.86 |
||
|
82112
|
82112
82112-60154 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.2002 - 08.2003] HDJ100..LHD..(5F,5FC) |
82112-60154 |
US $2,023.84 |
||
|
82112
|
82112
82112-60155 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.2003 - 07.2004] HDJ100..LHD |
82112-60155 |
US $2,038.40 |
||
|
82112
|
82112
82112-60156
Wire, Engine Room, No.2
[07.2004 - 05.2005] HDJ100..LHD |
82112-60156 |
— | ||
|
82112
|
82112
82112-60610 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [07.2003 - 07.2004] HDJ100..LHD..5FC W(VSC) |
82112-60610 |
US $2,038.40 |
||
|
82112
|
82112
82112-60611
Wire, Engine Room, No.2
[07.2004 - 05.2005] HDJ100..LHD..5FC W(VSC) |
82112-60611 |
— | ||
|
82114
|
82114
82114-60060 Wire, Engine Room, No.4[05.2005 -] HDJ100,UZJ100 |
82114-60060 |
US $55.91 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2002 - 05.2005] HDJ100,UZJ100 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.35 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2002 - 05.2005] HDJ100,UZJ100 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[08.2002 - 05.2005] HDJ100,UZJ100 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[08.2002 - 05.2005] HDJ100,UZJ100 80A |
90982-08291 |
US $7.88 |
||
|
82241C
|
82241C
82241-60022 Wire, Relay[08.2002 - 05.2005] HDJ100 |
82241-60022 |
US $57.51 |
||
|
82261A
|
82261A
82261-60091 Wire, Alternator[08.2002 - 05.2005] HDJ100..(5F,5FC)..VX W(BATTERY=80D26R + 80D26L) |
82261-60091 |
US $279.55 |
||
|
82261A
|
82261A
82261-60160 Wire, Alternator[08.2002 - 05.2005] HDJ100..5F,5FC W(BATTERY=105D31R + 105D31L) |
82261-60160 |
US $288.29 |
||
|
82666B
|
82666B
82666-60060 Holder, Connector No.2[08.2002 - 05.2005] HDJ100,UZJ100..5FC |
82666-60060 |
US $3.67 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[08.2002 - 05.2005] HDJ100,UZJ100 |
82817-24110 |
US $5.42 |
||
|
82823B
|
82823B
82823-22050 Cap, Terminal, No.1[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
82823-22050 |
from US $3.57 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
8282135050
|
8282135050
82821-35050 Cover, Connector |
82821-35050 |
US $2.04 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
