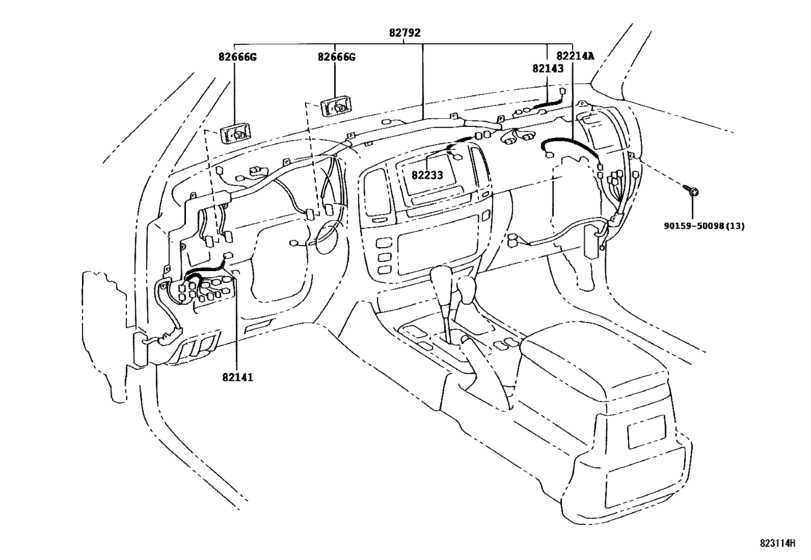

Wiring & Clamp ([08.2002 - ] INSTRUMENT PANEL (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-60272 Wire, Instrument PanelINSTRUMENT PANEL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
82141-60272 |
US $57.51 |
||
|
82141
|
82141
82141-60372 Wire, Instrument PanelINSTRUMENT PANEL [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
82141-60372 |
US $68.72 |
||
|
82143
|
82143
82143-60091
Wire, Instrument Panel, No.3
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC |
82143-60091 |
— | ||
|
82214A
|
82214A
82214-60030 Wire, Lamp[08.2002 - 05.2005] HDJ100,UZJ100..LHD..5FC |
82214-60030 |
US $11.88 |
||
|
82233
|
82233
82233-60011 Wire, Computer[08.2002 - 05.2005] HDJ100,UZJ100 |
82233-60011 |
US $19.66 |
||
|
82666G
|
82666G
82666-60050 Holder, Connector No.2[08.2002 - 05.2005] HDJ100,UZJ100 |
82666-60050 |
US $9.32 |
||
|
82792
|
82792
82792-60125
Wire, Instrument Panel Integration
[07.2003 - 07.2004] HDJ100..LHD..5FC W(AIR BAG) |
82792-60125 |
— | ||
|
82792
|
82792
82792-60126
Wire, Instrument Panel Integration
[07.2004 - 05.2005] HDJ100,UZJ100..LHD W(CURTAIN SHIELD AIR BAG) |
82792-60126 |
— | ||
| replacement | |||||
|
82792
|
82792
82792-60127
Wire, Instrument Panel Integration
[07.2004 - 05.2005] HDJ100,UZJ100..LHD W(CURTAIN SHIELD AIR BAG) |
82792-60127 |
— | ||
|
82792
|
82792
82792-60127
Wire, Instrument Panel Integration
[09.2006 -] HDJ100,UZJ100..LHD |
82792-60127 |
— | ||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
