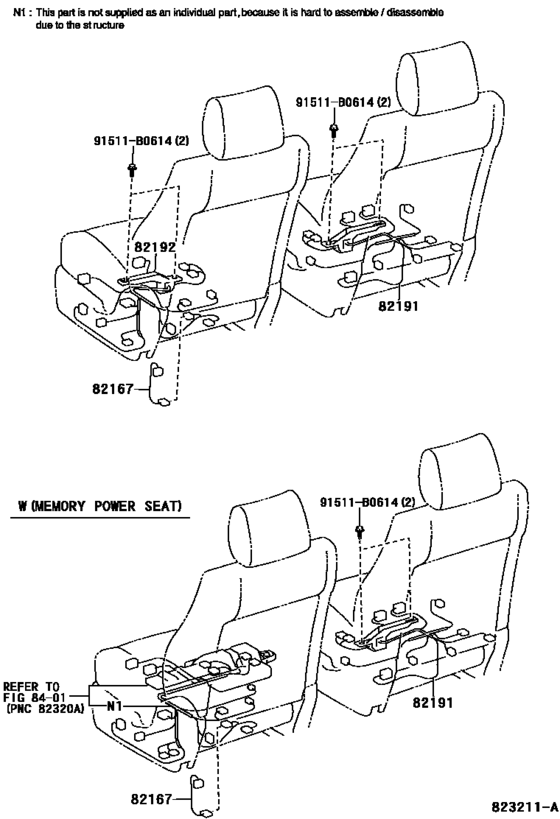

Wiring & Clamp ([08.2002 - ] SEAT (0208- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82167
|
82167
82167-60121 Wire, Seat, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82167-60121 |
US $7.86 |
||
|
82191
|
82191
82191-60011 Wire, Front Seat, RhFRONT SEAT, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(POWER SEAT) |
82191-60011 |
US $139.78 |
||
|
82191
|
82191
82191-60021 Wire, Front Seat, RhFRONT SEAT, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD |
82191-60021 |
US $19.66 |
||
|
82191
|
82191
82191-60061 Wire, Front Seat, RhFRONT SEAT, RH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX W(SEAT HEATER) |
82191-60061 |
US $45.86 |
||
|
82192
|
82192
82192-60031 Wire, Front Seat, LhFRONT SEAT, LH [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
82192-60031 |
US $100.46 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
