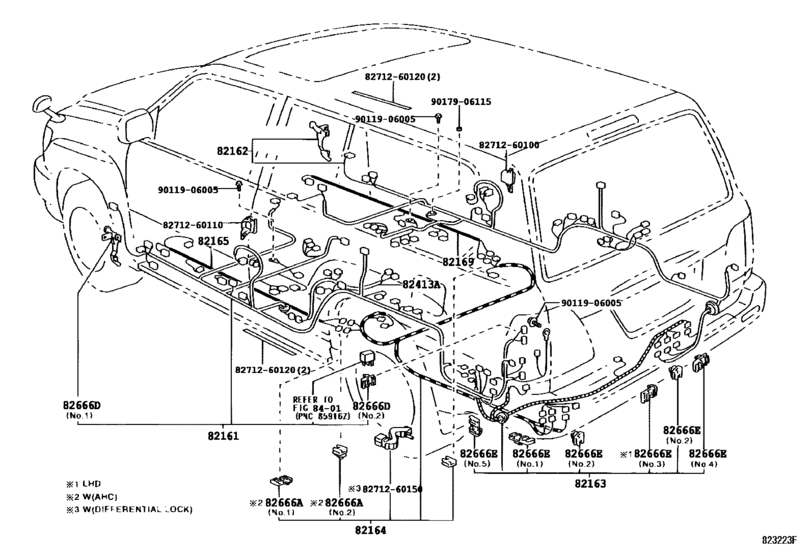

Wiring & Clamp ([08.2002 - ] FLOOR,LUGGAGE (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-60665 Wire, Floor[03.2003 - 05.2005] HDJ100,UZJ100..5F,5FC |
82161-60665 |
US $1,035.22 |
||
| replacement | |||||
|
82161
|
82161
82161-60666 Wire, Floor[03.2003 - 05.2005] HDJ100,UZJ100..5F,5FC |
82161-60666 |
US $1,528.80 |
||
|
82161
|
82161
82161-60666 Wire, Floor[05.2005 -] HDJ100,UZJ100 |
82161-60666 |
US $1,528.80 |
||
|
82161
|
82161
82161-6A382 Wire, Floor[03.2003 - 11.2003] HDJ100,UZJ100..(5F,5FC)..VX W(CURTAIN SHIELD AIR BAG) |
82161-6A382 |
US $1,033.76 |
||
|
82161
|
82161
82161-6A383
Wire, Floor
[11.2003 - 05.2005] HDJ100,UZJ100..VX W(CURTAIN SHIELD AIR BAG) |
82161-6A383 |
— | ||
|
82161
|
82161
82161-6A384 Wire, Floor[05.2005 -] HDJ100,UZJ100 W(CURTAIN SHIELD AIR BAG) |
82161-6A384 |
US $1,688.96 |
||
|
82162
|
82162
82162-60483 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..5F,5FC |
82162-60483 |
US $1,102.19 |
||
|
82162
|
82162
82162-60484
Wire, Floor, No.2
[08.2003 - 05.2005] HDJ100,UZJ100 |
82162-60484 |
— | ||
|
82162
|
82162
82162-60494 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER) |
82162-60494 |
US $1,189.55 |
||
|
82162
|
82162
82162-60495 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(AMPLIFIER) |
82162-60495 |
US $1,191.01 |
||
|
82162
|
82162
82162-60514 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AUTO AIR CONDITIONER) |
82162-60514 |
US $1,189.55 |
||
|
82162
|
82162
82162-60515 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(DUAL AUTO AIR CONDITIONER) |
82162-60515 |
US $1,191.01 |
||
|
82162
|
82162
82162-60615 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER & DUAL AUTOMATIC AIR CONDITIONER) |
82162-60615 |
US $1,355.54 |
||
|
82162
|
82162
82162-60616 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(AMPLIFIER & DUAL AUTOMATIC AIR CONDITIONER) |
82162-60616 |
US $1,356.99 |
||
|
82162
|
82162
82162-6A330 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(SIDE AIR BAG) |
82162-6A330 |
US $1,189.55 |
||
|
82162
|
82162
82162-6A331 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(SIDE AIR BAG) |
82162-6A331 |
US $1,191.01 |
||
|
82162
|
82162
82162-6A340 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER & SIDE AIR BAG) |
82162-6A340 |
US $1,355.54 |
||
|
82162
|
82162
82162-6A341 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(AMPLIFIER & SIDE AIR BAG) |
82162-6A341 |
US $1,356.99 |
||
|
82162
|
82162
82162-6A370 Wire, Floor, No.2[08.2002 - 08.2003] HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
82162-6A370 |
US $1,355.54 |
||
|
82162
|
82162
82162-6A371 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
82162-6A371 |
US $1,356.99 |
||
|
82162
|
82162
82162-6A380 Wire, Floor, No.2[07.2003 - 08.2003] HDJ100..5FC W(AMPLIFIER & DUAL AIR CONDITIONER & SIDE AIR BAG) |
82162-6A380 |
US $1,528.80 |
||
|
82162
|
82162
82162-6A381 Wire, Floor, No.2[08.2003 - 05.2005] HDJ100,UZJ100..VX W(AMPLIFIER & DUAL AIR CONDITIONER & SIDE AIR BAG) |
82162-6A381 |
US $1,528.80 |
||
|
82162
|
82162
82162-6A440 Wire, Floor, No.2FLOOR, NO.2 [07.2003 - 08.2003] HDJ100..LHD..5FC W(AMPLIFIER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A440 |
US $1,355.54 |
||
|
82162
|
82162
82162-6A441 Wire, Floor, No.2FLOOR, NO.2 [08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX W(AMPLIFIER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A441 |
US $1,356.99 |
||
|
82162
|
82162
82162-6A450 Wire, Floor, No.2FLOOR, NO.2 [07.2003 - 08.2003] HDJ100..LHD..5FC W(AMPLIFIER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A450 |
US $1,189.55 |
||
|
82162
|
82162
82162-6A451 Wire, Floor, No.2FLOOR, NO.2 [08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX W(AMPLIFIER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A451 |
US $1,191.01 |
||
| replacement | |||||
|
82162
|
82162
82162-6A453 Wire, Floor, No.2FLOOR, NO.2 [08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX W(AMPLIFIER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A453 |
US $1,191.01 |
||
|
82162
|
82162
82162-6A453 Wire, Floor, No.2FLOOR, NO.2 [05.2005 -] HDJ100,UZJ100..LHD W(7 SPEAKER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
82162-6A453 |
US $1,191.01 |
||
|
82163
|
82163
82163-60252
Wire, Floor, No.3
[08.2002 - 08.2003] HDJ100,UZJ100..LHD |
82163-60252 |
— | ||
| replacement | |||||
|
82163
|
82163
82163-60253 Wire, Floor, No.3FLOOR, NO.3 [08.2002 - 08.2003] HDJ100,UZJ100..LHD |
82163-60253 |
US $323.23 |
||
|
82163
|
82163
82163-60253 Wire, Floor, No.3FLOOR, NO.3 [08.2003 - 05.2005] HDJ100,UZJ100..LHD |
82163-60253 |
US $323.23 |
||
|
82163
|
82163
82163-60263 Wire, Floor, No.3FLOOR, NO.3 [07.2003 - 08.2003] HDJ100..LHD..5FC W(AHC) |
82163-60263 |
US $356.72 |
||
| replacement | |||||
|
82163
|
82163
82163-60264 Wire, Floor, No.3FLOOR, NO.3 [07.2003 - 08.2003] HDJ100..LHD..5FC W(AHC) |
82163-60264 |
US $419.33 |
||
|
82163
|
82163
82163-60264 Wire, Floor, No.3FLOOR, NO.3 [05.2005 -] HDJ100,UZJ100..LHD |
82163-60264 |
US $419.33 |
||
|
82163
|
82163
82163-60324 Wire, Floor, No.3FLOOR, NO.3 [08.2002 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(AHC & REAR HEATER) |
82163-60324 |
US $429.52 |
||
| replacement | |||||
|
82163
|
82163
82163-60325 Wire, Floor, No.3FLOOR, NO.3 [08.2002 - 08.2003] HDJ100,UZJ100..LHD..(5F,5FC)..VX W(AHC & REAR HEATER) |
82163-60325 |
US $430.98 |
||
|
82163
|
82163
82163-60325 Wire, Floor, No.3FLOOR, NO.3 [08.2003 - 05.2005] HDJ100,UZJ100..LHD..VX W(AHC & REAR HEATER) |
82163-60325 |
US $430.98 |
||
|
82163
|
82163
82163-60326 Wire, Floor, No.3FLOOR, NO.3 [05.2005 -] HDJ100,UZJ100..LHD W(DUAL AUTO AIR CONDITIONER) |
82163-60326 |
US $430.98 |
||
|
82164
|
82164
82164-60160 Wire, Frame[08.2002 - 05.2005] HDJ100,UZJ100..5F,5FC |
82164-60160 |
US $52.42 |
||
|
82164
|
82164
82164-60171
Wire, Frame
[08.2002 - 05.2005] HDJ100..5F W(REAR DIFFERENTIAL LOCK); HDJ100,UZJ100..5FC W(ABS & REAR DIFFERENTIAL LOCK) |
82164-60171 |
— | ||
|
82164
|
82164
82164-60191 Wire, Frame[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(ABS & AHC) |
82164-60191 |
US $288.29 |
||
| replacement | |||||
|
82164
|
82164
82164-60192 Wire, Frame[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(ABS & AHC) |
82164-60192 |
US $288.29 |
||
|
82164
|
82164
82164-60192 Wire, Frame[07.2006 -] HDJ100,UZJ100 W(AHC) |
82164-60192 |
US $288.29 |
||
|
82164
|
82164
82164-60202 Wire, Frame[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(REAR DIFFERENTIAL LOCK & AHC & ABS) |
82164-60202 |
US $430.98 |
||
| replacement | |||||
|
82164
|
82164
82164-60203
Wire, Frame
[08.2002 - 05.2005] HDJ100,UZJ100..(5F,5FC)..VX W(REAR DIFFERENTIAL LOCK & AHC & ABS) |
82164-60203 |
— | ||
|
82164
|
82164
82164-60203
Wire, Frame
[07.2006 -] HDJ100,UZJ100 W(AHC & REAR DIFFERENTIAL LOCK) |
82164-60203 |
— | ||
|
82165
|
82165
82165-60131 Wire, Frame, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82165-60131 |
US $168.90 |
||
|
82169
|
82169
82169-60040 Wire Frame, No.3[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82169-60040 |
US $82.12 |
||
|
82413A
|
82413A
82413-60011 Wire, Fuel Tank[08.2002 - 05.2005] HDJ100,UZJ100 |
82413-60011 |
US $45.86 |
||
|
82666A
|
82666A
82666-60060 Holder, Connector No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX NO.1 |
82666-60060 |
US $3.67 |
||
|
82666A
|
82666A
82666-60160 Holder, Connector No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX NO.2 |
82666-60160 |
US $10.48 |
||
|
82666D
|
82666D
82666-60030 Holder, Connector No.3[08.2002 - 05.2005] HDJ100..5FC;HDJ100..LHD..5F NO.2 |
82666-60030 |
US $2.91 |
||
|
82666D
|
82666D
82666-60270 Holder, Connector No.5[08.2002 - 05.2005] HDJ100..5FC;HDJ100..LHD..5F NO.1 |
82666-60270 |
US $22.57 |
||
|
82666E
|
82666E
82666-60060 Holder, Connector No.2[08.2002 - 08.2003] HDJ100,UZJ100..5F,5FC NO.2 |
82666-60060 |
US $3.67 |
||
|
82666E
|
82666E
82666-60070 Holder, Connector[08.2003 - 05.2005] HDJ100,UZJ100..RHD NO.1,3; HDJ100,UZJ100..LHD NO.1; HDJ100,UZJ100..VX NO.2 |
82666-60070 |
US $3.14 |
||
|
82666E
|
82666E
82666-60310 Holder, Connector No.7[08.2003 - 05.2005] HDJ100,UZJ100..LHD NO.3 |
82666-60310 |
US $2.91 |
||
|
8271260100
|
8271260100
82712-60100
Hose, Suction
|
82712-60100 |
— | ||
|
8271260110
|
8271260110
82712-60110 Hose, Suction |
82712-60110 |
US $14.71 |
||
|
8271260120
|
8271260120
82712-60120 Hose, Suction |
82712-60120 |
US $7.57 |
||
|
8271260150
|
8271260150
82712-60150 Hose, Suction |
82712-60150 |
US $9.17 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
