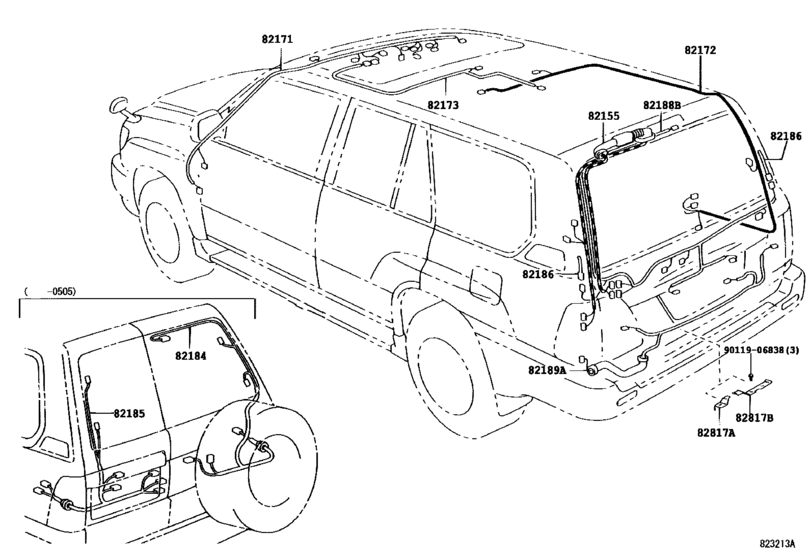

Wiring & Clamp ([08.2002 - ] ROOF,BACK DOOR (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2003 - 2007
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 07.2003
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82155
|
82155
82155-60022 Wire, Center Piller, No.1[03.2003 - 05.2005] HDJ100,UZJ100..VX |
82155-60022 |
US $206.17 |
||
|
82155
|
82155
82155-60040 Wire, Center Piller, No.1[07.2003 - 05.2005] HDJ100..5FC W(NAVIGATION SYSTEM) |
82155-60040 |
US $196.56 |
||
|
82171
|
82171
82171-60542
Wire, Roof, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82171-60542 |
— | ||
|
82171
|
82171
82171-6A270
Wire, Roof, No.1
[08.2002 - 05.2005] HDJ100,UZJ100..VX W(MOON ROOF) |
82171-6A270 |
— | ||
|
82172
|
82172
82172-60110 Wire, Roof, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82172-60110 |
US $161.62 |
||
|
82173
|
82173
82173-60080
Wire, Roof, No.3
[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82173-60080 |
— | ||
|
82173
|
82173
82173-60090 Wire, Roof, No.3[08.2002 - 05.2005] HDJ100,UZJ100..VX W(MOON ROOF) |
82173-60090 |
US $30.87 |
||
|
82186
|
82186
82186-60040 Wire, Rear Window, No.1[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82186-60040 |
US $41.35 |
||
|
82188B
|
82188B
82188-60051 Wire, Back Door, Upper[08.2002 - 08.2003] HDJ100,UZJ100..VX |
82188-60051 |
US $100.46 |
||
|
82188B
|
82188B
82188-60052 Wire, Back Door, Upper[08.2003 - 05.2005] HDJ100,UZJ100..VX |
82188-60052 |
US $100.46 |
||
|
82188B
|
82188B
82188-60070 Wire, Back Door, Upper[07.2003 - 05.2005] HDJ100..5FC W(BACK MONITOR) |
82188-60070 |
US $100.46 |
||
|
82189A
|
82189A
82189-60032 Wire, Back Door, Lower[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82189-60032 |
US $122.30 |
||
|
82817A
|
82817A
82817-60440 Protector, Wiring Harness, No.2[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82817-60440 |
US $11.36 |
||
|
82817B
|
82817B
82817-60450 Protector, Wiring Harness, No.3[08.2002 - 05.2005] HDJ100,UZJ100..VX |
82817-60450 |
US $34.51 |
||
|
9011906838
|
9011906838
90119-06838 New Genuine Part |
90119-06838 |
US $1.46 |
||
| replacement | |||||
|
9011906838
|
9011906838
90119-06660 BOLT |
90119-06660 |
US $2.15 |
||
