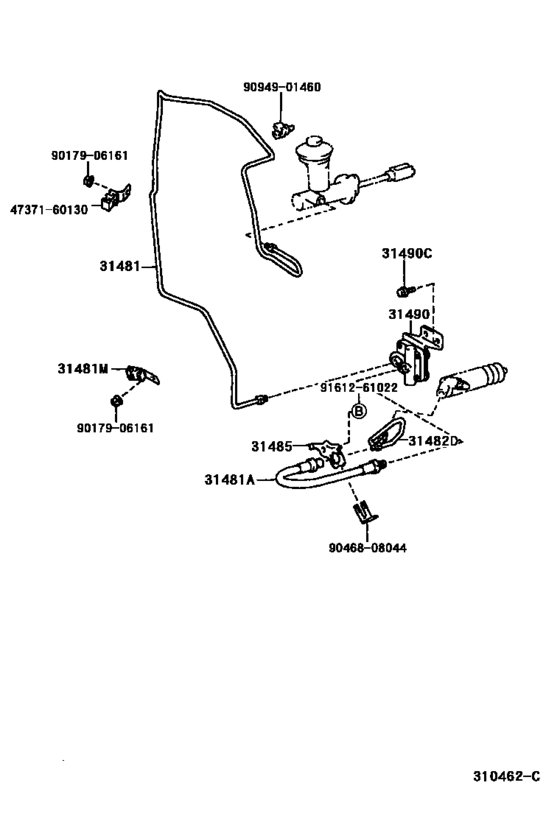

Clutch Pedal & Flexible Hose ([01.1998 - ] (9801- )HDJ100..LHD..5F) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-60840
Tube, Clutch Master Cylinder To Flexible Hose
[08.2002 - 05.2005] HDJ100..LHD..5F |
31481-60840 |
— | ||
|
31481A
|
31481A
90947-02A28 Hose, Clutch, No.1[08.2002 - 05.2005] HDJ100..5F |
90947-02A28 |
US $15.90 |
||
|
31481M
|
31481M
47371-60120
Clamp(For Clutch Master Cylinder Tube)
[08.2002 - 05.2005] FZJ100,HDJ100..5F..(ARL,GCC,GEN) |
47371-60120 |
— | ||
|
31482D
|
31482D
31482-60050 Tube, Clutch Release Cylinder To Accumulator[08.2002 - 05.2005] HDJ100..5F |
31482-60050 |
US $7.69 |
||
|
31485
|
31485
31484-60200 Bracket, Flexible Hose, No.2(For Clutch)[08.2002 - 05.2005] HDJ100..5F |
31484-60200 |
US $8.74 |
||
|
31490
|
31490
31490-60080 Accumulator Assy, Clutch[08.2002 - 05.2005] HDJ100..5F |
31490-60080 |
US $82.12 |
||
|
31490C
|
31490C
90179-06161 Bolt, Union(For Clutch Accumulator)[08.2002 - 05.2005] HDJ100..5F |
90179-06161 |
from US $0.92 |
||
|
4737160130
|
4737160130
47371-60130
Bracket, Connector
|
47371-60130 |
— | ||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.92 |
||
|
9046808044
|
9046808044
90468-08044
CLIP
|
90468-08044 |
— | ||
| replacement | |||||
|
9046808044
|
9046808044
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9094901460
|
9094901460
90949-01460 New Genuine Part |
90949-01460 |
US $2.97 |
||
|
9161261022
|
9161261022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
