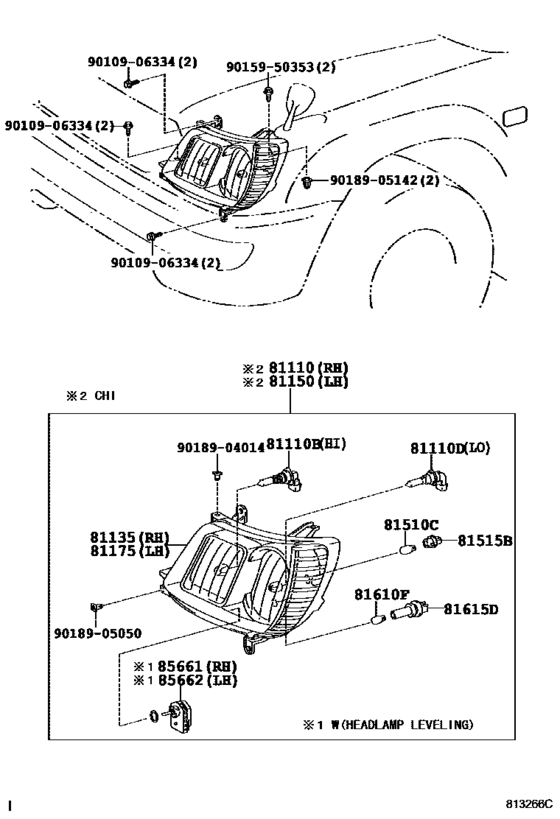

Headlamp ([06.2005 - ] (0505-0506)ARL,GCC,GEN ; (0506- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90080-81041
Bulb(For Headlamp, No.1)
[05.2005 -] UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 65W |
90080-81041 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[05.2005 -] UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 65W |
90981-13046 |
from US $15.97 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $15.97 |
||
|
81110D
|
81110D
90981-13047 Bulb (HB4)[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 51W,HALOGEN |
90981-13047 |
from US $15.29 |
||
|
81135
|
81135
81019-60040
Unit Assy, Headlamp, Rh
[08.2002 - 08.2003] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
81019-60040 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60042 Unit Assy, Headlamp, Rh[08.2002 - 08.2003] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
81019-60042 |
US $372.24 |
||
|
81135
|
81135
81019-60041
Unit Assy, Headlamp, Rh
[08.2003 - 05.2005] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
81019-60041 |
— | ||
| replacement | |||||
|
81135
|
81135
81019-60042 Unit Assy, Headlamp, Rh[08.2003 - 05.2005] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
81019-60042 |
US $372.24 |
||
|
81135
|
81135
81130-60A90
Unit Assy, Headlamp, Rh
[05.2005 - 08.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81130-60A90 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [05.2005 - 08.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81130-60A92 |
US $329.65 |
||
|
81135
|
81135
81130-60A91
Unit Assy, Headlamp, Rh
[08.2006 - 09.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81130-60A91 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [08.2006 - 09.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81130-60A92 |
US $329.65 |
||
|
81135
|
81135
81130-60A92 Unit Assy, Headlamp, RhHEADLAMP, RH [09.2006 -] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81130-60A92 |
US $329.65 |
||
|
81175
|
81175
81059-60040
Unit Assy, Headlamp, Lh
[08.2002 - 08.2003] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
81059-60040 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60042 Unit Assy, Headlamp, Lh[08.2002 - 08.2003] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD |
81059-60042 |
US $358.27 |
||
|
81175
|
81175
81059-60041
Unit Assy, Headlamp, Lh
[08.2003 - 05.2005] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
81059-60041 |
— | ||
| replacement | |||||
|
81175
|
81175
81059-60042 Unit Assy, Headlamp, Lh[08.2003 - 05.2005] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
81059-60042 |
US $358.27 |
||
|
81175
|
81175
81170-60A80 Unit Assy, Headlamp, LhHEADLAMP, LH [05.2005 - 08.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81170-60A80 |
US $428.06 |
||
| replacement | |||||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [05.2005 - 08.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81170-60A82 |
US $336.10 |
||
|
81175
|
81175
81170-60A81
Unit Assy, Headlamp, Lh
[08.2006 - 09.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81170-60A81 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [08.2006 - 09.2006] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81170-60A82 |
US $336.10 |
||
|
81175
|
81175
81170-60A82 Unit Assy, Headlamp, LhHEADLAMP, LH [09.2006 -] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
81170-60A82 |
US $336.10 |
||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[05.2005 -] UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..LHD..(GCC,GEN) 12V 21W,AMBER |
90981-15021 |
from US $3.22 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[05.2005 -] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90075-60028 |
from US $6.36 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90075-60004 Cover, Headlamp Socket[08.2002 - 05.2005] HZJ105..GCC;FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN); HDJ100,UZJ100..RHD;FZJ105,HZJ105..ARL,GEN |
90075-60004 |
from US $7.22 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[05.2005 -] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90075-60077 |
from US $5.97 |
||
|
9010906334
|
9010906334
90109-06334 BOLT |
90109-06334 |
from US $0.80 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.66 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.98 |
||
|
9018905050
|
9018905050
90189-05050 CLIP |
90189-05050 |
from US $1.21 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
