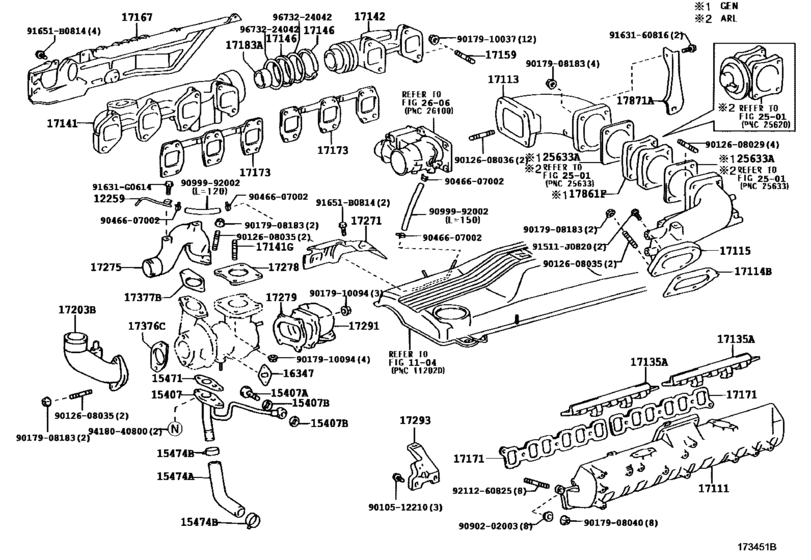

Manifold ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- LHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12259
|
12259
12259-17010 Pipe, Oil Return, No.2OIL RETURN, NO.2 [08.2002 - 05.2005] 1HDFTE..HDJ100 |
12259-17010 |
US $9.17 |
||
|
15407
|
15407
15407-17020 Pipe Sub-Assy, Turbo Oil Inlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
15407-17020 |
from US $23.63 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90401-12097 |
from US $2.94 |
||
|
15407B
|
15407B
90430-12221 Gasket[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90430-12221 |
from US $1.07 |
||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
15471-58010 |
from US $2.48 |
||
|
15474A
|
15474A
90910-05206 Hose, Turbo Oil Outlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90910-05206 |
from US $5.60 |
||
|
15474B
|
15474B
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
96134-52600 |
from US $2.87 |
||
|
16347
|
16347
16347-42020 Gasket, Water By-Pass[08.2002 - 05.2005] 1HDFTE..HDJ100 |
16347-42020 |
from US $2.71 |
||
|
17111
|
17111
17111-17031 Manifold, Intake[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17111-17031 |
US $503.19 |
||
|
17113
|
17113
17113-17100 Pipe, Intake[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17113-17100 |
US $286.54 |
||
|
17114B
|
17114B
17116-17020 Gasket, Intake Flange[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17116-17020 |
from US $6.59 |
||
|
17115
|
17115
17115-17021 Gasket, Intake Manifold Hole Cover[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17115-17021 |
US $263.83 |
||
|
17135A
|
17135A
17135-17010 Insulator, Intake Manifold, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17135-17010 |
US $44.35 |
||
|
17141
|
17141
17141-17031 Manifold, Exhaust[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17141-17031 |
from US $291.35 |
||
|
17141G
|
17141G
90116-10117 Bolt, Stud(For Turbine Housing)[08.2002 - 05.2005] 1HDFTE..HDJ100 |
90116-10117 |
from US $1.46 |
||
|
17142
|
17142
17142-17020 Case, Exhaust Manifold, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100..GEN |
17142-17020 |
US $342.45 |
||
|
17146
|
17146
17151-17010 Ring, Exhaust Manifold[08.2002 - 05.2005] 1H#..HDJ100,HZJ105 |
17151-17010 |
from US $7.45 |
||
|
17159
|
17159
90116-10171 Bolt, Stud(For Manifold To Cylinder Head)[08.2002 - 05.2005] 1H#..HDJ100,HZJ105 |
90116-10171 |
from US $1.13 |
||
|
17167
|
17167
17167-17052
Insulator, Exhaust Manifold Heat, No.1
[08.2002 - 05.2005] 1HDFTE..HDJ100..GEN |
17167-17052 |
— | ||
|
17171
|
17171
17171-17030 Gasket, Intake To Exhaust Manifold[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17171-17030 |
from US $12.95 |
||
|
17173
|
17173
17173-17020 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17173-17020 |
from US $23.09 |
||
|
17183A
|
17183A
17183-17010 Collar, Manifold[08.2002 - 05.2005] 1H#..HDJ100,HZJ105 |
17183-17010 |
from US $3.82 |
||
|
17203B
|
17203B
17203-17010 Elbow Sub-Assy, Compressor Inlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17203-17010 |
US $145.52 |
||
|
17271
|
17271
17271-17010 Insulator, Turbo, No.1[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17271-17010 |
from US $21.82 |
||
|
17275
|
17275
17275-17011
Elbow, Compressor Outlet
[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17275-17011 |
— | ||
|
17278
|
17278
17278-17010 Gasket, Turbo To Exhaust Manifold[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17278-17010 |
from US $23.67 |
||
|
17279
|
17279
17279-17020 Gasket, Turbine Outlet Elbow[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17279-17020 |
from US $11.93 |
||
|
17291
|
17291
17291-17030 Elbow, Turbine Outlet[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17291-17030 |
US $204.42 |
||
|
17293
|
17293
17293-17020 Stay, Turbocharger[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17293-17020 |
from US $32.92 |
||
|
17376C
|
17376C
17376-17010 Gasket, Air Tube[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17376-17010 |
from US $2.03 |
||
|
17377B
|
17377B
17377-88410 Gasket, Air Tube, No.2[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17377-88410 |
from US $5.89 |
||
|
17861F
|
17861F
17861-17030 Connector, Intake AirINTAKE AIR [08.2002 - 05.2005] 1HDFTE..HDJ100..GEN |
17861-17030 |
US $100.04 |
||
|
17871A
|
17871A
17871-17020
Stay, Air Connector
[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17871-17020 |
— | ||
|
25633A
|
25633A
25633-17020 Gasket, Egr Valve[08.2002 - 05.2005] 1HDFTE..HDJ100..GEN |
25633-17020 |
from US $4.62 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.92 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.66 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9010512210
|
9010512210
90105-12210 BOLT, WASHER BASED |
90105-12210 |
from US $1.66 |
||
|
9012608029
|
9012608029
90126-08029 STUD HEX LOBULAR |
90126-08029 |
US $12.19 |
||
|
9012608035
|
9012608035
90126-08035 STUD, HEX LOBULAR |
90126-08035 |
from US $2.48 |
||
|
9012608036
|
9012608036
90126-08036 New Genuine Part |
90126-08036 |
US $6.55 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.07 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.30 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.46 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.46 |
||
|
9046607002
|
9046607002
90466-07002 Clamp Or Clip(For Air Hose) |
90466-07002 |
US $1.25 |
||
|
9090202003
|
9090202003
90902-02003 WASHER PLATE |
90902-02003 |
from US $3.32 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.07 |
||
|
9211260825
|
9211260825
92112-60825 Bolt, Stud(For Oil Filter) |
92112-60825 |
US $2.87 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9673224042
|
9673224042
96732-24042 GASKET |
96732-24042 |
from US $2.22 |
||
