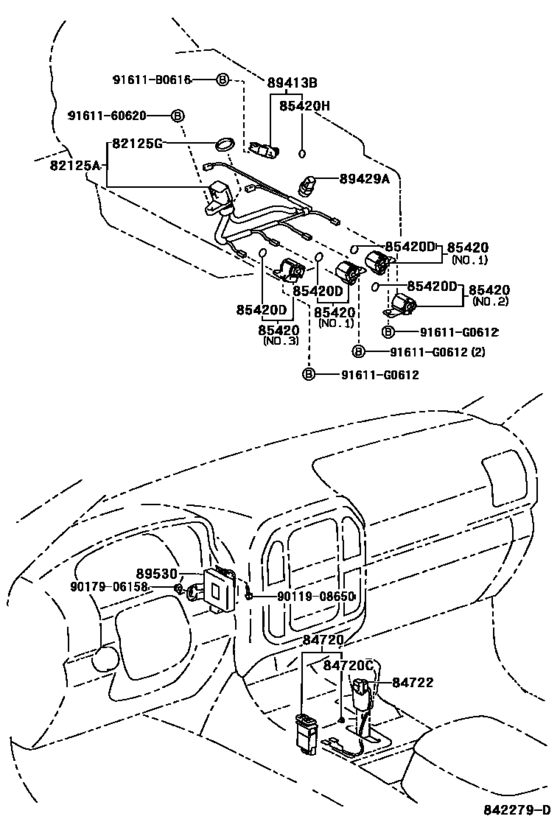

Overdrive & Electronic Controlled Transmission ([01.1998 - 08.2003] (9801-0308)HDJ100..LHD..4FC,5F) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2003
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 07.2003
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82125A
|
82125A
82125-60420
Wire, Transmission
[01.1998 - 07.1998] HDJ100..4FC;UZJ100..LHD TEMPERATURE SENSOR HOUSING = GRAY |
82125-60420 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[01.1998 - 07.1998] HDJ100..4FC;UZJ100..LHD TEMPERATURE SENSOR HOUSING = GRAY |
82125-25230 |
US $30.07 |
||
|
82125A
|
82125A
82125-60421
Wire, Transmission
[07.1998 - 08.2002] HDJ100..4FC TEMPERATURE SENSOR HOUSING = GRAY; UZJ100..LHD TEMPERATURE SENSOR HOUSING = GRAY RUSSIA SPEC |
82125-60421 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[07.1998 - 08.2002] HDJ100..4FC TEMPERATURE SENSOR HOUSING = GRAY; UZJ100..LHD TEMPERATURE SENSOR HOUSING = GRAY RUSSIA SPEC |
82125-25230 |
US $30.07 |
||
|
82125A
|
82125A
82125-60430
Wire, Transmission
[01.1998 - 07.1998] HDJ100..4FC;UZJ100..LHD TEMPERATURE SENSOR HOUSING = BLACK |
82125-60430 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[01.1998 - 07.1998] HDJ100..4FC;UZJ100..LHD TEMPERATURE SENSOR HOUSING = BLACK |
82125-25230 |
US $30.07 |
||
|
82125A
|
82125A
82125-60431
Wire, Transmission
[07.1998 - 08.2002] HDJ100..4FC TEMPERATURE SENSOR HOUSING = BLACK; UZJ100..LHD TEMPERATURE SENSOR HOUSING = BLACK SOUTH AMERICA SPEC |
82125-60431 |
— | ||
| replacement | |||||
|
82125A
|
82125A
82125-25230 Wire, Transmission[07.1998 - 08.2002] HDJ100..4FC TEMPERATURE SENSOR HOUSING = BLACK; UZJ100..LHD TEMPERATURE SENSOR HOUSING = BLACK SOUTH AMERICA SPEC |
82125-25230 |
US $30.07 |
||
|
82125G
|
82125G
96721-24020 O-Ring[01.1998 - 08.2002] HDJ100..4FC; UZJ100..LHD RUSSIA SPEC OR SOUTH AMERICA |
96721-24020 |
from US $1.58 |
||
|
84720
|
84720
84720-60120 Switch Assy, Pattern SelectPATTERN SELECT [01.1998 - 08.2002] HDJ100,UZJ100..LHD..4FC |
84720-60120 |
US $81.28 |
||
|
84720C
|
84720C
90010-01039 Blub, Center Cluster Module Switch[01.1998 - 08.2002] HDJ100,UZJ100..4FC 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.16 |
||
|
84722
|
84722
84722-60150-C0 Switch, Transmission ControlTRANSMISSION CONTROL [01.1998 - 08.2002] HDJ100,UZJ100..LHD..4FC BLACK,TRIM1#,40,41 |
84722-60150-C0 |
from US $37.32 |
||
|
84722
|
84722
84722-60160 Switch, Transmission Control[08.2000 - 08.2001] HDJ100,UZJ100..4FC WOOD KNOB |
84722-60160 |
US $42.22 |
||
|
85420
|
85420
85420-60050 Solenoid Assy, Transmission[01.1998 - 08.2002] HDJ100..4FC NO.1; UZJ100..LHD RUSSIA SPEC OR SOUTH AMERICA,NO.1 |
85420-60050 |
from US $146.74 |
||
|
85420
|
85420
85420-60060 Solenoid Assy, Transmission[01.1998 - 08.2002] HDJ100..4FC NO.2; UZJ100..LHD RUSSIA SPEC OR SOUTH AMERICA,N0.2 |
85420-60060 |
from US $149.90 |
||
|
85420
|
85420
85420-60070 Solenoid Assy, Transmission[01.1998 - 08.2002] HDJ100..4FC NO.3; UZJ100..LHD RUSSIA SPEC OR SOUTH AMERICA,NO.3 |
85420-60070 |
from US $150.33 |
||
|
85420D
|
85420D
90301-06004 Ring, O No.3(For Transmission Solenoid)[01.1998 - 08.2002] HDJ100..4FC; UZJ100..LHD RUSSIA SPEC OR SOUTH AMERICA |
90301-06004 |
from US $2.15 |
||
|
85420H
|
85420H
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[01.1998 - 08.2002] HDJ100,UZJ100..4FC |
90301-11008 |
from US $0.90 |
||
|
89413B
|
89413B
89413-32010
SENSOR, TRANSMISSION REVOLUTION
[01.1998 - 08.2002] HDJ100,UZJ100..4FC |
89413-32010 |
— | ||
| replacement | |||||
|
89413B
|
89413B
89413-32011 SENSOR, TRANSMISSION REVOLUTION[01.1998 - 08.2002] HDJ100,UZJ100..4FC |
89413-32011 |
from US $75.94 |
||
|
89429A
|
89429A
89428-60090 Switch, Temperature[01.1998 - 08.2002] HDJ100..4FC |
89428-60090 |
from US $63.65 |
||
|
89530
|
89530
89530-60250 Computer Assy, Transmission ControlTRANSMISSION CONTROL [01.1998 - 08.2000] HDJ100..LHD..4FC |
89530-60250 |
US $767.31 |
||
| replacement | |||||
|
89530
|
89530
89530-60251 Computer Assy, Transmission ControlTRANSMISSION CONTROL [01.1998 - 08.2000] HDJ100..LHD..4FC |
89530-60251 |
US $767.31 |
||
|
89530
|
89530
89530-60251 Computer Assy, Transmission ControlTRANSMISSION CONTROL [08.2000 - 08.2002] HDJ100..LHD..4FC |
89530-60251 |
US $767.31 |
||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9011908650
|
9011908650
90119-08650 New Genuine Part |
90119-08650 |
US $2.87 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
