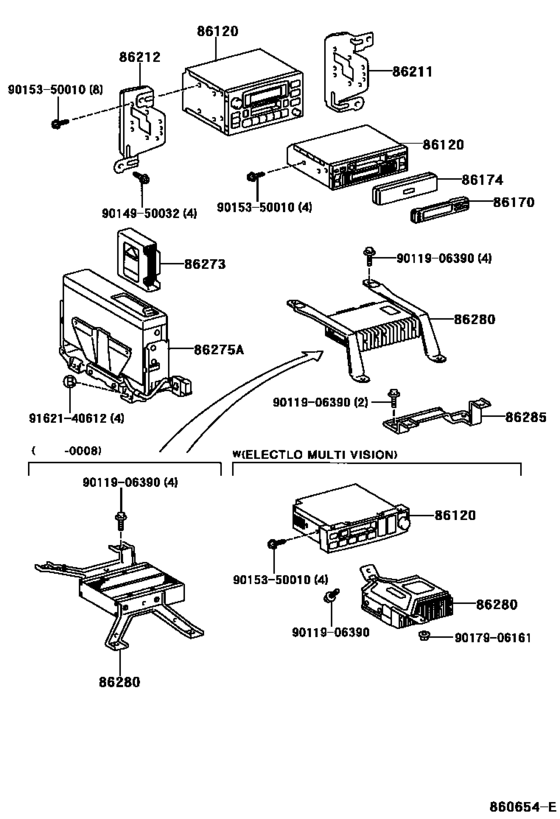

Radio Receiver & Amplifier & Condenser ([01.1998 - 08.2002] (9801-0208)) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2003
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 07.2003
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-2B560 Receiver Assy, Radio[01.1998 - 08.2000] HDJ100,UZJ100 FUJITSU TEN,ID=18401,TYPE A:REFER TO ILLUSTRATION |
86120-2B560 |
US $2,926.56 |
||
|
86120
|
86120
86120-2B620 Receiver Assy, RadioRADIO [08.2001 - 08.2002] HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57410,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) 4 SPEAKER |
86120-2B620 |
US $1,352.62 |
||
|
86120
|
86120
86120-33440
Receiver Assy, Radio
[08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57413,TYPE F:REFER TO ILLUSTRATION |
86120-33440 |
— | ||
|
86120
|
86120
86120-60260
Receiver Assy, Radio
[08.2000 - 08.2002] HDJ100,UZJ100..VX FUJITSU TEN,ID=18403,TYPE A:REFER TO ILLUSTRATION |
86120-60260 |
— | ||
|
86120
|
86120
86120-60410
Receiver Assy, Radio
[10.2000 - 08.2001] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3726,50TH ANNIVERSARY & TYPE E:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60410 |
— | ||
|
86120
|
86120
86120-60580
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3916,TYPE G:REFER TO ILLUSTRATION & AM/FM/LW CASSETTE CD AUTO CHANGER |
86120-60580 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60581
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3916,TYPE G:REFER TO ILLUSTRATION & AM/FM/LW CASSETTE CD AUTO CHANGER |
86120-60581 |
— | ||
|
86120
|
86120
86120-60630
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3735,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60630 |
— | ||
| replacement | |||||
|
86120
|
86120
86120-60631
Receiver Assy, Radio
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX PIONEER,ID=P3735,TYPE H:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
86120-60631 |
— | ||
|
86170
|
86170
86170-20050 Switch And Volume Assy, Radio[01.1998 - 08.2000] HDJ100,UZJ100 |
86170-20050 |
US $123.76 |
||
|
86170
|
86170
86170-60020
Switch And Volume Assy, Radio
[08.2000 - 08.2002] HDJ100,UZJ100..VX |
86170-60020 |
— | ||
|
86174
|
86174
86174-20010 Case, Switch & Volume[01.1998 - 08.2002] HDJ100,UZJ100..VX |
86174-20010 |
US $65.81 |
||
|
86211
|
86211
86211-60070
Bracket, Radio, No.1
[01.1998 - 08.1998] HDJ100,UZJ100 |
86211-60070 |
— | ||
| replacement | |||||
|
86211
|
86211
86211-60071
Bracket, Radio, No.1
[01.1998 - 08.1998] HDJ100,UZJ100 |
86211-60071 |
— | ||
|
86211
|
86211
86211-60071
Bracket, Radio, No.1
[08.1998 - 08.2002] HDJ100,UZJ100 |
86211-60071 |
— | ||
|
86211
|
86211
86211-60091
Bracket, Radio, No.1
[08.2000 - 08.2001] HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX W(ELECTRO MULTI VISION, NAVIGATION SYSTEM) |
86211-60091 |
— | ||
|
86212
|
86212
86212-60070
Bracket, Radio, No.2
[01.1998 - 08.1998] HDJ100,UZJ100 |
86212-60070 |
— | ||
| replacement | |||||
|
86212
|
86212
86212-60071
Bracket, Radio, No.2
[01.1998 - 08.1998] HDJ100,UZJ100 |
86212-60071 |
— | ||
|
86212
|
86212
86212-60071
Bracket, Radio, No.2
[08.1998 - 08.2002] HDJ100,UZJ100 |
86212-60071 |
— | ||
|
86212
|
86212
86212-60091 Bracket, Radio, No.2[08.2000 - 08.2001] HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX W(ELECTRO MULTI VISION, NAVIGATION SYSTEM) |
86212-60091 |
US $9.90 |
||
|
86273
|
86273
86273-60030 Magazine, Disc PlayerDISC PLAYER [01.1998 - 08.2002] HDJ100,UZJ100..VX |
86273-60030 |
US $101.92 |
||
|
86275A
|
86275A
86270-60040 Changer, Disc PlayerDISC PLAYER [01.1998 - 08.2002] HDJ100,UZJ100..LHD..VX |
86270-60040 |
US $2,518.88 |
||
|
86280
|
86280
86280-60240
Amplifier Assy, Stereo Component
[10.2000 - 08.2001] HDJ100,UZJ100..LHD..VX 50TH ANNIVERSARY |
86280-60240 |
— | ||
|
86280
|
86280
86280-60320
Amplifier Assy, Stereo Component
[08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
86280-60320 |
— | ||
|
86280
|
86280
86280-60340
Amplifier Assy, Stereo Component
[08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX W(ELECTRO MULTI VISION) |
86280-60340 |
— | ||
| replacement | |||||
|
86280
|
86280
86280-60341 Amplifier Assy, Stereo ComponentSTEREO COMPONENT [08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX W(ELECTRO MULTI VISION) |
86280-60341 |
US $1,420.24 |
||
|
86285
|
86285
86285-60010 Bracket, Amplifier, No.1[10.2000 - 08.2001] HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX |
86285-60010 |
US $31.89 |
||
|
86285
|
86285
86285-60020 Bracket, Amplifier, No.1[08.2002 - 08.2003] HDJ100,UZJ100..VX |
86285-60020 |
US $33.92 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9014950032
|
9014950032
90149-50032 Screw |
90149-50032 |
from US $1.19 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.70 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.92 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.74 |
||
