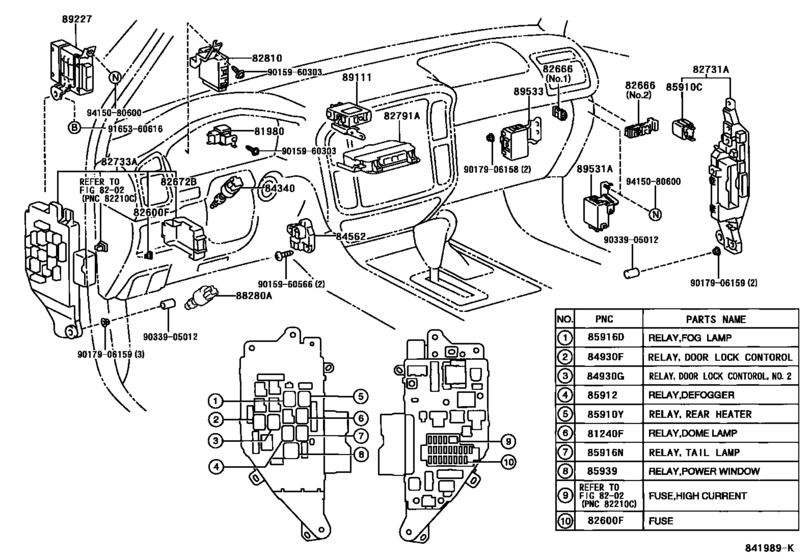

Switch & Relay & Computer ([01.1998 - 08.2002] COWL (9801-0208)LHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2003
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 07.2003
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240F
|
81240F
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-02012 |
from US $26.54 |
||
|
81240F
|
81240F
90987-02022 Relay, Starter Cut[08.2002 - 05.2005] HDJ100,UZJ100 |
90987-02022 |
from US $51.50 |
||
|
81980
|
81980
81980-60030 Flasher Assy, Turn Signal[01.1998 - 08.2002] HDJ100,UZJ100 |
81980-60030 |
from US $75.09 |
||
|
81980
|
81980
81980-60060
Flasher Assy, Turn Signal
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
81980-60060 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2000 - 08.2002] HDJ100,UZJ100 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[01.1998 - 08.2000] HDJ100,UZJ100 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82666
|
82666
82666-35040 Holder, Connector No.4[01.1998 - 08.2002] HDJ100,UZJ100..LHD N0.1 |
82666-35040 |
US $2.33 |
||
|
82666
|
82666
82666-60080 Holder, Connector[01.1998 - 08.2000] HDJ100,UZJ100 NO.2 |
82666-60080 |
US $9.17 |
||
|
82672B
|
82672B
82672-60010 Cover, Junction Block[01.1998 - 08.2000] HDJ100,UZJ100 |
82672-60010 |
US $13.40 |
||
|
82672B
|
82672B
82672-60011 Cover, Junction Block[08.2000 - 08.2002] HDJ100,UZJ100 |
82672-60011 |
US $13.40 |
||
|
82672B
|
82672B
82672-60040 Cover, Junction BlockJUNCTION BLOCK [08.2002 - 05.2005] HDJ100,UZJ100..LHD LH |
82672-60040 |
US $13.54 |
||
| replacement | |||||
|
82672B
|
82672B
82672-60042
Cover, Junction Block
[08.2002 - 05.2005] HDJ100,UZJ100..LHD LH |
82672-60042 |
— | ||
|
82672B
|
82672B
82672-60050 Cover, Junction BlockJUNCTION BLOCK [08.2002 - 05.2005] HDJ100,UZJ100..LHD RH |
82672-60050 |
US $13.54 |
||
| replacement | |||||
|
82672B
|
82672B
82672-60052
Cover, Junction Block
[08.2002 - 05.2005] HDJ100,UZJ100..LHD RH |
82672-60052 |
— | ||
|
82731A
|
82731A
82731-60030 Block, Cowl Side Junction, Rh[01.1998 - 08.2002] HDJ100,UZJ100 |
82731-60030 |
US $168.90 |
||
|
82731A
|
82731A
82731-60060
Block, Cowl Side Junction, Rh
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
82731-60060 |
— | ||
|
82733A
|
82733A
82733-60030
Block, Cowl Side Junction, Lh
[01.1998 - 08.1998] HDJ100,UZJ100 |
82733-60030 |
— | ||
|
82733A
|
82733A
82733-60031
Block, Cowl Side Junction, Lh
[08.1998 - 08.2000] HDJ100,UZJ100 |
82733-60031 |
— | ||
|
82733A
|
82733A
82733-60032
Block, Cowl Side Junction, Lh
[08.2000 - 08.2002] HDJ100,UZJ100 |
82733-60032 |
— | ||
|
82733A
|
82733A
82733-60190
Block, Cowl Side Junction, Lh
[08.2002 - 07.2003] HDJ100..LHD..4FC |
82733-60190 |
— | ||
|
82733A
|
82733A
82733-60210 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [08.2002 - 07.2003] HDJ100..LHD..4FC W(DOUBLE-LOCK) |
82733-60210 |
US $693.06 |
||
|
82733A
|
82733A
82733-60230 Block, Cowl Side Junction, LhCOWL SIDE JUNCTION, LH [08.2002 - 07.2003] HDJ100..LHD..4FC W(DAY TIME RUNNING LIGHT SYSTEM) |
82733-60230 |
US $693.06 |
||
|
82733A
|
82733A
82733-60250
Block, Cowl Side Junction, Lh
[08.2002 - 07.2003] HDJ100..LHD..4FC W(DAY TIME RUNNING LIGHT SYSTEM & DOUBLE-LOCK) |
82733-60250 |
— | ||
|
82791A
|
82791A
82791-60010
Controller & Junction, Instrument Panel
[01.1998 - 07.1999] HDJ100,UZJ100 W(FRONT SEAT=MEMORY POWER SEPARATE SEAT) |
82791-60010 |
— | ||
|
82791A
|
82791A
82791-60011 Controller & Junction, Instrument PanelINSTRUMENT PANEL [07.1999 - 08.2002] HDJ100,UZJ100..VX W(FRONT SEAT=MEMORY POWER SEPARATE SEAT) |
82791-60011 |
US $436.80 |
||
|
82791A
|
82791A
82791-60020
Controller & Junction, Instrument Panel
[01.1998 - 07.1999] HDJ100,UZJ100 |
82791-60020 |
— | ||
|
82791A
|
82791A
82791-60021
Controller & Junction, Instrument Panel
[07.1999 - 08.2002] HDJ100,UZJ100 |
82791-60021 |
— | ||
|
82791A
|
82791A
82791-60031 Controller & Junction, Instrument PanelINSTRUMENT PANEL [08.2000 - 08.2001] HDJ100,UZJ100..LHD..VX 50TH ANNIVERSARY |
82791-60031 |
US $436.80 |
||
|
82810
|
82810
82810-60070
Relay Assy, Running Light
[01.1998 - 08.2002] HDJ100,UZJ100..LHD..VX |
82810-60070 |
— | ||
|
84340
|
84340
84340-32110 Switch Assy, Stop Lamp[01.1998 - 05.2000] HDJ100,UZJ100 |
84340-32110 |
US $59.55 |
||
| replacement | |||||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[01.1998 - 05.2000] HDJ100,UZJ100 |
84340-42020 |
from US $20.40 |
||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[05.2000 - 08.2002] HDJ100,UZJ100..VX |
84340-42020 |
from US $20.40 |
||
|
84930F
|
84930F
90987-04004 Relay, Starter Cut[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-04004 |
from US $47.21 |
||
|
84930G
|
84930G
90987-04004 Relay, Starter Cut[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-04004 |
from US $47.21 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[01.1998 - 08.2002] HDJ100,UZJ100 |
90987-04002 |
from US $24.32 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[08.2002 - 05.2005] HDJ100,UZJ100 |
90987-04010 |
from US $47.21 |
||
|
85910Y
|
85910Y
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2002] HDJ100,UZJ100 |
90987-02012 |
from US $26.54 |
||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-02012 |
from US $26.54 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[08.2002 - 05.2005] HDJ100,UZJ100 |
90987-04004 |
from US $47.21 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2002] HDJ100,UZJ100..VX |
90987-02012 |
from US $26.54 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-02012 |
from US $26.54 |
||
|
85939
|
85939
90987-02009 Relay Assy[01.1998 - 08.2000] HDJ100,UZJ100 |
90987-02009 |
from US $26.15 |
||
|
89111
|
89111
89111-60010
Computer, Network Gateway
[08.2000 - 08.2001] HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX |
89111-60010 |
— | ||
|
89111
|
89111
89111-60030 Computer, Network Gateway[08.2002 - 05.2005] HDJ100,UZJ100..VX |
89111-60030 |
US $286.54 |
||
|
89227
|
89227
89227-60020 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [01.1998 - 07.1999] HDJ100,UZJ100..LHD |
89227-60020 |
US $429.52 |
||
| replacement | |||||
|
89227
|
89227
89227-60022 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [01.1998 - 07.1999] HDJ100,UZJ100..LHD |
89227-60022 |
US $459.51 |
||
|
89227
|
89227
89227-60021 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [07.1999 - 08.2000] HDJ100,UZJ100..LHD |
89227-60021 |
US $473.20 |
||
| replacement | |||||
|
89227
|
89227
89227-60022 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [07.1999 - 08.2000] HDJ100,UZJ100..LHD |
89227-60022 |
US $459.51 |
||
|
89227
|
89227
89227-60022 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [08.2000 - 08.2002] HDJ100,UZJ100..LHD..VX |
89227-60022 |
US $459.51 |
||
|
89227
|
89227
89227-60060 Computer, Multiplex Tilt & TelescopicMULTIPLEX TILT & TELESCOPIC [08.2002 - 05.2005] HDJ100,UZJ100..LHD..VX |
89227-60060 |
US $430.98 |
||
|
89531A
|
89531A
89531-60050 Relay, Transmission ControlTRANSMISSION CONTROL [01.1998 - 08.2002] HDJ100,UZJ100..LHD |
89531-60050 |
US $200.46 |
||
|
89533
|
89533
89533-60090
Computer, 4 Wheel Drive Control
[01.1998 - 08.2002] HDJ100,UZJ100 |
89533-60090 |
— | ||
|
89533
|
89533
89533-60210
Computer, 4 Wheel Drive Control
[08.2002 - 05.2005] HDJ100,UZJ100..LHD |
89533-60210 |
— | ||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015960566
|
9015960566
90159-60566 New Genuine Part |
90159-60566 |
US $1.46 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.81 |
||
|
9165360616
|
9165360616
91653-60616
New Genuine Part
|
91653-60616 |
— | ||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
