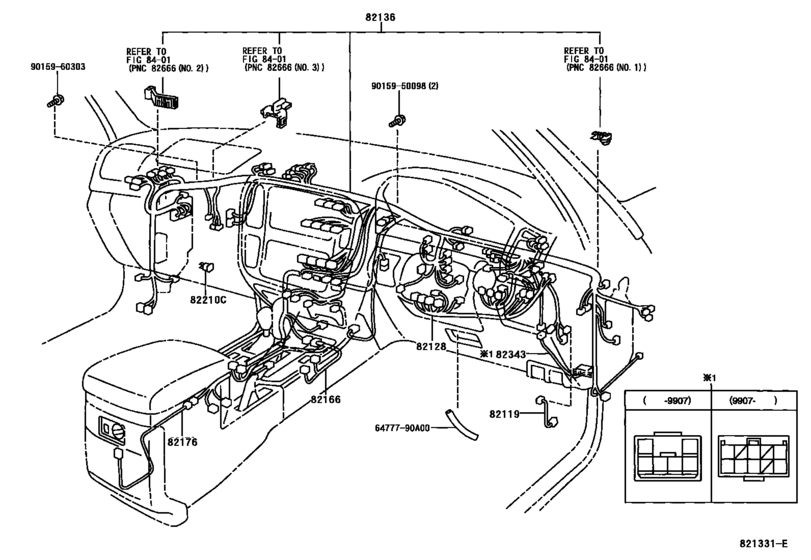

Wiring & Clamp ([01.1998 - 08.2002] COWL (9801-0208)LHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2003
- Sales region
- Europe
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 07.2003
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82119
|
82119
82219-60040 Wire, SensorSENSOR [01.1998 - 08.2002] HDJ100..LHD |
82219-60040 |
US $12.23 |
||
|
82128
|
82128
82128-60010 Wire, ColumnCOLUMN [01.1998 - 07.1999] HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY ADJUST SYSTEM) |
82128-60010 |
US $180.54 |
||
|
82128
|
82128
82128-60011 Wire, ColumnCOLUMN [07.1999 - 08.2000] HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
82128-60011 |
US $196.56 |
||
|
82128
|
82128
82128-60012 Wire, ColumnCOLUMN [08.2000 - 08.2001] HDJ100,UZJ100..LHD..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
82128-60012 |
US $196.56 |
||
|
82128
|
82128
82128-60013 Wire, ColumnCOLUMN [08.2001 - 08.2002] HDJ100,UZJ100..LHD..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
82128-60013 |
US $196.56 |
||
|
82128
|
82128
82128-60014
Wire, Column
[08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
82128-60014 |
— | ||
| replacement | |||||
|
82128
|
82128
82128-60015
Wire, Column
[08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
82128-60015 |
— | ||
|
82128
|
82128
82128-60100 Wire, ColumnCOLUMN [01.1998 - 07.1999] HDJ100,UZJ100..LHD |
82128-60100 |
US $141.23 |
||
|
82128
|
82128
82128-60101 Wire, ColumnCOLUMN [07.1999 - 08.2000] HDJ100,UZJ100..LHD |
82128-60101 |
US $123.76 |
||
|
82128
|
82128
82128-60102 Wire, ColumnCOLUMN [08.2000 - 08.2001] HDJ100,UZJ100..LHD..VX |
82128-60102 |
US $123.76 |
||
|
82128
|
82128
82128-60103 Wire, ColumnCOLUMN [08.2002 - 08.2003] HDJ100,UZJ100..LHD..VX |
82128-60103 |
US $168.90 |
||
|
82128
|
82128
82128-60110 Wire, ColumnCOLUMN [01.1998 - 07.1999] HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
82128-60110 |
US $180.54 |
||
|
82128
|
82128
82128-60111 Wire, ColumnCOLUMN [07.1999 - 08.2000] HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) |
82128-60111 |
US $168.90 |
||
|
82128
|
82128
82128-60112 Wire, ColumnCOLUMN [08.2000 - 08.2001] HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
82128-60112 |
US $168.90 |
||
|
82128
|
82128
82128-60113 Wire, ColumnCOLUMN [08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX W(MEMORY POWER SEAT) |
82128-60113 |
US $196.56 |
||
|
82128
|
82128
82128-60120 Wire, ColumnCOLUMN [08.2001 - 08.2002] HDJ100,UZJ100..LHD..VX |
82128-60120 |
US $123.76 |
||
|
82128
|
82128
82128-60140 Wire, ColumnCOLUMN [08.2001 - 08.2002] HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
82128-60140 |
US $168.90 |
||
|
82128
|
82128
82128-60190 Wire, ColumnCOLUMN [01.1998 - 07.1999] HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
82128-60190 |
US $122.30 |
||
|
82128
|
82128
82128-60191 Wire, ColumnCOLUMN [07.1999 - 08.2000] HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
82128-60191 |
US $123.76 |
||
|
82128
|
82128
82128-60192 Wire, ColumnCOLUMN [08.2000 - 08.2001] HDJ100,UZJ100..LHD..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
82128-60192 |
US $123.76 |
||
|
82128
|
82128
82128-60193 Wire, ColumnCOLUMN [08.2001 - 08.2002] HDJ100,UZJ100..LHD..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
82128-60193 |
US $123.76 |
||
|
82128
|
82128
82128-60194 Wire, ColumnCOLUMN [08.2002 - 08.2003] UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
82128-60194 |
US $123.76 |
||
|
82136
|
82136
82136-60160 Wire, DashDASH [01.1998 - 07.1999] HDJ100..LHD |
82136-60160 |
US $1,994.72 |
||
|
82136
|
82136
82136-60161 Wire, DashDASH [07.1999 - 08.2000] HDJ100..LHD |
82136-60161 |
US $2,256.80 |
||
|
82136
|
82136
82136-60162 Wire, DashDASH [08.2000 - 08.2001] HDJ100..LHD..VX; HDJ100..STD W(FRONT SEPARATE SEAT) |
82136-60162 |
US $2,256.80 |
||
|
82136
|
82136
82136-60170
Wire, Dash
[01.1998 - 07.1999] HDJ100..LHD W(AUTOMATIC AIR CONDITIONER) |
82136-60170 |
— | ||
|
82136
|
82136
82136-60171 Wire, DashDASH [07.1999 - 08.2000] HDJ100..LHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
82136-60171 |
US $2,256.80 |
||
|
82136
|
82136
82136-60172 Wire, DashDASH [08.2000 - 08.2001] HDJ100..LHD..VX W(SINGLE AUTOMATIC AIR CONDITIONER) |
82136-60172 |
US $2,256.80 |
||
|
82136
|
82136
82136-60174 Wire, DashDASH [08.2002 - 07.2003] HDJ100..LHD..4FC |
82136-60174 |
US $2,256.80 |
||
|
82136
|
82136
82136-60520 Wire, DashDASH [10.2000 - 08.2001] HDJ100..LHD..VX W(ELECTRO MULTI VISION) |
82136-60520 |
US $2,256.80 |
||
|
82136
|
82136
82136-60630 Wire, DashDASH [08.2001 - 08.2002] HDJ100..LHD..VX |
82136-60630 |
US $2,256.80 |
||
|
82136
|
82136
82136-60640 Wire, DashDASH [08.2001 - 08.2002] HDJ100..LHD..VX W(SINGLE AUTOMATIC AIR CONDITIONER) |
82136-60640 |
US $2,256.80 |
||
|
82136
|
82136
82136-60840 Wire, DashDASH [08.2002 - 07.2003] HDJ100..LHD..4FC W(AMPLIFIER) |
82136-60840 |
US $2,256.80 |
||
|
82136
|
82136
82136-60850 Wire, DashDASH [08.2002 - 07.2003] HDJ100..LHD..4FC W(ELECTRO MULTI VISION) |
82136-60850 |
US $2,256.80 |
||
|
82166
|
82166
82166-60140 Wire, Console BoxCONSOLE BOX [01.1998 - 07.1999] HDJ100,UZJ100..LHD..4FC |
82166-60140 |
US $141.23 |
||
|
82166
|
82166
82166-60141 Wire, Console BoxCONSOLE BOX [07.1999 - 08.2000] HDJ100,UZJ100..LHD..4FC |
82166-60141 |
US $123.76 |
||
|
82166
|
82166
82166-60142 Wire, Console BoxCONSOLE BOX [08.2000 - 08.2002] HDJ100,UZJ100..LHD..4FC |
82166-60142 |
US $123.76 |
||
|
82176
|
82176
82176-60020 Wire, Rr Console Box[01.1998 - 07.1999] HDJ100,UZJ100 |
82176-60020 |
US $23.88 |
||
|
82176
|
82176
82176-60021 Wire, Rr Console Box[07.1999 - 08.2000] UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F SOUTH AFRICA SPEC |
82176-60021 |
US $19.66 |
||
|
82176
|
82176
82176-60022 Wire, Rr Console Box[08.2000 - 08.2002] HDJ100..STD; UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F..VX SOUTH AFRICA SPEC |
82176-60022 |
US $19.66 |
||
|
82176
|
82176
82176-60050 Wire, Rr Console BoxRR CONSOLE BOX [07.1999 - 08.2000] HDJ100,UZJ100 |
82176-60050 |
US $52.12 |
||
|
82176
|
82176
82176-60051 Wire, Rr Console BoxRR CONSOLE BOX [08.2000 - 08.2002] HDJ100,UZJ100..VX |
82176-60051 |
US $45.72 |
||
|
82176
|
82176
82176-60052 Wire, Rr Console Box[08.2002 - 05.2005] HDJ100,UZJ100 |
82176-60052 |
US $19.66 |
||
|
82176
|
82176
82176-60060 Wire, Rr Console BoxRR CONSOLE BOX [08.2002 - 05.2005] HDJ100,UZJ100..VX W(REAR SEAT AUDIO) |
82176-60060 |
US $30.87 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08286 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82210C
|
82210C
90982-08290 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 60A |
90982-08290 |
US $8.59 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[01.1998 - 08.2002] HDJ100,UZJ100 80A |
90982-08291 |
US $7.88 |
||
|
82343
|
82343
82343-60010 Wire, Detector[01.1998 - 07.1999] HDJ100,UZJ100 |
82343-60010 |
US $35.38 |
||
|
82343
|
82343
82343-60011 Wire, Detector[07.1999 - 08.2000] HDJ100,UZJ100 |
82343-60011 |
US $11.79 |
||
|
82343
|
82343
82343-60012
Wire, Detector
[08.2000 - 08.2001] HDJ100,UZJ100 |
82343-60012 |
— | ||
|
6477790A00
|
6477790A00
64777-90A00
Protector, Quarter, Inner
|
64777-90A00 |
— | ||
| replacement | |||||
|
6477790A00
|
6477790A00
64777-60030 Protector, Sun Roof Headlining, Center |
64777-60030 |
US $4.27 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
