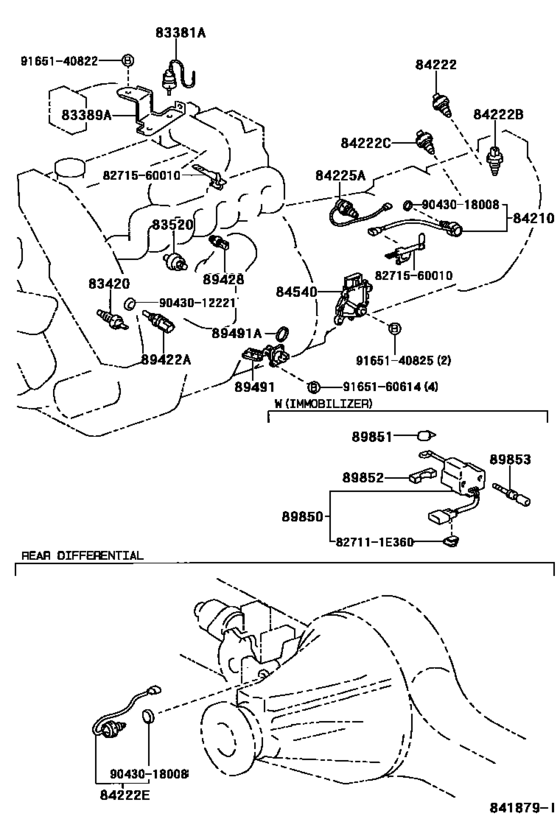

Switch & Relay & Computer ([01.1998 - ] ENGINE & TRANSMISSION (9801- )HDJ100) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
83420-16040 |
from US $28.76 |
||
|
83520
|
83520
83520-35030
Gage Assy,oil Pressure Sender
[08.2002 - 09.2004] HDJ100,HZJ105 |
83520-35030 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[08.2002 - 09.2004] HDJ100,HZJ105 |
83520-35032 |
from US $41.50 |
||
|
83520
|
83520
83520-35031 Gage Assy,oil Pressure Sender[09.2004 - 05.2005] HDJ100,HZJ105 |
83520-35031 |
US $36.55 |
||
| replacement | |||||
|
83520
|
83520
83520-35032 Gage Assy,oil Pressure Sender[09.2004 - 05.2005] HDJ100,HZJ105 |
83520-35032 |
from US $41.50 |
||
|
84210
|
84210
84210-60030 Switch Assy, Back-Up Lamp[08.2002 - 08.2003] FZJ100,HDJ100,UZJ100..ATM |
84210-60030 |
from US $30.07 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
84222-12010 |
from US $54.43 |
||
|
84222B
|
84222B
84222-60081 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] FZJ100,HDJ100,UZJ100..ATM..(ARL,GCC,GEN) |
84222-60081 |
from US $41.61 |
||
|
84222C
|
84222C
84222-12010 Switch, Transfer Indicator, No.1[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
84222-12010 |
from US $54.43 |
||
|
84222E
|
84222E
84222-60090 Switch, Differential Lock Indicator[08.2002 - 05.2005] FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
84222-60090 |
from US $52.55 |
||
|
84540
|
84540
84540-51010 Switch Assy, Neutral Start[08.2002 - 05.2005] HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
84540-51010 |
from US $139.48 |
||
|
89491
|
89491
89491-60060 Sensor, Engine Oil Level[08.2002 - 05.2005] HDJ100,HZJ105..ARL,GCC |
89491-60060 |
from US $156.27 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[08.2002 - 05.2005] UZJ100..GCC,GEN;HDJ100,HZJ105..ARL,GCC |
89493-60010 |
from US $2.51 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
8271560010
|
8271560010
82715-60010
Bracket,wiring Harness Clamp
|
82715-60010 |
— | ||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.07 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9165140822
|
9165140822
91651-40822 New Genuine Part |
91651-40822 |
US $1.05 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
from US $1.72 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
