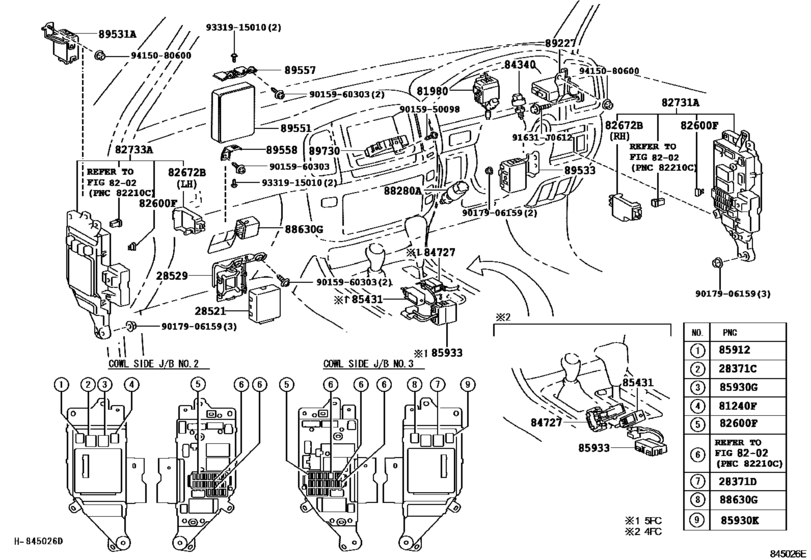

Switch & Relay & Computer ([08.2002 - ] COWL (0208- )RHD) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371C
|
28371C
90987-02025 Relay[08.2002 - 05.2005] 1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90987-02025 |
from US $49.22 |
||
|
28371D
|
28371D
90987-02025 Relay[08.2002 - 05.2005] 1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90987-02025 |
from US $49.22 |
||
|
81240F
|
81240F
90987-02022 Relay, Starter Cut[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90987-02022 |
from US $51.50 |
||
|
81980
|
81980
81980-60050
Flasher Assy, Turn Signal
[08.2002 - 05.2005] HDJ100,HZJ105,UZJ100..ARL |
81980-60050 |
— | ||
|
82600F
|
82600F
90982-09008 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82672B
|
82672B
82672-60030 Cover, Junction Block[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
82672-60030 |
US $13.10 |
||
|
82672B
|
82672B
82672-60031 Cover, Junction Block[05.2005 -] FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
82672-60031 |
US $13.54 |
||
|
82672B
|
82672B
82672-60060 Cover, Junction Block[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
82672-60060 |
US $13.10 |
||
|
82731A
|
82731A
82731-60170
Block, Cowl Side Junction, Rh
[08.2002 - 05.2005] FZJ105,HZJ105..RHD..GX..GEN W(ANTI-THEFT DEVICE:IMMOBILIZER & SECURITY SYSTEM) & W(POWER WINDOW); HDJ100,HZJ105,UZJ100..GX..ARL W(KEY LESS ENTRY & POWER WINDOW); HDJ100,UZJ100..RHD..VX W(KEY LESS ENTRY) OR W(KEY LESS ENTRY & POWER WIND |
82731-60170 |
— | ||
|
82731A
|
82731A
82731-60180 Block, Cowl Side Junction, RhCOWL SIDE JUNCTION, RH [08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
82731-60180 |
US $658.11 |
||
|
82733A
|
82733A
82733-60130 Block, Cowl Side Junction, Lh[08.2002 - 12.2003] FZJ105,HDJ100,HZJ105,UZJ100..RHD |
82733-60130 |
US $658.69 |
||
|
82733A
|
82733A
82733-60131 Block, Cowl Side Junction, Lh[12.2003 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD |
82733-60131 |
US $693.06 |
||
|
84340
|
84340
84340-42020 Switch Assy, Stop Lamp[08.2002 - 05.2005] HDJ100,UZJ100..ARL,GCC,GEN W(CRUISE CONTROL) |
84340-42020 |
from US $20.40 |
||
|
84340
|
84340
84340-47020 Switch Assy, Stop Lamp[05.2005 -] HDJ100,UZJ100..ARL,GCC,GEN W(CRUISE CONTROL) |
84340-47020 |
from US $49.57 |
||
|
84727
|
84727
84727-53020
Switch, Shift Lock Control
[07.2004 - 05.2005] HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
84727-53020 |
— | ||
|
85431
|
85431
85431-35090 Solenoid, Shift Lock[07.2004 - 05.2005] HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
85431-35090 |
US $39.84 |
||
|
85912
|
85912
90987-04004 Relay, Starter Cut[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90987-04004 |
from US $47.21 |
||
|
85930G
|
85930G
90987-02025 Relay[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
90987-02025 |
from US $49.22 |
||
|
85933
|
85933
85933-60080 Computer, Shift Lock Control[07.2004 - 05.2005] HDJ100,UZJ100..5FC..(ARL,GCC,GEN) |
85933-60080 |
US $110.66 |
||
|
89227
|
89227
89227-60070 Computer, Multiplex Tilt & Telescopic[08.2002 - 05.2005] HDJ100,UZJ100..RHD..VX |
89227-60070 |
US $430.98 |
||
|
89531A
|
89531A
89531-60040 Relay, Transmission Control[08.2002 - 05.2005] HZJ105..GX..ARL;HZJ105..RHD..GEN;FZJ105,HDJ100,UZJ100..RHD |
89531-60040 |
US $220.15 |
||
|
89533
|
89533
89533-60200
Computer, 4 Wheel Drive Control
[08.2002 - 05.2005] HDJ100,UZJ100..RHD |
89533-60200 |
— | ||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
