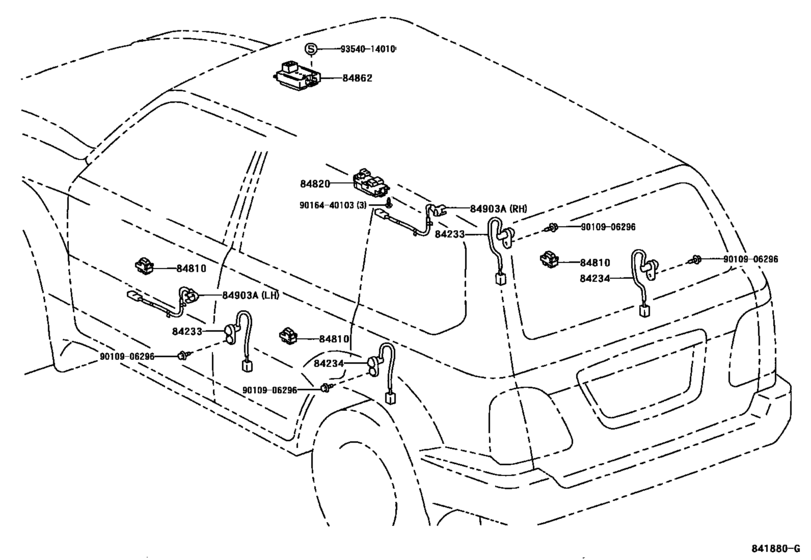

Switch & Relay & Computer ([01.1998 - ] DOOR & ROOF (9801- )RHD) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-60070 Switch, Courtesy Lamp[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
84231-60070 |
from US $11.83 |
||
|
84810
|
84810
84030-60060 Switch Assy, Power Window RegulatorPOWER WINDOW REGULATOR [08.2002 - 05.2005] FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
84030-60060 |
from US $180.54 |
||
|
84820
|
84820
84040-60080
Master Switch Assy, Power Window Regulator
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
84040-60080 |
— | ||
| replacement | |||||
|
84820
|
84820
84040-60081 Master Switch Assy, Power Window Regulator[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
84040-60081 |
from US $478.92 |
||
|
84820
|
84820
84040-60081 Master Switch Assy, Power Window Regulator[08.2005 - 08.2007] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
84040-60081 |
from US $478.92 |
||
|
84862
|
84862
84862-60020-A1
Switch, Slide Roof Motor
[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
84862-60020-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60020-B1 Switch, Slide Roof Motor[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
84862-60020-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-A1
Switch, Slide Roof Motor
[10.2005 - 08.2007] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
84862-60021-A1 |
— | ||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
84862-60021-B0 |
US $82.12 |
||
|
84862
|
84862
84862-60021-B1 Switch, Slide Roof Motor[10.2005 - 08.2007] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
84862-60021-B1 |
US $84.45 |
||
| replacement | |||||
|
84862
|
84862
84862-60021-B0 Switch, Slide Roof Motor[10.2005 - 08.2007] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) STONE,TRIM1# |
84862-60021-B0 |
US $82.12 |
||
|
84903A
|
84903A
84903-60080 Switch Sub-Assy, Door Unlock[08.2002 - 05.2005] HDJ100,HZJ105,UZJ100..LUB..ARL BACK DOOR |
84903-60080 |
US $43.51 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
