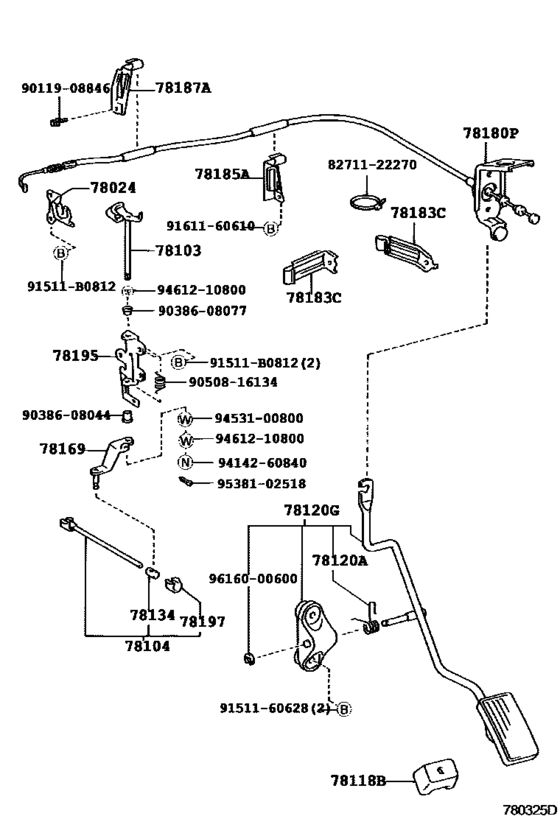

Accelerator Link ([01.1998 - 08.2002] (9801-0208)HDJ100..RHD..GEN) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-60010 Bracket Sub-Assy, Accelerator Control Cable[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78024-60010 |
US $20.61 |
||
|
78103
|
78103
78103-60022 Rod Sub-Assy, Accelerator Connecting, No.1[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78103-60022 |
from US $7.57 |
||
|
78104
|
78104
78104-60010 Rod Sub-Assy, Accelerator Connecting, No.2[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78104-60010 |
from US $6.49 |
||
|
78118B
|
78118B
78118-60010 Stopper, Accelerator Pedal[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD |
78118-60010 |
US $4.80 |
||
|
78120A
|
78120A
90959-03184 Spring, Compression (For Accelerator Link Rod)[01.1998 - 08.2002] UZJ100;FZJ105,HDJ100,HZJ105..RHD..5F..(DSL2,EFI,TD2) |
90959-03184 |
US $4.22 |
||
|
78120G
|
78120G
78120-60230 Rod Assy, Accelerator Pedal[01.1998 - 12.1999] HDJ100,UZJ100..RHD;FZJ105,HZJ105..RHD..5F |
78120-60230 |
US $40.91 |
||
| replacement | |||||
|
78120G
|
78120G
78120-60231
Rod Assy, Accelerator Pedal
[01.1998 - 12.1999] HDJ100,UZJ100..RHD;FZJ105,HZJ105..RHD..5F |
78120-60231 |
— | ||
|
78120G
|
78120G
78120-60231
Rod Assy, Accelerator Pedal
[12.1999 - 08.2002] FZJ105,HZJ105..RHD..5F;HDJ100,UZJ100..RHD..(EFI,TD2) |
78120-60231 |
— | ||
|
78134
|
78134
78134-10010 End, Accelerator Connecting Rod[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78134-10010 |
US $2.27 |
||
|
78169
|
78169
78169-60010 Hanger, Accelerator Spring[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78169-60010 |
US $4.12 |
||
|
78180P
|
78180P
78150-60040
Cable Assy, Accelerator Control
[01.1998 - 08.2002] HDJ100..GEN W(CRUISE CONTROL),FOR ACTUATOR |
78150-60040 |
— | ||
|
78180P
|
78180P
78180-60540 Cable Assy, Accelerator ControlACCELERATOR CONTROL [01.1998 - 08.2000] HDJ100..RHD W/O(CRUISE CONTROL) & W(ABS) |
78180-60540 |
US $59.55 |
||
|
78180P
|
78180P
78180-60610
Cable Assy, Accelerator Control
[01.1998 - 08.2002] HDJ100..RHD..GEN |
78180-60610 |
— | ||
|
78183C
|
78183C
78183-60160 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [01.1998 - 08.2002] HDJ100..RHD..GEN W(ABS) |
78183-60160 |
US $10.19 |
||
|
78183C
|
78183C
78183-60170 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [01.1998 - 08.2002] HDJ100..RHD..GEN |
78183-60170 |
US $11.36 |
||
|
78185A
|
78185A
78185-60120 Clamp, Accelerator Control Cable, No.2[01.1998 - 10.1998] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(ABS) |
78185-60120 |
US $12.67 |
||
|
78187A
|
78187A
78187-60020 Clamp, Accelerator Control Cable, No.4ACCELERATOR CONTROL CABLE, NO.4 [01.1998 - 08.2002] HDJ100..RHD..GEN |
78187-60020 |
US $7.43 |
||
|
78195
|
78195
78195-60011 Bracket, Accelerator Link[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78195-60011 |
US $5.42 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
78197-10010 |
from US $1.25 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9011908846
|
9011908846
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.25 |
||
|
9038608044
|
9038608044
90386-08044 BUSH |
90386-08044 |
from US $1.97 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.60 |
||
|
9050816134
|
9050816134
90508-16134 Spring, Clamp, No.4 |
90508-16134 |
US $1.24 |
||
|
9151160628
|
9151160628
91511-60628 BOLT FLANGE |
91511-60628 |
US $0.87 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9414260840
|
9414260840
94142-60840 NUTSOLOTTED |
94142-60840 |
US $0.96 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.84 |
||
