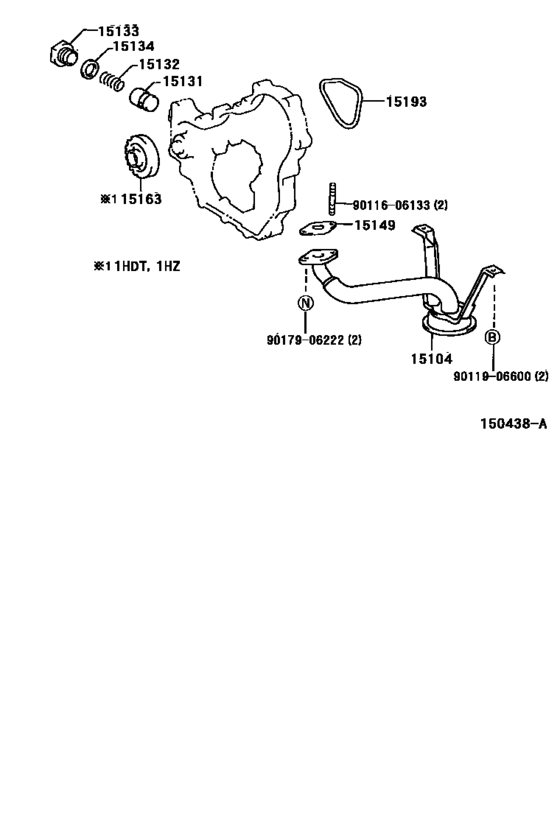

Engine Oil Pump ([01.1998 - ] (9801- )1HD#,1HZ) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-17070 Strainer Sub-Assy, Oil[01.1998 - 08.2002] 1HD#..HDJ100 |
15104-17070 |
US $129.29 |
||
|
15131
|
15131
15131-17010 Valve, Oil Pump Relief[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
15131-17010 |
from US $3.45 |
||
|
15132
|
15132
15132-17010 Spring, Oil Pump Relief Valve[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
15132-17010 |
from US $1.23 |
||
|
15133
|
15133
15133-17010 Plug, Oil Pump Relief Valve[01.1998 - 08.2002] 1FZFE..FZJ10#; 1HD#,1HZ..HDJ100,HZJ105 |
15133-17010 |
from US $1.87 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
15134-67020 |
from US $1.70 |
||
|
15149
|
15149
15149-17010 Gasket, Oil Strainer Flange[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
15149-17010 |
from US $0.92 |
||
|
15163
|
15163
15163-17010 Gear, Oil Pump Drive Shaft[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
15163-17010 |
from US $29.17 |
||
|
15193
|
15193
15193-17010 Gasket, Oil Pump[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
15193-17010 |
from US $1.81 |
||
|
9011606133
|
9011606133
90116-06133 BOLT STUD |
90116-06133 |
from US $0.86 |
||
|
9011906600
|
9011906600
90119-06600 Bolt |
90119-06600 |
US $2.87 |
||
|
9017906222
|
9017906222
90179-06222 NUT |
90179-06222 |
from US $1.07 |
