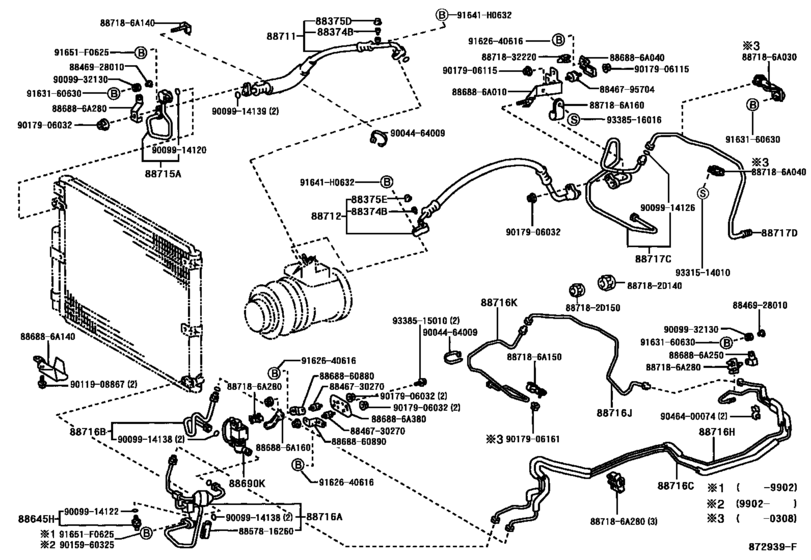

Heating & Air Conditioning - Cooler Piping ([01.1998 - ] FRONT(DUAL AIR CON. & COOL BOX) (9801- )HDJ100..RHD..GEN) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100 |
88374-30010 |
from US $3.12 |
||
|
88375D
|
88375D
88375-30280 Cap, Service Valve (For Cooler Pipe)[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100 |
88375-30280 |
from US $0.98 |
||
|
88375E
|
88375E
88375-30290 Cap, Service Valve (For Cooler Pipe)[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100 |
88375-30290 |
from US $0.88 |
||
|
88645H
|
88645H
88645-34010 Switch, Pressure[01.1998 - 02.1998] FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER) |
88645-34010 |
from US $32.78 |
||
| replacement | |||||
|
88645H
|
88645H
88645-04040 Switch, Pressure[01.1998 - 02.1998] FZJ105..GX;HZJ105..GCC,GEN;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,UZJ100 W(SINGLE AIR CONDITIONER) |
88645-04040 |
US $120.41 |
||
|
88645H
|
88645H
88645-60030 Switch, Pressure No.1[01.1998 - 06.2000] FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER) |
88645-60030 |
from US $85.26 |
||
|
88690K
|
88690K
88690-60210
Valve Assy, Magnet
[01.1998 - 06.1998] HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX) |
88690-60210 |
— | ||
| replacement | |||||
|
88690K
|
88690K
88690-60230 Valve Assy, Magnet[01.1998 - 06.1998] HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX) |
88690-60230 |
from US $206.60 |
||
|
88690K
|
88690K
88690-60230 Valve Assy, Magnet[06.1998 - 07.1999] HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX) |
88690-60230 |
from US $206.60 |
||
|
88711
|
88711
88711-60430 Hose, Cooler Refrigerant Discharge, No.1[01.1998 - 08.2002] HDJ100 |
88711-60430 |
US $187.82 |
||
| replacement | |||||
|
88711
|
88711
88711-60431 Hose, Cooler Refrigerant Discharge, No.1[01.1998 - 08.2002] HDJ100 |
88711-60431 |
from US $189.35 |
||
|
88712
|
88712
88704-60210
Hose, Cooler Refrigerant Suction, No.1
[01.1998 - 08.2002] HDJ100..GEN W(COOL BOX OR DUAL AIR CONDITIONER) |
88704-60210 |
— | ||
|
88715A
|
88715A
88715-60140 Pipe, Cooler Refrigerant Discharge, A[01.1998 - 10.1998] HDJ100 |
88715-60140 |
US $63.77 |
||
|
88715A
|
88715A
88715-60141
Pipe, Cooler Refrigerant Discharge, A
[10.1998 - 08.2002] HDJ100 |
88715-60141 |
— | ||
|
88716A
|
88716A
88716-6A850 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 07.1999] HDJ100,UZJ100..ARL,GEN W(SINGLE AIR CONDITIONER),NO.1 |
88716-6A850 |
from US $34.83 |
||
|
88716A
|
88716A
88726-60420 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 09.1998] HDJ100,UZJ100..ARL,GEN W(SINGLE AIR CONDITIONER),NO.2 |
88726-60420 |
US $68.43 |
||
| replacement | |||||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 09.1998] HDJ100,UZJ100..ARL,GEN W(SINGLE AIR CONDITIONER),NO.2 |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60421 Pipe, Cooler Refrigerant Liquid, A[09.1998 - 07.1999] HDJ100,UZJ100..ARL,GEN W(SINGLE AIR CONDITIONER),NO.2 |
88726-60421 |
US $83.64 |
||
|
88716A
|
88716A
88726-60430
Pipe, Cooler Refrigerant Liquid, A
[01.1998 - 08.2002] HDJ100,UZJ100..LUB..(EFI,TD2)..(ARL,GEN) W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
88726-60430 |
— | ||
|
88716A
|
88716A
88726-60460 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 09.1998] FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER) |
88726-60460 |
US $97.55 |
||
| replacement | |||||
|
88716A
|
88716A
88726-60461
Pipe, Cooler Refrigerant Liquid, A
[01.1998 - 09.1998] FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER) |
88726-60461 |
— | ||
|
88716A
|
88716A
88726-60461
Pipe, Cooler Refrigerant Liquid, A
[09.1998 - 10.1998] FZJ100,HDJ100,UZJ100..GX,VX W(DUAL AIR CONDITIONER) |
88726-60461 |
— | ||
|
88716A
|
88716A
88726-60462 Pipe, Cooler Refrigerant Liquid, A[10.1998 - 08.2002] FZJ100,HDJ100,UZJ100..(GX,VX)..(EFI,TD2) W(DUAL AIR CONDITIONER) |
88726-60462 |
from US $79.68 |
||
|
88716A
|
88716A
88726-60670 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 10.1998] HDJ100..LUB;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60670 |
US $116.48 |
||
|
88716A
|
88716A
88726-60671 Pipe, Cooler Refrigerant Liquid, A[10.1998 - 08.2002] HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60671 |
from US $136.93 |
||
|
88716A
|
88716A
88726-60690
Pipe, Cooler Refrigerant Liquid, A
[01.1998 - 09.1998] FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH) |
88726-60690 |
— | ||
| replacement | |||||
|
88716A
|
88716A
88726-60691
Pipe, Cooler Refrigerant Liquid, A
[01.1998 - 09.1998] FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH) |
88726-60691 |
— | ||
|
88716A
|
88716A
88726-60691
Pipe, Cooler Refrigerant Liquid, A
[09.1998 - 10.1998] FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH) |
88726-60691 |
— | ||
|
88716A
|
88716A
88726-60692 Pipe, Cooler Refrigerant Liquid, A[10.1998 - 08.2002] FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) W(DUAL AIR CONDITIONER & WINCH) |
88726-60692 |
US $101.92 |
||
|
88716A
|
88716A
88726-60700 Pipe, Cooler Refrigerant Liquid, A[01.1998 - 10.1998] HDJ100..LUB;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
88726-60700 |
US $109.20 |
||
|
88716A
|
88716A
88726-60701 Pipe, Cooler Refrigerant Liquid, A[10.1998 - 08.2002] HDJ100..LUB..GEN;FZJ100,UZJ100..LHD..(GX,VX) W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
88726-60701 |
US $163.07 |
||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[01.1998 - 07.1999] HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(COOL BOX & SINGLE AIR CONDITIONER) |
88726-60440 |
from US $30.34 |
||
|
88716B
|
88716B
88726-60680
Pipe, Cooler Refrigerant Liquid, B
[01.1998 - 08.2002] HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60680 |
— | ||
| replacement | |||||
|
88716B
|
88716B
88726-60440 Pipe, Cooler Refrigerant Liquid, B[01.1998 - 08.2002] HDJ100..LUB..GEN;FZJ100,UZJ100..GX,VX W(COOL BOX & DUAL AIR CONDITIONER) |
88726-60440 |
from US $30.34 |
||
|
88716C
|
88716C
88726-60500 Pipe, Cooler Refrigerant Liquid, C[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
88726-60500 |
US $144.14 |
||
|
88716H
|
88716H
88726-60510 Pipe, Cooler Refrigerant Liquid, H[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
88726-60510 |
US $147.06 |
||
|
88716J
|
88716J
88726-60540 Pipe, Cooler Refrigerant Liquid, J[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
88726-60540 |
US $77.17 |
||
|
88716J
|
88716J
88726-60590 Pipe, Cooler Refrigerant Liquid, K[04.1998 - 06.1998] FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(COOL BOX OR DUAL AIR CONDITIONER) |
88726-60590 |
US $75.71 |
||
|
88716K
|
88716K
88726-60590 Pipe, Cooler Refrigerant Liquid, K[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
88726-60590 |
US $75.71 |
||
|
88717C
|
88717C
88717-6A160
Pipe, Cooler Refrigerant Suction, C
[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
88717-6A160 |
— | ||
|
88717D
|
88717D
88717-6A110
Pipe, Cooler Refrigerant Suction, D
[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
88717-6A110 |
— | ||
|
91641H0632
|
91641H0632
91641-H0632 BOLT WWASHER |
91641-H0632 |
US $1.60 |
||
|
91651F0625
|
91651F0625
91651-F0625 BOLT WWASHER |
91651-F0625 |
US $1.43 |
||
|
886886A010
|
886886A010
88688-6A010
Bracket, Cooler Diaphragm
|
88688-6A010 |
— | ||
|
886886A040
|
886886A040
88688-6A040
Bracket, Cooler Diaphragm
|
88688-6A040 |
— | ||
| replacement | |||||
|
886886A040
|
886886A040
88688-6A041
Bracket, Cooler Diaphragm
|
88688-6A041 |
— | ||
|
886886A140
|
886886A140
88688-6A140
Bracket, Cooler Diaphragm
|
88688-6A140 |
— | ||
|
886886A160
|
886886A160
88688-6A160
Bracket, Cooler Diaphragm
|
88688-6A160 |
— | ||
|
886886A250
|
886886A250
88688-6A250
Bracket, Cooler Diaphragm
|
88688-6A250 |
— | ||
|
886886A280
|
886886A280
88688-6A280
Bracket, Cooler Diaphragm
|
88688-6A280 |
— | ||
|
886886A380
|
886886A380
88688-6A380
Bracket, Cooler Diaphragm
|
88688-6A380 |
— | ||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
887186A030
|
887186A030
88718-6A030
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A030 |
— | ||
| replacements | |||||
|
887186A030
|
887186A030
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
887186A030
|
887186A030
88718-6A460
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A460 |
— | ||
|
887186A030
|
887186A030
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
887186A040
|
887186A040
88718-6A040
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A040 |
— | ||
|
887186A140
|
887186A140
88718-6A140
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A140 |
— | ||
|
887186A150
|
887186A150
88718-6A150 Pipe, Cooler Refrigerant Suction, No.2 |
88718-6A150 |
US $8.74 |
||
|
887186A160
|
887186A160
88718-6A160
Clamp(For Cooler Refrigerant Pipe), No.5
|
88718-6A160 |
— | ||
|
887186A280
|
887186A280
88718-6A280
Pipe, Cooler Refrigerant Suction, No.2
|
88718-6A280 |
— | ||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8846795704
|
8846795704
88467-95704 Cushion, Cooler Condenser, No.1 |
88467-95704 |
US $3.72 |
||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8857816260
|
8857816260
88578-16260
Packing, Cooling Unit, No.4
|
88578-16260 |
— | ||
| replacement | |||||
|
8857816260
|
8857816260
88578-26120
Packing, Cooling Unit, No.4
|
88578-26120 |
— | ||
|
8868860880
|
8868860880
88688-60880
Bracket, Cooler Diaphragm
|
88688-60880 |
— | ||
|
8868860890
|
8868860890
88688-60890
Bracket, Cooler Diaphragm
|
88688-60890 |
— | ||
|
8871832220
|
8871832220
88718-32220 Clamp(For Cooler Refrigerant Pipe), No.2 |
88718-32220 |
from US $1.46 |
||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
from US $1.79 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.21 |
||
|
9009914126
|
9009914126
90099-14126 OIL SEAL |
90099-14126 |
from US $1.62 |
||
|
9009914138
|
9009914138
90099-14138 ORING |
90099-14138 |
US $5.56 |
||
|
9009914139
|
9009914139
90099-14139 ORING |
90099-14139 |
US $2.18 |
||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011908867
|
9011908867
90119-08867 BOLT WWASHER |
90119-08867 |
US $1.97 |
||
|
9015960325
|
9015960325
90159-60325 SCREW WWASHER |
90159-60325 |
US $0.96 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.92 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9163160630
|
9163160630
91631-60630 BOLT WWASHER |
91631-60630 |
US $1.75 |
||
| replacement | |||||
|
9163160630
|
9163160630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.69 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
