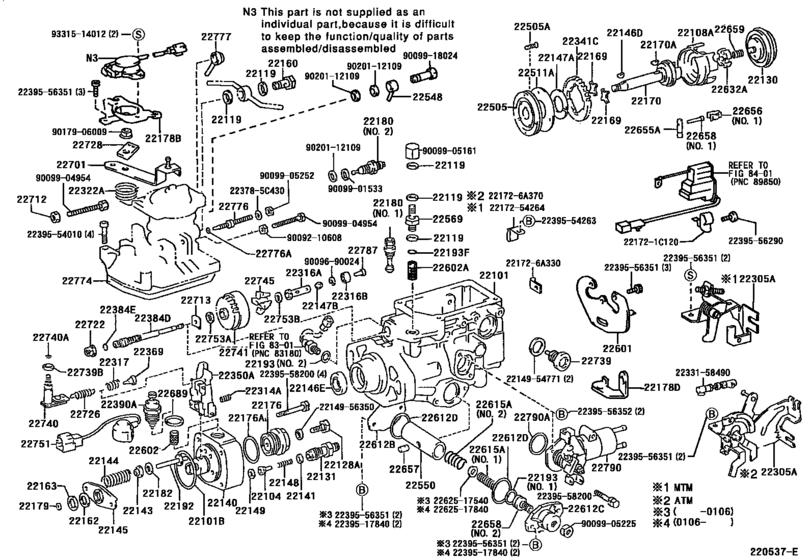

Injection Pump Body ([01.1998 - 08.2002] (9801-0208)1HDT) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-17160
Housing Sub-Assy, Injection Pump
[01.1998 - 06.2001] 1HDT..HDJ100 W(HIGH ALTITUDE COMPENSATOR) |
22101-17160 |
— | ||
|
22101
|
22101
22101-17840 Housing Sub-Assy, Injection Pump[06.2001 - 08.2002] 1HDT..HDJ100 |
22101-17840 |
US $219.20 |
||
|
22101
|
22101
22101-54260
Housing Sub-Assy, Injection Pump
[01.1998 - 06.2001] 1HDT..HDJ100 |
22101-54260 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-17540 Valve Sub-Assy, Injection Pump Delivery[01.1998 - 08.2002] 1HDT..HDJ100 |
22104-17540 |
US $41.06 |
||
|
22108A
|
22108A
22108-17140
Ring Sub-Assy, Roller
[01.1998 - 08.2002] 1HDT..HDJ100 |
22108-17140 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90201-12109 |
from US $1.29 |
||
|
22128A
|
22128A
22128-56330
Bolt, Distributive Head
[01.1998 - 08.2002] 1HDT..HDJ100 |
22128-56330 |
— | ||
|
22130
|
22130
22130-17540 Camplate Sub-Assy, Face[01.1998 - 08.2002] 1HDT..HDJ100 |
22130-17540 |
US $97.60 |
||
|
22131
|
22131
22131-17420
Holder, Delivery Valve
[01.1998 - 08.2002] 1HDT..HDJ100 |
22131-17420 |
— | ||
|
22140
|
22140
22140-17140 Head Sub-Assy, Distributive Pump[01.1998 - 08.2002] 1HDT..HDJ100 |
22140-17140 |
US $424.53 |
||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[01.1998 - 08.2002] 1HDT..HDJ100 |
22141-54010 |
— | ||
|
22143
|
22143
22143-56350
Seat, Spring Upper
[01.1998 - 08.2002] 1HDT..HDJ100 |
22143-56350 |
— | ||
|
22144
|
22144
22144-17140
Spring, Pump Plunger
[01.1998 - 08.2002] 1HDT..HDJ100 |
22144-17140 |
— | ||
|
22145
|
22145
22145-56350
Seat, Spring, Lower
[01.1998 - 08.2002] 1HDT..HDJ100 |
22145-56350 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22544-64740 |
US $4.23 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22147-54290 |
— | ||
|
22148
|
22148
22148-5B250 Spring, Delivery Valve[01.1998 - 08.2002] 1HDT..HDJ100 |
22148-5B250 |
US $0.84 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-56350
Screw Sub-Assy, Overflow
[01.1998 - 08.2002] 1HDT..HDJ100 |
22160-56350 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22169-54180 |
— | ||
|
22170
|
22170
22170-56350
Shaft Sub-Assy, Drive
[01.1998 - 08.2002] 1HDT..HDJ100 |
22170-56350 |
— | ||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-13017 |
US $9.03 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22193-54772 |
from US $2.97 |
||
|
22178D
|
22178D
22178-1C120
Bracket, Idle Up
[01.1998 - 08.2000] 1HZ..HZJ105..ARL;1H#..HDJ100,HZJ105..(GX,VX)..GEN |
22178-1C120 |
— | ||
|
22179
|
22179
22179-17010
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.92 |
22179-17010 |
— | ||
|
22179
|
22179
22179-17011
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.94 |
22179-17011 |
— | ||
|
22179
|
22179
22179-17012
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.96 |
22179-17012 |
— | ||
|
22179
|
22179
22179-17013
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.98 |
22179-17013 |
— | ||
|
22179
|
22179
22179-17014
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.02 |
22179-17014 |
— | ||
|
22179
|
22179
22179-17015
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.04 |
22179-17015 |
— | ||
|
22179
|
22179
22179-17016
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.06 |
22179-17016 |
— | ||
|
22179
|
22179
22179-17017
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.08 |
22179-17017 |
— | ||
|
22179
|
22179
22179-17018
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.12 |
22179-17018 |
— | ||
|
22179
|
22179
22179-17019
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.14 |
22179-17019 |
— | ||
|
22179
|
22179
22179-17020
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.16 |
22179-17020 |
— | ||
|
22179
|
22179
22179-17021
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.18 |
22179-17021 |
— | ||
|
22179
|
22179
22179-17022
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.22 |
22179-17022 |
— | ||
|
22179
|
22179
22179-17023
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.24 |
22179-17023 |
— | ||
|
22179
|
22179
22179-17024
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.26 |
22179-17024 |
— | ||
|
22179
|
22179
22179-17025
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.28 |
22179-17025 |
— | ||
|
22179
|
22179
22179-17026
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.32 |
22179-17026 |
— | ||
|
22179
|
22179
22179-17027
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.34 |
22179-17027 |
— | ||
|
22179
|
22179
22179-17028 Shim, Plunger Adjusting[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.36 |
22179-17028 |
US $1.99 |
||
|
22179
|
22179
22179-17029
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.38 |
22179-17029 |
— | ||
|
22179
|
22179
22179-17030
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.42 |
22179-17030 |
— | ||
|
22179
|
22179
22179-17031
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.44 |
22179-17031 |
— | ||
|
22179
|
22179
22179-17032
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.46 |
22179-17032 |
— | ||
|
22179
|
22179
22179-17033
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.48 |
22179-17033 |
— | ||
|
22179
|
22179
22179-17034
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.52 |
22179-17034 |
— | ||
|
22179
|
22179
22179-17035
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.54 |
22179-17035 |
— | ||
|
22179
|
22179
22179-17036
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.56 |
22179-17036 |
— | ||
|
22179
|
22179
22179-17037
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.58 |
22179-17037 |
— | ||
|
22179
|
22179
22179-17038
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.62 |
22179-17038 |
— | ||
|
22179
|
22179
22179-17039
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.64 |
22179-17039 |
— | ||
|
22179
|
22179
22179-17040
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.66 |
22179-17040 |
— | ||
|
22179
|
22179
22179-17041 Shim, Plunger Adjusting[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.68 |
22179-17041 |
US $1.99 |
||
|
22179
|
22179
22179-17042
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.72 |
22179-17042 |
— | ||
|
22179
|
22179
22179-17043
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.74 |
22179-17043 |
— | ||
|
22179
|
22179
22179-17044
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.76 |
22179-17044 |
— | ||
|
22179
|
22179
22179-17045
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.78 |
22179-17045 |
— | ||
|
22179
|
22179
22179-17046
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.82 |
22179-17046 |
— | ||
|
22179
|
22179
22179-17047
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.84 |
22179-17047 |
— | ||
|
22179
|
22179
22179-17048
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.86 |
22179-17048 |
— | ||
|
22179
|
22179
22179-17049
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.88 |
22179-17049 |
— | ||
|
22179
|
22179
22179-17050
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.95 |
22179-17050 |
— | ||
|
22179
|
22179
22179-17051
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.00 |
22179-17051 |
— | ||
|
22179
|
22179
22179-17052
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.05 |
22179-17052 |
— | ||
|
22179
|
22179
22179-17053
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.10 |
22179-17053 |
— | ||
|
22179
|
22179
22179-17054
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=3.15 |
22179-17054 |
— | ||
|
22179
|
22179
22179-17055
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.20 |
22179-17055 |
— | ||
|
22179
|
22179
22179-17056
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.91 |
22179-17056 |
— | ||
|
22179
|
22179
22179-17057
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.93 |
22179-17057 |
— | ||
|
22179
|
22179
22179-17058
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.97 |
22179-17058 |
— | ||
|
22179
|
22179
22179-17059
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.99 |
22179-17059 |
— | ||
|
22179
|
22179
22179-17060
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.01 |
22179-17060 |
— | ||
|
22179
|
22179
22179-17061
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.03 |
22179-17061 |
— | ||
|
22179
|
22179
22179-17062
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.07 |
22179-17062 |
— | ||
|
22179
|
22179
22179-17063
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.09 |
22179-17063 |
— | ||
|
22179
|
22179
22179-17064
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.11 |
22179-17064 |
— | ||
|
22179
|
22179
22179-17065
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.13 |
22179-17065 |
— | ||
|
22179
|
22179
22179-17066
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.17 |
22179-17066 |
— | ||
|
22179
|
22179
22179-17067
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.19 |
22179-17067 |
— | ||
|
22179
|
22179
22179-17068
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.21 |
22179-17068 |
— | ||
|
22179
|
22179
22179-17069
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.23 |
22179-17069 |
— | ||
|
22179
|
22179
22179-17070
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.27 |
22179-17070 |
— | ||
|
22179
|
22179
22179-17071
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.29 |
22179-17071 |
— | ||
|
22179
|
22179
22179-17072
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.31 |
22179-17072 |
— | ||
|
22179
|
22179
22179-17073
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.33 |
22179-17073 |
— | ||
|
22179
|
22179
22179-17074
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.37 |
22179-17074 |
— | ||
|
22179
|
22179
22179-17075
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.39 |
22179-17075 |
— | ||
|
22179
|
22179
22179-17076
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.41 |
22179-17076 |
— | ||
|
22179
|
22179
22179-17077
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.43 |
22179-17077 |
— | ||
|
22179
|
22179
22179-17078
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.47 |
22179-17078 |
— | ||
|
22179
|
22179
22179-17079
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.49 |
22179-17079 |
— | ||
|
22179
|
22179
22179-17080
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.51 |
22179-17080 |
— | ||
|
22179
|
22179
22179-17081
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.53 |
22179-17081 |
— | ||
|
22179
|
22179
22179-17082
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.57 |
22179-17082 |
— | ||
|
22179
|
22179
22179-17083
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.59 |
22179-17083 |
— | ||
|
22179
|
22179
22179-17084
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.61 |
22179-17084 |
— | ||
|
22179
|
22179
22179-17085
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.63 |
22179-17085 |
— | ||
|
22179
|
22179
22179-17086
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.67 |
22179-17086 |
— | ||
|
22179
|
22179
22179-17087
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.69 |
22179-17087 |
— | ||
|
22179
|
22179
22179-17088
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.71 |
22179-17088 |
— | ||
|
22179
|
22179
22179-17089
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.73 |
22179-17089 |
— | ||
|
22179
|
22179
22179-17090
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.77 |
22179-17090 |
— | ||
|
22179
|
22179
22179-17091
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.79 |
22179-17091 |
— | ||
|
22179
|
22179
22179-17092
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.81 |
22179-17092 |
— | ||
|
22179
|
22179
22179-17093
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.83 |
22179-17093 |
— | ||
|
22179
|
22179
22179-17094
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.87 |
22179-17094 |
— | ||
|
22179
|
22179
22179-17095
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.89 |
22179-17095 |
— | ||
|
22179
|
22179
22179-17096
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.91 |
22179-17096 |
— | ||
|
22179
|
22179
22179-17097
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.92 |
22179-17097 |
— | ||
|
22179
|
22179
22179-17098
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.93 |
22179-17098 |
— | ||
|
22179
|
22179
22179-17099
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.96 |
22179-17099 |
— | ||
|
22179
|
22179
22179-17100
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.97 |
22179-17100 |
— | ||
|
22179
|
22179
22179-17101
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.98 |
22179-17101 |
— | ||
|
22179
|
22179
22179-17102
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=3.01 |
22179-17102 |
— | ||
|
22179
|
22179
22179-17103
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.02 |
22179-17103 |
— | ||
|
22179
|
22179
22179-17104
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.03 |
22179-17104 |
— | ||
|
22179
|
22179
22179-17105
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.06 |
22179-17105 |
— | ||
|
22179
|
22179
22179-17106
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=3.07 |
22179-17106 |
— | ||
|
22179
|
22179
22179-17107
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.08 |
22179-17107 |
— | ||
|
22179
|
22179
22179-17108
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.11 |
22179-17108 |
— | ||
|
22179
|
22179
22179-17109
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.12 |
22179-17109 |
— | ||
|
22179
|
22179
22179-17110
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=3.13 |
22179-17110 |
— | ||
|
22179
|
22179
22179-17111
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.16 |
22179-17111 |
— | ||
|
22179
|
22179
22179-17112
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.17 |
22179-17112 |
— | ||
|
22179
|
22179
22179-17113
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.18 |
22179-17113 |
— | ||
|
22179
|
22179
22179-17140
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=1.95 |
22179-17140 |
— | ||
|
22179
|
22179
22179-17141
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.05 |
22179-17141 |
— | ||
|
22179
|
22179
22179-17142
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.15 |
22179-17142 |
— | ||
|
22179
|
22179
22179-17143
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.25 |
22179-17143 |
— | ||
|
22179
|
22179
22179-17144
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.35 |
22179-17144 |
— | ||
|
22179
|
22179
22179-17145
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.45 |
22179-17145 |
— | ||
|
22179
|
22179
22179-17146
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.55 |
22179-17146 |
— | ||
|
22179
|
22179
22179-17147
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.65 |
22179-17147 |
— | ||
|
22179
|
22179
22179-17148
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.75 |
22179-17148 |
— | ||
|
22179
|
22179
22179-17149
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.85 |
22179-17149 |
— | ||
|
22179
|
22179
22179-17150
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.94 |
22179-17150 |
— | ||
|
22179
|
22179
22179-17151
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=2.99 |
22179-17151 |
— | ||
|
22179
|
22179
22179-17152
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.04 |
22179-17152 |
— | ||
|
22179
|
22179
22179-17153
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.09 |
22179-17153 |
— | ||
|
22179
|
22179
22179-17154
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100..5F T=3.14 |
22179-17154 |
— | ||
|
22179
|
22179
22179-17155
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=3.19 |
22179-17155 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-17140
Valve Sub-Assy, Regulator
[01.1998 - 08.2002] 1HDT..HDJ100 NO.2 |
22180-17140 |
— | ||
|
22180
|
22180
22180-17540
Valve Sub-Assy, Regulator
[01.1998 - 08.2002] 1HDT..HDJ100 NO.1 |
22180-17540 |
— | ||
|
22180
|
22180
22180-17881
Valve Sub-Assy, Regulator
[01.1998 - 08.2002] 1HDT..HDJ100 W(ENGINE IMMOBILIZER SYSTEM),NO.2 |
22180-17881 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=2.0 |
22188-54010 |
US $4.25 |
||
|
22192
|
22192
22192-56350
Guide Sub-Assy, Plunger Spring
[01.1998 - 08.2002] 1HDT..HDJ100 |
22192-56350 |
— | ||
|
22193
|
22193
22193-17020 Ring, O(For Lever Connecting Pin)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 NO.1 |
22193-17020 |
from US $1.44 |
||
|
22193
|
22193
22193-55031
Ring, O(For Lever Connecting Pin)
[01.1998 - 08.1999] 1H#..HDJ100,HZJ105..GEN NO.3 |
22193-55031 |
— | ||
|
22193
|
22193
22193-64750 Ring, O(For Lever Connecting Pin)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 NO.2 |
22193-64750 |
from US $0.84 |
||
|
22193F
|
22193F
22193-5B320 Ring, O(For Fuel Injection Pump Filter)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22193-5B320 |
from US $1.44 |
||
|
22305A
|
22305A
22305-17140
Idle-Up Sub-Assy
[01.1998 - 08.2002] 1HDT..HDJ100..5F |
22305-17140 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-17543
Sleeve, Governor
[01.1998 - 08.2002] 1HDT..HDJ100..LUB..5F MARK 157; 1HDT..HDJ100..SOB MARK 157,PHILIPPINES SPEC |
22316-17543 |
— | ||
|
22316A
|
22316A
22316-17544
Sleeve, Governor
[01.1998 - 08.2002] 1HDT..HDJ100..LUB..5F MARK 158; 1HDT..HDJ100..SOB MARK 158,PHILIPPINES SPEC |
22316-17544 |
— | ||
|
22316A
|
22316A
22316-17545
Sleeve, Governor
[01.1998 - 08.2002] 1HDT..HDJ100..LUB..5F MARK 159; 1HDT..HDJ100..SOB MARK 159,PHILIPPINES SPEC |
22316-17545 |
— | ||
|
22316A
|
22316A
22316-17560
Sleeve, Governor
[01.1998 - 08.2002] 1HDT..HDJ100..5F MARK 163 |
22316-17560 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-10148 |
— | ||
|
22317
|
22317
22317-54730
Spring, Governor Domper
[01.1998 - 08.2002] 1HDT..HDJ100 K=0.15,L=7.3 |
22317-54730 |
— | ||
|
22322A
|
22322A
22322-54020
Spring, Return
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105..5F |
22322-54020 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-17550
Governor Assy, Torque Control
[01.1998 - 08.2002] 1HDT..HDJ100 |
22350-17550 |
— | ||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22369-54010 |
— | ||
|
22384D
|
22384D
22380-54020 Shaft, Governor[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22380-54020 |
US $29.35 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[01.1998 - 02.2000] 1HDT..HDJ100 W(HIGH ALTITUDE COMPENSATOR) |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-14049 |
US $2.20 |
||
|
22390A
|
22390A
22390-6A511 Solenoid Assy, Fuel Cut[01.1998 - 08.2000] 1H#..HDJ100,HZJ105..GCC,GEN |
22390-6A511 |
from US $108.33 |
||
|
22390A
|
22390A
22390-6D810 Solenoid Assy, Fuel CutFUEL CUT [01.1998 - 08.2000] 1HZ..HZJ105..ARL;1H#..HDJ100,HZJ105..(GX,VX)..GEN W(ENGINE IMMOBILIZER SYSTEM) |
22390-6D810 |
US $183.22 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22511-58650 |
US $14.55 |
||
|
22548
|
22548
22548-17160
Nipple, Swivel
[01.1998 - 08.2002] 1HDT..HDJ100 |
22548-17160 |
— | ||
|
22550
|
22550
22550-17420
Piston Assy, Timer
[01.1998 - 06.2001] 1HDT..HDJ100 |
22550-17420 |
— | ||
|
22550
|
22550
22550-17840
Piston Assy, Timer
[06.2001 - 08.2002] 1HDT..HDJ100 |
22550-17840 |
— | ||
|
22569
|
22569
22569-17140 Screw, Overflow[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22569-17140 |
from US $9.75 |
||
|
22601
|
22601
22601-17140
Bracket Sub-Assy, Idle Up
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22601-17140 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22602-56350 |
from US $10.31 |
||
|
22602A
|
22602A
22602-5B320 Filter Sub-Assy, Fuel Injection Pump, No.2[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22602-5B320 |
from US $14.51 |
||
|
22612B
|
22612B
22612-17840
Cover, Timer
[06.2001 - 08.2002] 1HDT..HDJ100 |
22612-17840 |
— | ||
|
22612B
|
22612B
22612-56350
Cover, Timer
[01.1998 - 06.2001] 1HDT,1HZ..HDJ100,HZJ105 |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17020
Cover, Timer
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22612-17020 |
— | ||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22193-17840 |
from US $2.71 |
||
|
22615A
|
22615A
22615-17030
Spring, Timer Outer
[01.1998 - 06.2001] 1HDT,1HZ..HDJ100,HZJ105 K=1.7,L=27.9,NO.2 |
22615-17030 |
— | ||
|
22615A
|
22615A
22615-17550 Spring, Timer Outer[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 K=1.96,NO.1 |
22615-17550 |
US $1.54 |
||
|
22615A
|
22615A
22615-17551
Spring, Timer Outer
[01.1998 - 08.2002] 1HDT..HDJ100 K=2.16,NO.1 |
22615-17551 |
— | ||
|
22615A
|
22615A
22615-17552
Spring, Timer Outer
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 K=1.77,NO.1 |
22615-17552 |
— | ||
|
22615A
|
22615A
22615-17553
Spring, Timer Outer
[01.1998 - 08.2002] 1HDT..HDJ100 K=1.57,NO.1 |
22615-17553 |
— | ||
|
22615A
|
22615A
22615-17841
Spring, Timer Outer
[06.2001 - 08.2002] 1HDT..HDJ100 K=5.7 |
22615-17841 |
— | ||
|
22632A
|
22632A
22632-56350 Coupling, Injection Pump[01.1998 - 08.2002] 1HDT..HDJ100 |
22632-56350 |
US $35.22 |
||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22655-54010 |
— | ||
|
22656
|
22656
22656-17840
Clip, Timer
[01.1998 - 08.2002] 1HDT..HDJ100 NO.1; 1HZ..HZJ105 |
22656-17840 |
— | ||
|
22656
|
22656
22656-54490
Clip, Timer
[01.1998 - 08.2002] 1HDT..HDJ100 NO.2 |
22656-54490 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22657-54010 |
— | ||
|
22658
|
22658
22658-17020
Stopper, Timer
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 NO.2 |
22658-17020 |
— | ||
|
22658
|
22658
22658-17840
Stopper, Timer
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 NO.1 |
22658-17840 |
— | ||
|
22659
|
22659
22659-17140
Spring, Coupling
[01.1998 - 08.2002] 1HDT..HDJ100 |
22659-17140 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-17010 Lever Sub-Assy, Adjusting[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105..5F MARK 383 |
22701-17010 |
US $9.78 |
||
|
22701
|
22701
22701-17011
Lever Sub-Assy, Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105..5F MARK 384 |
22701-17011 |
— | ||
|
22701
|
22701
22701-56350 Lever Sub-Assy, Adjusting[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105..5F MARK 247 |
22701-56350 |
US $8.74 |
||
|
22712
|
22712
22775-77121
Nut, Rock
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22775-77121 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 T=1.85 |
22717-54010 |
US $7.04 |
||
|
22722
|
22722
22722-54470
Nut, Governor Shaft Rock
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22722-54470 |
— | ||
|
22726
|
22726
22726-56350
Spring, Speed Control
[01.1998 - 08.2002] 1HDT..HDJ100 |
22726-56350 |
— | ||
|
22728
|
22728
22728-54010
Guide, Return Spring
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105..5F |
22728-54010 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22739-54020 |
— | ||
|
22739B
|
22739B
22378-64010 Washer, Governor Thrust[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22378-64010 |
from US $0.42 |
||
|
22740
|
22740
22740-54010
Shaft Sub-Assy, Governor Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100 L=15.5 |
22740-54010 |
— | ||
|
22740
|
22740
22740-58480
Shaft Sub-Assy, Governor Adjusting
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=17.5 |
22740-58480 |
— | ||
|
22740
|
22740
22740-58650
Shaft Sub-Assy, Governor Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100 L=23.4 |
22740-58650 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22193-54770 |
from US $2.03 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22741-54020 |
— | ||
|
22745
|
22745
22745-56350
Flyweight, Distributive Pump
[01.1998 - 08.2002] 1HDT..HDJ100 |
22745-56350 |
— | ||
|
22751
|
22751
22751-17470 Wire Sub-Assy, Fuel Cut Solenoid[01.1998 - 08.2000] 1H#..HDJ100,HZJ105..GCC,GEN |
22751-17470 |
from US $6.14 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22753-54020 |
US $1.58 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-55030
Screw, Smoke Set Adjusting
[01.1998 - 08.2002] 1HDT..HDJ100 |
22776-55030 |
— | ||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
22193-54771 |
US $1.31 |
||
|
22777
|
22777
22777-54261
Cap, Rubber(For Bellows)
[01.1998 - 08.2002] 1HDT..HDJ100 |
22777-54261 |
— | ||
|
22787
|
22787
22787-17140
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.4 |
22787-17140 |
— | ||
|
22787
|
22787
22787-17141
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.6 |
22787-17141 |
— | ||
|
22787
|
22787
22787-17142
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.8 |
22787-17142 |
— | ||
|
22787
|
22787
22787-17143
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.9 |
22787-17143 |
— | ||
|
22787
|
22787
22787-17144
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.0 |
22787-17144 |
— | ||
|
22787
|
22787
22787-17145
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.1 |
22787-17145 |
— | ||
|
22787
|
22787
22787-17146
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.2 |
22787-17146 |
— | ||
|
22787
|
22787
22787-17147
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.3 |
22787-17147 |
— | ||
|
22787
|
22787
22787-17148
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.4 |
22787-17148 |
— | ||
|
22787
|
22787
22787-17149
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.5 |
22787-17149 |
— | ||
|
22787
|
22787
22787-17150
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.6 |
22787-17150 |
— | ||
|
22787
|
22787
22787-17151
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.7 |
22787-17151 |
— | ||
|
22787
|
22787
22787-17152
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.8 |
22787-17152 |
— | ||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.3 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.4 |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-54034
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.3 |
22787-54034 |
— | ||
|
22787
|
22787
22787-54035
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.5 |
22787-54035 |
— | ||
|
22787
|
22787
22787-54036
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=4.7 |
22787-54036 |
— | ||
|
22787
|
22787
22787-56350
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=5.9 |
22787-56350 |
— | ||
|
22787
|
22787
22787-56351
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.0 |
22787-56351 |
— | ||
|
22787
|
22787
22787-56352
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.1 |
22787-56352 |
— | ||
|
22787
|
22787
22787-56353
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.2 |
22787-56353 |
— | ||
|
22787
|
22787
22787-56354
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.3 |
22787-56354 |
— | ||
|
22787
|
22787
22787-56355
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.4 |
22787-56355 |
— | ||
|
22787
|
22787
22787-56356
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.5 |
22787-56356 |
— | ||
|
22787
|
22787
22787-56357
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT..HDJ100 L=6.6 |
22787-56357 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=4.1 |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.0 |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.1 |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=3.2 |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 L=4.2 |
22787-64680 |
— | ||
|
22790
|
22790
22790-17540
Cover Sub-Assy, Timer
[01.1998 - 08.2002] 1HDT..HDJ100..5F |
22790-17540 |
— | ||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[01.1998 - 08.1998] 1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
22193-17840 |
from US $2.71 |
||
|
221721C120
|
221721C120
22172-1C120
Clip, Connector Support, Solenoid
|
22172-1C120 |
— | ||
|
221726A330
|
221726A330
22172-6A330
Clip, Connector Support, Solenoid
|
22172-6A330 |
— | ||
|
221726A370
|
221726A370
22172-6A370
Clip, Connector Support, Solenoid
|
22172-6A370 |
— | ||
|
223785C430
|
223785C430
22378-5C430
Washer, Governor Thrust
|
22378-5C430 |
— | ||
|
2214954771
|
2214954771
22149-54771
Gasket, Delivery Valve
|
22149-54771 |
— | ||
|
2214956350
|
2214956350
22149-56350
Gasket, Delivery Valve
|
22149-56350 |
— | ||
|
2217254264
|
2217254264
22172-54264
Clip, Connector Support, Solenoid
|
22172-54264 |
— | ||
|
2233158490
|
2233158490
22331-58490 Rod Sub-Assy |
22331-58490 |
from US $17.90 |
||
|
2239517840
|
2239517840
22395-17840
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-17840 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239554263
|
2239554263
22395-54263
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-54263 |
— | ||
|
2239556290
|
2239556290
22395-56290
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56290 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2262517540
|
2262517540
22625-17540
Washer, Timer Sensor Adjusting
|
22625-17540 |
— | ||
|
2262517840
|
2262517840
22625-17840
Washer, Timer Sensor Adjusting
|
22625-17840 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009901533
|
9009901533
90099-01533
Washer, Air Bleeder Nipple
|
90099-01533 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009905252
|
9009905252
90099-05252
New Genuine Part
|
90099-05252 |
— | ||
|
9009918024
|
9009918024
90099-18024
New Genuine Part
|
90099-18024 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.29 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
