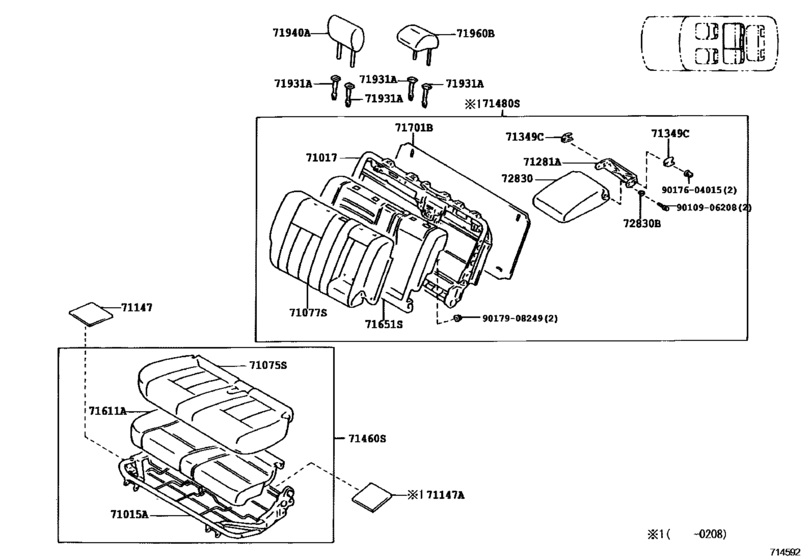

Seat & Seat Track ([01.1998 - ] REAR NO.1 SEAT (TYPE A) (9801- )RHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71015A
|
71015A
71015-60150 Frame Sub-Assy, Rear Seat Cushion, Rh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71015-60150 |
US $452.82 |
||
|
71017
|
71017
71017-60380 Frame Sub-Assy, Rear Seat Back, Rh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX |
71017-60380 |
US $308.67 |
||
|
71075S
|
71075S
71065-60110-A0 Cover, Rear Seat Cushion, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71065-60110-A0 |
US $1,129.86 |
||
| replacement | |||||
|
71075S
|
71075S
71065-60110-A1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71065-60110-A1 |
US $1,131.31 |
||
|
71075S
|
71075S
71065-60110-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71065-60110-B0 |
US $1,129.86 |
||
| replacement | |||||
|
71075S
|
71075S
71065-60110-B1 Cover, Rear Seat Cushion, Rh (For Separate Type)REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71065-60110-B1 |
US $1,131.31 |
||
|
71075S
|
71075S
71065-60240-B0 Cover, Rear Seat Cushion, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
71065-60240-B0 |
US $551.82 |
||
|
71075S
|
71075S
71065-60240-E0 Cover, Rear Seat Cushion, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
71065-60240-E0 |
US $551.82 |
||
|
71077S
|
71077S
71077-6A100-B0 Cover, Rear Seat Back, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
71077-6A100-B0 |
US $662.48 |
||
|
71077S
|
71077S
71077-6A100-E0 Cover, Rear Seat Back, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
71077-6A100-E0 |
US $662.48 |
||
|
71077S
|
71077S
71077-6A110-A0 Cover, Rear Seat Back, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71077-6A110-A0 |
US $1,356.99 |
||
| replacement | |||||
|
71077S
|
71077S
71077-6A110-A1 Cover, Rear Seat Back, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71077-6A110-A1 |
US $1,358.45 |
||
|
71077S
|
71077S
71077-6A110-B0 Cover, Rear Seat Back, Rh (For Separate Type)REAR SEAT BACK, RH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71077-6A110-B0 |
US $1,356.99 |
||
| replacement | |||||
|
71077S
|
71077S
71077-6A110-B1 Cover, Rear Seat Back, Rh (For Separate Type)REAR SEAT BACK, RH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71077-6A110-B1 |
US $1,358.45 |
||
|
71147
|
71147
71147-60010 Silencer, Seat Spring[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)..(DSL2,EFI,TD2) W(REAR NO.1 SEAT=TYPE A:REFER TO ILLUSTRATION) |
71147-60010 |
US $3.93 |
||
|
71147
|
71147
71147-60060 Silencer, Seat Spring[01.1998 - 08.2002] UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX W(REAR NO.1 SEAT=TYPE B:REFER TO ILLUSTRATION) |
71147-60060 |
US $3.93 |
||
|
71147A
|
71147A
71147-60020 Silencer, Rear Seat Spring[01.1998 - 08.1998] FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
71147-60020 |
US $3.49 |
||
|
71281A
|
71281A
71281-60010 Hinge, Rear Seat Center Armrest[01.1998 - 08.2002] HDJ100..VX;UZJ100..LHD |
71281-60010 |
US $26.94 |
||
|
71349C
|
71349C
71349-60040-A0 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN IVORY,TRIM40 |
71349-60040-A0 |
US $14.27 |
||
| replacement | |||||
|
71349C
|
71349C
71349-60040-B1 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN IVORY,TRIM40 |
71349-60040-B1 |
US $14.41 |
||
|
71349C
|
71349C
71349-60040-B0 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] HDJ100,UZJ100..VX MD.GRAY,TRIM1# |
71349-60040-B0 |
US $14.27 |
||
| replacement | |||||
|
71349C
|
71349C
71349-60040-B1 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] HDJ100,UZJ100..VX MD.GRAY,TRIM1# |
71349-60040-B1 |
US $14.41 |
||
|
71349C
|
71349C
71349-60040-E0 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN MD.OAK,TRIM41; HDJ100..SOB;HDJ100..VX..ARL MD.OAK,TRIM4# |
71349-60040-E0 |
US $14.27 |
||
| replacement | |||||
|
71349C
|
71349C
71349-60040-B1 Cover, Rear Seat Back Hinge[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN MD.OAK,TRIM41; HDJ100..SOB;HDJ100..VX..ARL MD.OAK,TRIM4# |
71349-60040-B1 |
US $14.41 |
||
|
71460S
|
71460S
71560-60340-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)REAR SEAT, RH(FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
71560-60340-B0 |
US $1,834.56 |
||
|
71460S
|
71460S
71560-60340-E0 Cushion Assy, Rear Seat, Rh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
71560-60340-E0 |
US $1,834.56 |
||
|
71460S
|
71460S
71560-60470-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
71560-60470-B0 |
US $990.08 |
||
|
71460S
|
71460S
71560-60470-E1 Cushion Assy, Rear Seat, Rh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
71560-60470-E1 |
US $990.08 |
||
|
71480S
|
71480S
71480-6A560-B0 Back Assy, Rear Seat, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
71480-6A560-B0 |
US $1,572.48 |
||
|
71480S
|
71480S
71480-6A560-E1 Back Assy, Rear Seat, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
71480-6A560-E1 |
US $1,572.48 |
||
|
71480S
|
71480S
71480-6A590-B0
Back Assy, Rear Seat, Rh (For Separate Type)
[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
71480-6A590-B0 |
— | ||
|
71480S
|
71480S
71480-6A590-E0 Back Assy, Rear Seat, Rh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
71480-6A590-E0 |
US $2,242.24 |
||
|
71611A
|
71611A
71611-60200 Pad, Rear Seat Cushion, Rh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT) |
71611-60200 |
US $321.78 |
||
|
71611A
|
71611A
71611-60240 Pad, Rear Seat Cushion, Rh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71611-60240 |
US $323.23 |
||
|
71651S
|
71651S
71651-60230 Pad, Rear Seat Back, Rh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX |
71651-60230 |
US $216.94 |
||
|
71701B
|
71701B
71701-60010-B0 Board Sub-Assy, Rear Seat Back, Rh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) GRAY,TRIM1# |
71701-60010-B0 |
US $158.70 |
||
|
71701B
|
71701B
71701-60010-E0
Board Sub-Assy, Rear Seat Back, Rh
[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) LT. OAK,TRIM4# |
71701-60010-E0 |
— | ||
|
71701B
|
71701B
71701-60020-A0 Board Sub-Assy, Rear Seat Back, Rh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71701-60020-A0 |
US $132.50 |
||
| replacement | |||||
|
71701B
|
71701B
71701-60020-A1 Board Sub-Assy, Rear Seat Back, Rh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71701-60020-A1 |
US $133.95 |
||
|
71701B
|
71701B
71701-60020-B0 Board Sub-Assy, Rear Seat Back, RhREAR SEAT BACK, LH [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),MD.GRAY,TRIM1# |
71701-60020-B0 |
US $132.50 |
||
| replacement | |||||
|
71701B
|
71701B
71701-60020-B1 Board Sub-Assy, Rear Seat Back, Rh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),MD.GRAY,TRIM1# |
71701-60020-B1 |
US $133.95 |
||
|
71931A
|
71931A
71930-28040-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI |
71930-28040-A0 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-28040-B5 Support, Front Seat Headrest[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71930-28040-B5 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-28040-C0
Support, Front Seat Headrest
[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71930-28040-C0 |
— | ||
|
71931A
|
71931A
71930-60030-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
71930-60030-A0 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-B0
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRI |
71930-60030-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71930-60030-B1
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRI |
71930-60030-B1 |
— | ||
|
71931A
|
71931A
71931-28050-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI |
71931-28050-A0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-28050-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI |
71931-28050-A1 |
from US $8.60 |
||
|
71931A
|
71931A
71931-28050-B5
Support, Front Seat Headrest
[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71931-28050-B5 |
— | ||
|
71931A
|
71931A
71931-60020-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
71931-60020-A0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-60020-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
71931-60020-A1 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-B0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD. |
71931-60020-B0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-60020-B1
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD. |
71931-60020-B1 |
— | ||
|
71940A
|
71940A
71940-60250-B0 Headrest Assy, Rear Seat[01.1998 - 08.2002] HDJ100,UZJ100..VX GRAY,TRIM1# |
71940-60250-B0 |
US $398.94 |
||
|
71940A
|
71940A
71940-60250-E0 Headrest Assy, Rear Seat[01.1998 - 08.2002] HDJ100,UZJ100..VX OAK,TRIM4# |
71940-60250-E0 |
US $398.94 |
||
|
71940A
|
71940A
71940-60260-A0 Headrest Assy, Rear Seat[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71940-60260-A0 |
US $503.78 |
||
| replacement | |||||
|
71940A
|
71940A
71940-60260-A1 Headrest Assy, Rear Seat[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71940-60260-A1 |
US $503.78 |
||
|
71940A
|
71940A
71940-60260-B0 Headrest Assy, Rear SeatREAR SEAT [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71940-60260-B0 |
US $503.78 |
||
| replacement | |||||
|
71940A
|
71940A
71940-60260-B1 Headrest Assy, Rear SeatREAR SEAT [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71940-60260-B1 |
US $503.78 |
||
|
71960B
|
71960B
71960-60020-B0 Headrest Assy, Rear Seat, Center[01.1998 - 08.2002] HDJ100,UZJ100..VX GRAY,TRIM1# |
71960-60020-B0 |
US $320.32 |
||
|
71960B
|
71960B
71960-60020-E0
Headrest Assy, Rear Seat, Center
[01.1998 - 08.2002] HDJ100,UZJ100..VX OAK,TRIM4# |
71960-60020-E0 |
— | ||
|
71960B
|
71960B
71960-60030-A0 Headrest Assy, Rear Seat, Center[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71960-60030-A0 |
US $404.77 |
||
| replacement | |||||
|
71960B
|
71960B
71960-60030-A1 Headrest Assy, Rear Seat, Center[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71960-60030-A1 |
US $406.22 |
||
|
71960B
|
71960B
71960-60030-B0 Headrest Assy, Rear Seat, CenterREAR SEAT, CENTER [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71960-60030-B0 |
US $404.77 |
||
| replacement | |||||
|
71960B
|
71960B
71960-60030-B1 Headrest Assy, Rear Seat, CenterREAR SEAT, CENTER [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71960-60030-B1 |
US $406.22 |
||
|
72830
|
72830
72830-60040-B0 Armrest Assy, Rear Seat, Center[01.1998 - 08.2002] HDJ100,UZJ100..VX GRAY,TRIM1# |
72830-60040-B0 |
US $716.35 |
||
|
72830
|
72830
72830-60040-E0 Armrest Assy, Rear Seat, Center[01.1998 - 08.2002] HDJ100,UZJ100..VX LT. OAK,TRIM4# |
72830-60040-E0 |
US $716.35 |
||
|
72830
|
72830
72830-60050-A0 Armrest Assy, Rear Seat, Center[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
72830-60050-A0 |
US $998.82 |
||
| replacement | |||||
|
72830
|
72830
72830-60050-A1 Armrest Assy, Rear Seat, Center[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
72830-60050-A1 |
US $1,000.27 |
||
|
72830
|
72830
72830-60050-B0 Armrest Assy, Rear Seat, CenterREAR SEAT, CENTER [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
72830-60050-B0 |
US $998.82 |
||
| replacement | |||||
|
72830
|
72830
72830-60050-B1 Armrest Assy, Rear Seat, CenterREAR SEAT, CENTER [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
72830-60050-B1 |
US $1,000.27 |
||
|
72830B
|
72830B
90386-11015 Bush(For Rear Seat Center Armrest)[01.1998 - 08.2002] HDJ100..VX;UZJ100..LHD |
90386-11015 |
US $1.46 |
||
|
9010906208
|
9010906208
90109-06208 New Genuine Part |
90109-06208 |
US $1.16 |
||
|
9017604015
|
9017604015
90176-04015 New Genuine Part |
90176-04015 |
US $0.87 |
||
|
9017908249
|
9017908249
90179-08249 New Genuine Part |
90179-08249 |
US $1.79 |
||
