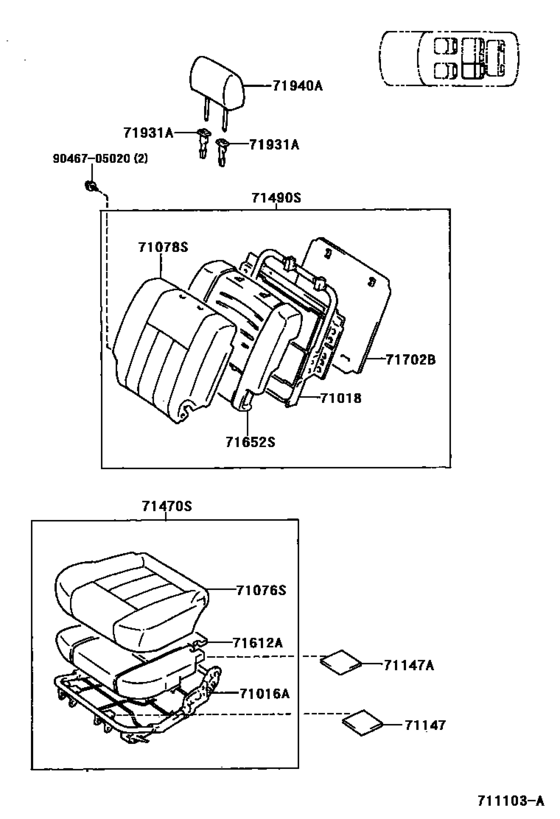

Seat & Seat Track ([01.1998 - 08.2002] REAR NO.1 SEAT (TYPE B) (9801-0208)RHD) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71016A
|
71016A
71016-60050 Frame Sub-Assy, Rear Seat Cushion, Lh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71016-60050 |
US $199.47 |
||
|
71018
|
71018
71018-60180 Frame Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71018-60180 |
US $160.16 |
||
|
71076S
|
71076S
71076-60400-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
71076-60400-B0 |
US $409.14 |
||
|
71076S
|
71076S
71076-60400-E0 Cover, Rear Seat Cushion, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
71076-60400-E0 |
US $409.14 |
||
|
71076S
|
71076S
71076-60420-A0 Cover, Rear Seat Cushion, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71076-60420-A0 |
US $831.38 |
||
| replacement | |||||
|
71076S
|
71076S
71076-60420-A1 Cover, Rear Seat Cushion, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71076-60420-A1 |
US $832.83 |
||
|
71076S
|
71076S
71076-60420-B0 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71076-60420-B0 |
US $831.38 |
||
| replacement | |||||
|
71076S
|
71076S
71076-60420-B1 Cover, Rear Seat Cushion, Lh (For Separate Type)REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71076-60420-B1 |
US $832.83 |
||
|
71078S
|
71078S
71078-60520-A0 Cover, Rear Seat Back, Lh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71078-60520-A0 |
US $981.34 |
||
| replacement | |||||
|
71078S
|
71078S
71078-60520-A1 Cover, Rear Seat Back, Lh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71078-60520-A1 |
US $982.80 |
||
|
71078S
|
71078S
71078-60520-B0 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71078-60520-B0 |
US $981.34 |
||
| replacement | |||||
|
71078S
|
71078S
71078-60520-B1 Cover, Rear Seat Back, Lh(For Separate Type)REAR SEAT BACK, LH(FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
71078-60520-B1 |
US $982.80 |
||
|
71078S
|
71078S
71078-60590-B0 Cover, Rear Seat Back, Lh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
71078-60590-B0 |
US $499.41 |
||
|
71078S
|
71078S
71078-60590-E0 Cover, Rear Seat Back, Lh(For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
71078-60590-E0 |
US $499.41 |
||
|
71147
|
71147
71147-60010 Silencer, Seat Spring[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)..(DSL2,EFI,TD2) W(REAR NO.1 SEAT=TYPE A:REFER TO ILLUSTRATION) |
71147-60010 |
US $3.93 |
||
|
71147
|
71147
71147-60060 Silencer, Seat Spring[01.1998 - 08.2002] UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX W(REAR NO.1 SEAT=TYPE B:REFER TO ILLUSTRATION) |
71147-60060 |
US $3.93 |
||
|
71147A
|
71147A
71147-60020 Silencer, Rear Seat Spring[01.1998 - 08.1998] FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
71147-60020 |
US $3.49 |
||
|
71470S
|
71470S
71470-60460-B0 Cushion Assy, Rear Seat, Lh (For Separate Type)REAR SEAT, LH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
71470-60460-B0 |
US $1,119.66 |
||
|
71470S
|
71470S
71470-60460-E0 Cushion Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
71470-60460-E0 |
US $1,119.66 |
||
|
71470S
|
71470S
71470-60520-B0 Cushion Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
71470-60520-B0 |
US $730.91 |
||
|
71470S
|
71470S
71470-60520-E1 Cushion Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
71470-60520-E1 |
US $730.91 |
||
|
71490S
|
71490S
71490-60760-B0 Back Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
71490-60760-B0 |
US $860.50 |
||
|
71490S
|
71490S
71490-60760-E1 Back Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
71490-60760-E1 |
US $860.50 |
||
|
71490S
|
71490S
71490-60790-B0 Back Assy, Rear Seat, Lh (For Separate Type)REAR SEAT, LH (FOR SEPARATE TYPE) [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
71490-60790-B0 |
US $1,324.96 |
||
|
71490S
|
71490S
71490-60790-E0 Back Assy, Rear Seat, Lh (For Separate Type)[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
71490-60790-E0 |
US $1,324.96 |
||
|
71612A
|
71612A
71612-60090 Pad, Rear Seat Cushion, Lh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT) |
71612-60090 |
US $230.05 |
||
|
71612A
|
71612A
71612-60140 Pad, Rear Seat Cushion, Lh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71612-60140 |
US $230.05 |
||
|
71652S
|
71652S
71652-60130 Pad, Rear Seat Back, Lh(For Separate Type)[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
71652-60130 |
US $147.06 |
||
|
71702B
|
71702B
71702-60010-B0 Board Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) GRAY,TRIM1# |
71702-60010-B0 |
US $158.70 |
||
|
71702B
|
71702B
71702-60010-E0 Board Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) LT. OAK,TRIM4# |
71702-60010-E0 |
US $158.70 |
||
|
71702B
|
71702B
71702-60020-A0 Board Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71702-60020-A0 |
US $132.50 |
||
| replacement | |||||
|
71702B
|
71702B
71702-60020-A1 Board Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
71702-60020-A1 |
US $99.01 |
||
|
71702B
|
71702B
71702-60020-B0 Board Sub-Assy, Rear Seat Back, LhREAR SEAT BACK, RH [01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),MD.GRAY,TRIM1# |
71702-60020-B0 |
US $132.50 |
||
| replacement | |||||
|
71702B
|
71702B
71702-60020-B1 Board Sub-Assy, Rear Seat Back, Lh[01.1998 - 08.2002] HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),MD.GRAY,TRIM1# |
71702-60020-B1 |
US $99.01 |
||
|
71931A
|
71931A
71930-28040-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI |
71930-28040-A0 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-28040-B5 Support, Front Seat Headrest[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71930-28040-B5 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-28040-C0
Support, Front Seat Headrest
[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71930-28040-C0 |
— | ||
|
71931A
|
71931A
71930-60030-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
71930-60030-A0 |
US $16.89 |
||
| replacement | |||||
|
71931A
|
71931A
71930-60030-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
71930-60030-A1 |
US $16.89 |
||
|
71931A
|
71931A
71930-60030-B0
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRI |
71930-60030-B0 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71930-60030-B1
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRI |
71930-60030-B1 |
— | ||
|
71931A
|
71931A
71931-28050-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI |
71931-28050-A0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-28050-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM40,41,RH & CENTER; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM40,41,LH & CENTER; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI |
71931-28050-A1 |
from US $8.60 |
||
|
71931A
|
71931A
71931-28050-B5
Support, Front Seat Headrest
[03.2001 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,LH & CENTER; FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
71931-28050-B5 |
— | ||
|
71931A
|
71931A
71931-60020-A0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
71931-60020-A0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-60020-A1 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),IVORY,TRIM41,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),IVORY,TRIM41,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),IVORY,TRIM4#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
71931-60020-A1 |
US $10.34 |
||
|
71931A
|
71931A
71931-60020-B0 Support, Front Seat Headrest[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD. |
71931-60020-B0 |
US $10.48 |
||
| replacement | |||||
|
71931A
|
71931A
71931-60020-B1
Support, Front Seat Headrest
[03.2001 - 08.2002] HDJ100..RHD..GEN W/O(LOCK),MD.GRAY,TRIM1#,40,LH; UZJ100;HDJ100..LHD..LUB W/O(LOCK),MD.GRAY,TRIM1#,40,RH; HDJ100..SOB;FZJ10#,HZJ105..LHD..GX W/O(LOCK),MD.GRAY,TRIM1#,RH; FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD. |
71931-60020-B1 |
— | ||
|
71940A
|
71940A
71940-60250-B0 Headrest Assy, Rear Seat[01.1998 - 08.2002] HDJ100,UZJ100..VX GRAY,TRIM1# |
71940-60250-B0 |
US $398.94 |
||
|
71940A
|
71940A
71940-60250-E0 Headrest Assy, Rear Seat[01.1998 - 08.2002] HDJ100,UZJ100..VX OAK,TRIM4# |
71940-60250-E0 |
US $398.94 |
||
|
71940A
|
71940A
71940-60260-A0 Headrest Assy, Rear Seat[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71940-60260-A0 |
US $503.78 |
||
| replacement | |||||
|
71940A
|
71940A
71940-60260-A1 Headrest Assy, Rear Seat[01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),IVORY,TRIM4# |
71940-60260-A1 |
US $503.78 |
||
|
71940A
|
71940A
71940-60260-B0 Headrest Assy, Rear SeatREAR SEAT [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71940-60260-B0 |
US $503.78 |
||
| replacement | |||||
|
71940A
|
71940A
71940-60260-B1 Headrest Assy, Rear SeatREAR SEAT [01.1998 - 08.2002] UZJ100;HDJ100..LUB..GEN W(LEATHER SEAT),GRAY,TRIM1# |
71940-60260-B1 |
US $503.78 |
||
|
9046705020
|
9046705020
90467-05020 Clip(For Floor Carpet Set Bracket) |
90467-05020 |
US $1.31 |
||
| replacement | |||||
|
9046705020
|
9046705020
90467-05020-01 Clip(For Floor Carpet Set Bracket) |
90467-05020-01 |
US $1.10 |
||
