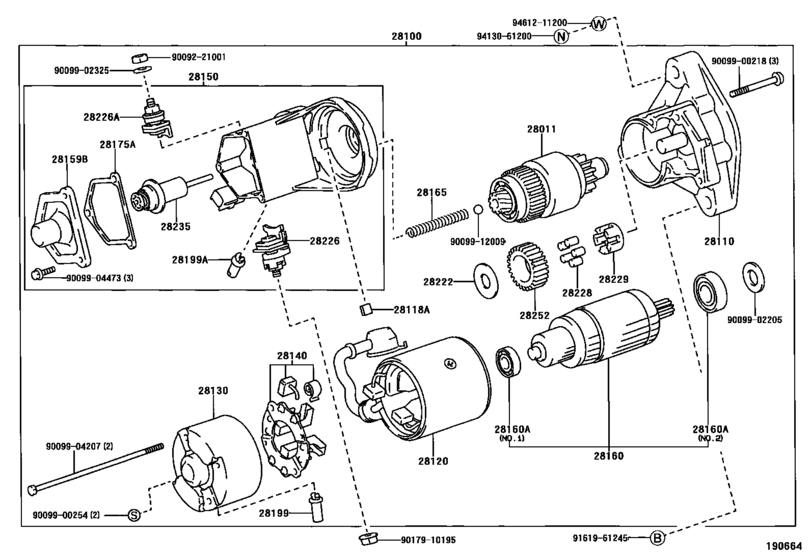

Starter ([01.1998 - 08.2002] 12V 2.5KW (9801-0208)1HDT,1HZ) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-17020 Clutch Sub-Assy, Starter[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28011-17020 |
US $331.97 |
||
|
28100
|
28100
28100-17060 Starter Assy[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28100-17060 |
US $1,645.28 |
||
| replacement | |||||
|
28100
|
28100
28100-17061 Starter Assy[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28100-17061 |
from US $756.89 |
||
|
28110
|
28110
28115-17020
Housing Assy, Starter Drive
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28115-17020 |
— | ||
|
28118A
|
28118A
28118-77090
Plate(For Starter Yoke)
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
28118-77090 |
— | ||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28120-56081 |
— | ||
|
28130
|
28130
28130-56300
Frame Assy, Starter Commutator End
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28130-56300 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-17060 Switch Assy, Magnet Starter[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28150-17060 |
US $204.42 |
||
|
28159B
|
28159B
28159-17030
Cover, Magnet Switch
[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28159-17030 |
— | ||
|
28160
|
28160
28160-47040
Armature Assy, Starter
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28160-47040 |
— | ||
| replacement | |||||
|
28160
|
28160
28160-54140 Armature Assy, Starter[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28160-54140 |
from US $185.07 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW,NO.1 |
90099-10107 |
from US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW,NO.2 |
90099-10119 |
from US $10.18 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28175-56310 |
from US $1.92 |
||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-54190 Cover, Starter End Frame[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28199-54190 |
US $1.92 |
||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28222-77090 |
— | ||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28226-54320 |
from US $10.28 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28226-54220 |
from US $12.40 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
28235-17030 |
from US $25.68 |
||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 12V 2.5KW |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900218
|
9009900218
90099-00218
New Genuine Part
|
90099-00218 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017910195
|
9017910195
90179-10195 NUT WWASHER |
90179-10195 |
US $1.97 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.81 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
