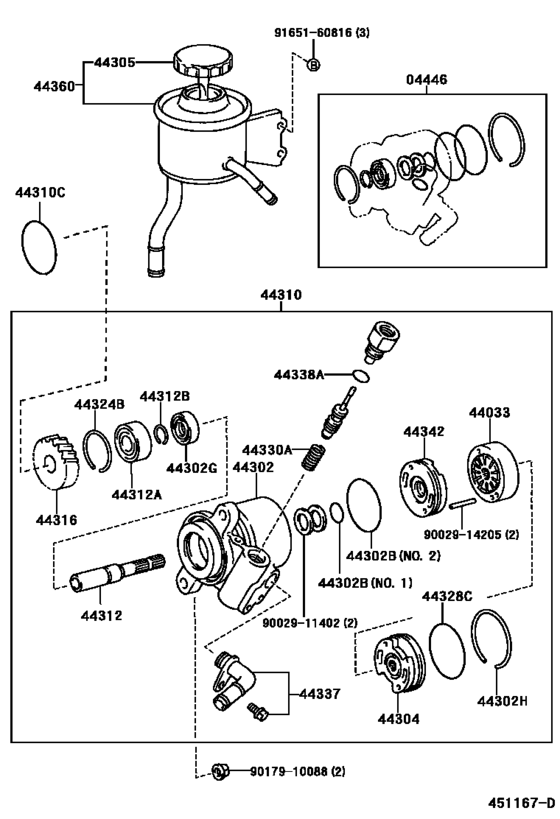

Vane Pump & Reservoir (Power Steering) ([01.1998 - 08.2002] (9801-0208)HDJ100..GEN) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-60100 Gasket Kit, Power Steering Pump[01.1998 - 08.2002] HDJ100 |
04446-60100 |
US $48.05 |
||
| replacement | |||||
|
04446
|
04446
04446-37040 Gasket Kit, Power Steering PumpPOWER STEERING PUMP [01.1998 - 08.2002] HDJ100 |
04446-37040 |
from US $59.77 |
||
|
44033
|
44033
44033-60010
Rotor Sub-Assy, W/cam & Vane
[01.1998 - 08.2002] HDJ100 |
44033-60010 |
— | ||
| replacement | |||||
|
44033
|
44033
44033-EV010 Rotor Sub-Assy, W/cam & Vane[01.1998 - 08.2002] HDJ100 |
44033-EV010 |
US $82.32 |
||
|
44302
|
44302
44302-60080
Housing Sub-Assy, Vane Pump, Front
[01.1998 - 08.2002] HDJ100 |
44302-60080 |
— | ||
|
44302B
|
44302B
90029-20056 Ring, O, No.1(For Vane Pump Housing)[01.1998 - 08.2002] HDJ100 NO.1 |
90029-20056 |
US $2.62 |
||
|
44302B
|
44302B
90029-20057 Ring, O, No.1(For Vane Pump Housing)[01.1998 - 08.2002] HDJ100 NO.2 |
90029-20057 |
US $2.62 |
||
|
44302G
|
44302G
90029-21018 Seal, Oil, No.2(For Vane Pump Housing)[01.1998 - 08.2002] HDJ100,HZJ105 |
90029-21018 |
from US $2.75 |
||
|
44302H
|
44302H
90029-52010 Ring, Snap, No.1(For Vane Pump Housing)[01.1998 - 08.2002] HDJ100 |
90029-52010 |
US $2.62 |
||
|
44304
|
44304
44304-60040 Housing Sub-Assy, Vane Pump, Rear[01.1998 - 08.2002] HDJ100 |
44304-60040 |
from US $72.05 |
||
|
44305
|
44305
44305-22040
Cap Sub-Assy, Vane Pump Oil Reservoir
[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
44305-22040 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
44305-22061 |
from US $15.88 |
||
|
44310
|
44310
44310-60350 Pump Assy, VaneVANE [01.1998 - 08.2002] HDJ100..GEN |
44310-60350 |
US $1,099.28 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[01.1998 - 08.2002] HDJ100,HZJ105 |
90301-60002 |
from US $6.84 |
||
|
44312
|
44312
44312-60030 Shaft, Vane Pump[01.1998 - 08.2002] HDJ100 |
44312-60030 |
US $13.80 |
||
|
44312A
|
44312A
90029-36003 Bearing(For Vane Pump Shaft)[01.1998 - 08.2002] HDJ100,HZJ105 |
90029-36003 |
from US $25.03 |
||
|
44312B
|
44312B
90029-52402 Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)[01.1998 - 08.2002] HDJ100,HZJ105 |
90029-52402 |
US $3.40 |
||
|
44316
|
44316
44316-60040 Gear, Vane Pump[01.1998 - 08.2002] HDJ100 |
44316-60040 |
US $112.18 |
||
|
44324B
|
44324B
90029-52011 Ring, Snap, No.1(For Vane Pump Housing)[01.1998 - 08.2002] HDJ100 |
90029-52011 |
US $4.22 |
||
|
44328C
|
44328C
90029-20058 Ring, O(For Pump Housing End)[01.1998 - 08.2002] HDJ100 |
90029-20058 |
US $2.48 |
||
|
44330A
|
44330A
90029-60013 Spring, Compression(For Flow Control Valve)[01.1998 - 08.2002] HDJ100 |
90029-60013 |
US $0.84 |
||
|
44337
|
44337
44337-60130 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [01.1998 - 08.2002] HDJ100..GEN |
44337-60130 |
US $25.33 |
||
|
44338A
|
44338A
96711-19016 Ring, O (For 5Th Shift Arm Shaft)[01.1998 - 08.2002] HDJ100 OD=19.6,ID=15.8 |
96711-19016 |
US $5.38 |
||
|
44342
|
44342
44342-60050 Plate, Vane Pump Side, Rear[01.1998 - 08.2002] HDJ100 |
44342-60050 |
US $104.96 |
||
|
44360
|
44360
44360-60101 Reservoir Assy, Vane Pump Oil[01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
44360-60101 |
from US $104.96 |
||
|
9002911402
|
9002911402
90029-11402 New Genuine Part |
90029-11402 |
US $3.20 |
||
|
9002914205
|
9002914205
90029-14205 Pin, Straight(For Vane Pump Cam Ring) |
90029-14205 |
US $0.87 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
