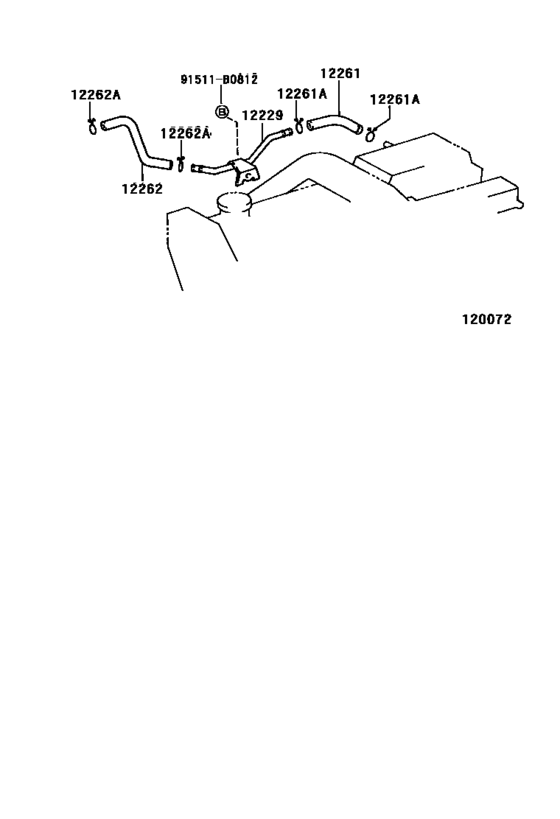

Ventilation Hose ([01.1998 - 08.2002] (9801-0208)1HDT) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12229
|
12229
12229-17010 Pipe, Ventilation[01.1998 - 08.2002] 1HDT..HDJ100 |
12229-17010 |
from US $22.25 |
||
|
12261
|
12261
12261-17010 Hose, Ventilation[01.1998 - 08.2002] 1HDT,1HZ..HDJ100,HZJ105 |
12261-17010 |
from US $7.92 |
||
|
12261A
|
12261A
90467-22010 Clip Or Clamp(For Ventilation Hose)[01.1998 - 08.2002] 1HD#,1HZ..HDJ100,HZJ105 |
90467-22010 |
from US $1.42 |
||
|
12262
|
12262
12262-17060 Hose, Ventilation, No.2VENTILATION, NO.2 [01.1998 - 08.2002] 1HDT..HDJ100 |
12262-17060 |
US $20.53 |
||
|
12262A
|
12262A
90467-22010 Clip Or Clamp(For Ventilation Hose)[01.1998 - 08.2002] 1HDT..HDJ100 |
90467-22010 |
from US $1.42 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.61 |
