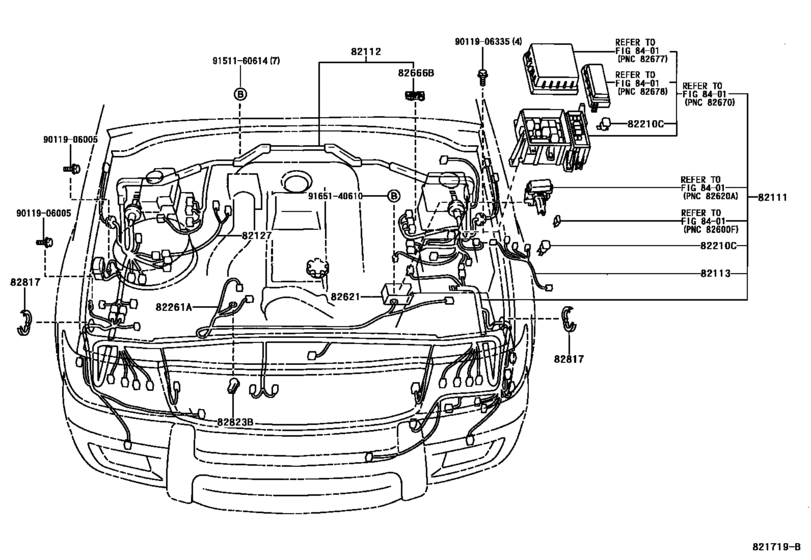

Wiring & Clamp ([01.1998 - 08.2002] ENGINE ROOM(1-BATTERY) (9801-0208)HDJ100,HZJ105) Diagram Toyota LAND CRUISER
- Year
- 1998 - 2002
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDT
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 01.1998
- To
- 08.2002
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-6A090 Wire, Engine Room MainENGINE ROOM MAIN [01.1998 - 07.1999] HDJ100,HZJ105 |
82111-6A090 |
US $1,421.06 |
||
|
82111
|
82111
82111-6A091
Wire, Engine Room Main
[07.1999 - 08.1999] HZJ105;HDJ100..LUB |
82111-6A091 |
— | ||
|
82111
|
82111
82111-6A093
Wire, Engine Room Main
[08.2000 - 08.2002] HZJ105;HDJ100..LUB..GEN |
82111-6A093 |
— | ||
|
82111
|
82111
82111-6A100 Wire, Engine Room MainENGINE ROOM MAIN [01.1998 - 07.1999] HDJ100 W(DUAL AIR CONDITIONER) |
82111-6A100 |
US $419.33 |
||
|
82111
|
82111
82111-6A101 Wire, Engine Room MainENGINE ROOM MAIN [07.1999 - 08.1999] HDJ100,HZJ105..(GX,VX)..(ARL,GEN) W(DUAL AIR CONDITIONER) |
82111-6A101 |
US $1,355.54 |
||
|
82111
|
82111
82111-6A103 Wire, Engine Room MainENGINE ROOM MAIN [08.2000 - 08.2002] HDJ100..SOB; HDJ100..LUB..GEN W(DUAL AIR CONDITIONER); HZJ105..GX..(ARL,GEN) W(COOL BOX & SINGLE AIR CONDITIONER) |
82111-6A103 |
US $1,355.54 |
||
|
82112
|
82112
82112-60220 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [01.1998 - 07.1999] HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
82112-60220 |
US $1,601.60 |
||
|
82112
|
82112
82112-60221 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [07.1999 - 08.2000] HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
82112-60221 |
US $1,528.80 |
||
|
82112
|
82112
82112-60222 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.2000 - 08.2002] HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) W(ABS) |
82112-60222 |
US $1,528.80 |
||
|
82112
|
82112
82112-60310 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [01.1998 - 07.1999] HDJ100,HZJ105..RHD |
82112-60310 |
US $1,421.06 |
||
|
82112
|
82112
82112-60311 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [07.1999 - 08.2000] HDJ100,HZJ105..RHD |
82112-60311 |
US $1,102.19 |
||
|
82112
|
82112
82112-60312 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.2000 - 08.2002] HDJ100,HZJ105..RHD..(DSL2,TD2) |
82112-60312 |
US $1,102.19 |
||
|
82113
|
82113
82113-60070 Wire, Engine Room, No.3[01.1998 - 07.1999] HDJ100,HZJ105 W(1 BATTERY) |
82113-60070 |
US $161.62 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[01.1998 - 08.2002] FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[01.1998 - 04.2000] FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[01.1998 - 08.2002] FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08286 Fusible Link[01.1998 - 08.2002] FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82210C
|
82210C
90982-08290 Fusible Link[01.1998 - 04.2000] FZJ105,HDJ100,HZJ105,UZJ100 60A |
90982-08290 |
US $8.59 |
||
|
82210C
|
82210C
90982-08291 Fusible Link[01.1998 - 04.2000] FZJ105,HDJ100,HZJ105,UZJ100 80A |
90982-08291 |
US $7.88 |
||
|
82261A
|
82261A
82261-60070 Wire, AlternatorALTERNATOR [01.1998 - 08.2002] HDJ100,HZJ105..DSL2,TD2 |
82261-60070 |
US $141.23 |
||
|
82621
|
82621
82621-60010
Cover, Fusible Link
[01.1998 - 07.1999] FZJ10#,HDJ100,HZJ105,UZJ100 |
82621-60010 |
— | ||
|
82666B
|
82666B
82666-60060 Holder, Connector No.2[01.1998 - 04.2000] FZJ10#,HDJ100,HZJ105,UZJ100 |
82666-60060 |
US $3.67 |
||
|
82817
|
82817
82817-24110 Protector, Wiring Harness, No.1[01.1998 - 07.1999] FZJ10#,HDJ100,HZJ105,UZJ100 |
82817-24110 |
US $5.42 |
||
|
82823B
|
82823B
82823-22050 Cap, Terminal, No.1[01.1998 - 08.2002] FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
82823-22050 |
US $6.99 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.43 |
||
|
9011906335
|
9011906335
90119-06335 New Genuine Part |
90119-06335 |
US $0.92 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
