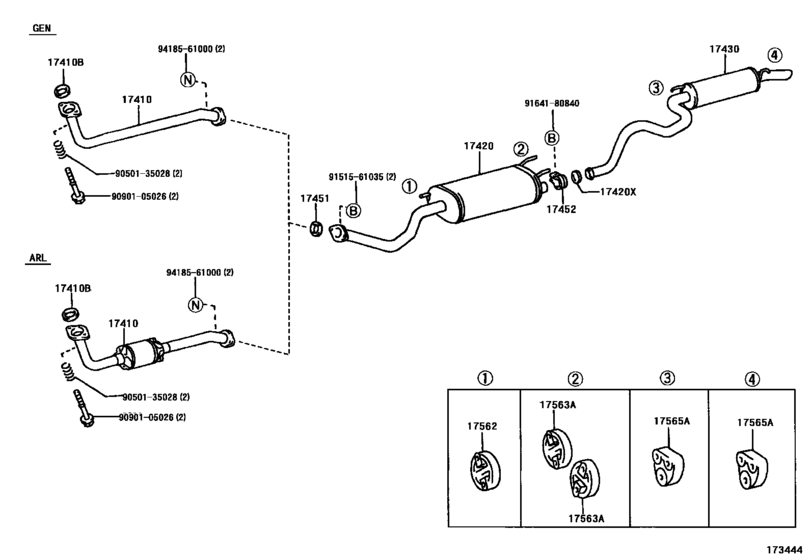

Exhaust Pipe ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-17160 Pipe Assy, Exhaust, Front[08.2002 - 05.2005] 1HDFTE..HDJ100..GEN |
17401-17160 |
from US $212.28 |
||
|
17410B
|
17410B
17451-67020 Gasket, Exhaust Pipe[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17451-67020 |
from US $19.54 |
||
|
17420
|
17420
17403-17160 Pipe Assy, Exhaust, Center[08.2002 - 05.2005] 1HDFTE..HDJ100 |
17403-17160 |
from US $484.79 |
||
|
17420X
|
17420X
17451-50050 Gasket, Exhaust Pipe, Center[08.2002 - 05.2005] 1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
17451-50050 |
from US $1.70 |
||
|
17430
|
17430
17405-50030 Pipe Assy, Exhaust, Tail[08.2002 - 05.2005] 1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
17405-50030 |
from US $308.47 |
||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[08.2002 - 05.2005] 1FZFE,1H#..FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
90917-06076 |
from US $6.27 |
||
|
17452
|
17452
17452-50050 Clamp, Exhaust Pipe[08.2002 - 05.2005] 1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
17452-50050 |
from US $21.59 |
||
|
17562
|
17562
17565-74280 Support, Exhaust Pipe, No.1[08.2002 - 05.2005] 2UZFE..UZJ100..ARL NO.2; 1FZFE,1HDFTE..FZJ100,HDJ100..ARL,GCC,GEN; 2UZFE..UZJ100..GCC SAUDI ARABIA OR PERU SPEC,NO.2 |
17565-74280 |
from US $7.64 |
||
|
17563A
|
17563A
17565-74280 Support, Exhaust Pipe, No.1[08.2002 - 05.2005] 1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
17565-74280 |
from US $7.64 |
||
|
17565A
|
17565A
17565-13030 Ring, Catalytic Converter[08.2002 - 05.2005] 1FZFE,1HDFTE,2UZFE..FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
17565-13030 |
from US $5.85 |
||
|
9050135028
|
9050135028
90501-35028 Spring, Exhaust Pipe |
90501-35028 |
from US $3.22 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
|
9151561035
|
9151561035
91515-61035 BOLT |
91515-61035 |
from US $0.96 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
from US $0.92 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
