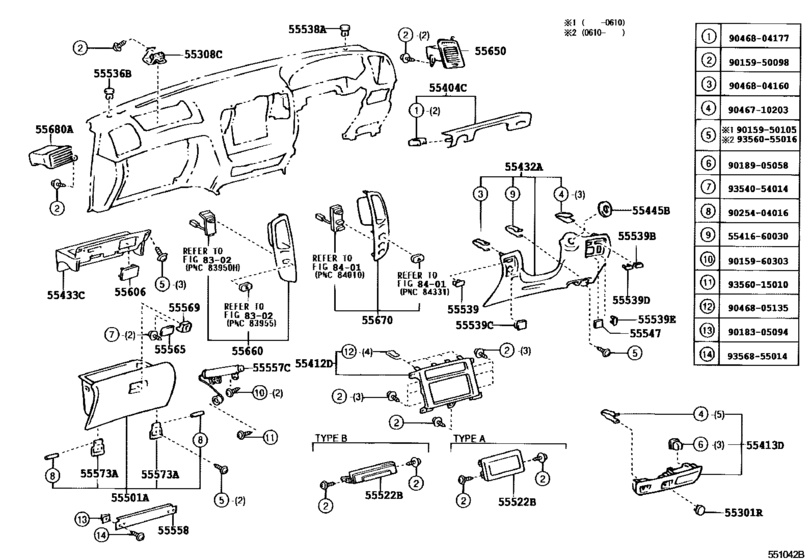

Instrument Panel & Glove Compartment ([08.2002 - ] (0208- )RHD) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55308C
|
55308C
55308-60050
Bracket Sub-Assy, Instrument Panel, Center
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD |
55308-60050 |
— | ||
|
55404C
|
55404C
55404-60110-C0 Panel Sub-Assy, Instrument Cluster Finish, No.2[08.2002 - 05.2005] HDJ100,UZJ100..RHD BLACK,TRIM0#,1# |
55404-60110-C0 |
US $44.84 |
||
|
55412D
|
55412D
55412-60310 Panel, Instrument Cluster Finish, Center[08.2002 - 05.2005] HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
55412-60310 |
US $112.32 |
||
|
55413D
|
55413D
55413-60160
Panel, Instrument Cluster Finish, Center Lower
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..5F;FZJ100,HDJ100,UZJ100..ATM..(GCC,GEN) W(FRONT SEPARATE SEAT) |
55413-60160 |
— | ||
|
55432A
|
55432A
55302-60011-A1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ100,UZJ100..RHD IVORY,TRIM0# |
55302-60011-A1 |
US $174.72 |
||
| replacement | |||||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ100,UZJ100..RHD IVORY,TRIM0# |
55302-60011-B1 |
US $183.46 |
||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ100,UZJ100..RHD STONE,TRIM1# |
55302-60011-B1 |
US $183.46 |
||
|
55433C
|
55433C
55433-60040
Panel, Instrument Panel Finish, Lower Lh
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD |
55433-60040 |
— | ||
|
55445B
|
55445B
55445-60100-A0 Plate, Instrument Panel Finish[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55445-60100-A0 |
from US $4.58 |
||
|
55445B
|
55445B
55445-60100-B0 Plate, Instrument Panel Finish[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
55445-60100-B0 |
from US $4.50 |
||
|
55501A
|
55501A
55501-60141-A1 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55501-60141-A1 |
from US $136.01 |
||
|
55501A
|
55501A
55501-60141-B2 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
55501-60141-B2 |
US $190.44 |
||
|
55522B
|
55522B
55522-42010
Cover, Radio Tuner Opening
[08.2002 - 05.2005] HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ 100..(4FC,5F)..(ARL,GCC,GEN) TYPE B:REFER TO ILLUSTRATION |
55522-42010 |
— | ||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[08.2002 - 05.2005] UZJ100..ARL,GEN;UZJ100..LUB..5FC..GCC;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
55522-52020 |
from US $14.14 |
||
|
55536B
|
55536B
55536-60020-B0 Cover, Light Control Switch Hole[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
55536-60020-B0 |
US $3.93 |
||
| replacement | |||||
|
55536B
|
55536B
55536-60020-C0 Cover, Light Control Switch Hole[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN DK.GRAY,TRIM1# |
55536-60020-C0 |
US $2.91 |
||
|
55536B
|
55536B
55536-60020-E0 Cover, Light Control Switch Hole[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) SANDAL WOOD,TRIM0# |
55536-60020-E0 |
US $4.95 |
||
|
55539
|
55539
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] FZJ10#,HZJ105..STD BLACK,TRIM1#; FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.35 |
||
|
55539C
|
55539C
55548-60040-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] FZJ10#,HZJ105..STD BLACK,TRIM1#; FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) BLACK,TRIM0#,1# |
55548-60040-C0 |
from US $4.11 |
||
|
55539D
|
55539D
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] FZJ105,HZJ105..STD..GEN BLACK,TRIM1#; FZJ105,HDJ100,HZJ105..(GX,VX)..GEN BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.35 |
||
|
55539E
|
55539E
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] FZJ10#,HZJ105..STD BLACK,TRIM1#; FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.35 |
||
|
55557C
|
55557C
55557-60010 Damper, Glove Compartment Door[08.2002 - 05.2005] HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
55557-60010 |
US $25.68 |
||
|
55565
|
55565
55565-60010-A1
Handle, Glove Compartment Door Lock
[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55565-60010-A1 |
— | ||
| replacement | |||||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55565-60010-B2 |
US $4.02 |
||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
55565-60010-B2 |
US $4.02 |
||
|
55569
|
55569
55569-60020-A1
Cover, Glove Compartment Door Lock
[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55569-60020-A1 |
— | ||
| replacement | |||||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
55569-60020-B2 |
from US $5.42 |
||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
55569-60020-B2 |
from US $5.42 |
||
|
55573A
|
55573A
55573-32010 Hinge Sub-Assy, Glove Compartment Door[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
55573-32010 |
US $5.07 |
||
|
55606
|
55606
55606-60050 Cover Sub-Assy, Instrument Panel Under, No.1[08.2002 - 05.2005] FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
55606-60050 |
US $11.88 |
||
|
55650
|
55650
55650-60081-B1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD DK.GRAY,TRIM1# |
55650-60081-B1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-B0
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD DK.GRAY,TRIM1# |
55650-60130-B0 |
— | ||
|
55650
|
55650
55650-60081-E1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) SANDAL WOOD,TRIM0# |
55650-60081-E1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-E0 Register Assy, Instrument Panel, No.1[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) SANDAL WOOD,TRIM0# |
55650-60130-E0 |
US $99.59 |
||
|
55660
|
55660
55660-60200
Register Assy, Instrument Panel, No.2
[08.2002 - 05.2005] HDJ100,UZJ100..RHD..VX |
55660-60200 |
— | ||
|
55670
|
55670
55670-60140 Register Assy, Instrument Panel, No.3[08.2002 - 05.2005] HZJ105..GX..ARL;HZJ105..RHD..GEN;FZJ105,HDJ100,UZJ100..RHD W(PNC 84010=TYPE A:REFER TO ILLUSTRATION FIG 84-01) |
55670-60140 |
US $300.52 |
||
|
55680A
|
55680A
55680-60060-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD DK.GRAY,TRIM1# |
55680-60060-B0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60080-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD DK.GRAY,TRIM1# |
55680-60080-B0 |
— | ||
|
55680A
|
55680A
55680-60060-E0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) SANDAL WOOD,TRIM0# |
55680-60060-E0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60080-E0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) SANDAL WOOD,TRIM0# |
55680-60080-E0 |
— | ||
|
5541660030
|
5541660030
55416-60030 Retainer, Instrument Cluster Finish Panel |
55416-60030 |
from US $1.09 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.68 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.43 |
||
|
9025404016
|
9025404016
90254-04016 Shaft, Glove Compartment Door Hinge |
90254-04016 |
US $1.40 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.70 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.92 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.98 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
