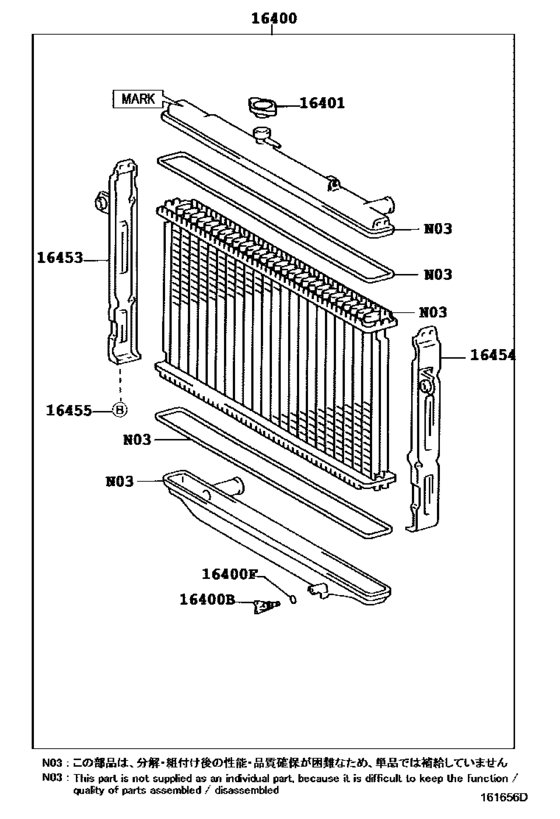

Radiator & Water Outlet ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- General
- Frame
- HDJ100
- grade
- VX
- ENGINE
- 1HDFTE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- TDEFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400
|
16400
16400-17321 Radiator Assy[08.2002 - 05.2005] 1HDFTE..HDJ100..5F MARK 1732 |
16400-17321 |
US $704.70 |
||
|
16400B
|
16400B
16417-15210 Plug, Radiator Drain Cock[08.2002 - 05.2005] 1FZFE..FZJ10#..GCC,GEN; 2UZFE..UZJ100..ARL,GCC,GEN; 1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
16417-15210 |
from US $3.72 |
||
|
16400F
|
16400F
16418-15520 Packing(For Radiator Drain Cock)[08.2002 - 05.2005] 1FZFE..FZJ10#..GCC,GEN; 2UZFE..UZJ100..ARL,GCC,GEN; 1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
16418-15520 |
from US $1.56 |
||
|
16401
|
16401
16401-50210 Cap Sub-Assy, Radiator[11.2004 - 05.2005] 1H#..HDJ100,HZJ105; 1FZFE..FZJ10#..GCC,GEN; 2UZFE..UZJ100..ARL,GCC,GEN |
16401-50210 |
US $11.18 |
||
| replacement | |||||
|
16401
|
16401
16401-67150 Cap Sub-Assy(For Water Outlet)[11.2004 - 05.2005] 1H#..HDJ100,HZJ105; 1FZFE..FZJ10#..GCC,GEN; 2UZFE..UZJ100..ARL,GCC,GEN |
16401-67150 |
from US $16.97 |
||
|
16401
|
16401
16401-67150 Cap Sub-Assy(For Water Outlet)[08.2002 - 10.2004] 1H#..HDJ100,HZJ105; 2UZFE..UZJ100..ARL,GCC,GEN |
16401-67150 |
from US $16.97 |
||
|
16453
|
16453
16453-66110 Plate, Radiator Side[08.2002 - 05.2005] 1HDFTE..HDJ100; 1FZFE..FZJ100..GCC |
16453-66110 |
US $85.90 |
||
|
16454
|
16454
16454-66110 Plate, Radiator Side[08.2002 - 05.2005] 1HDFTE..HDJ100; 1FZFE..FZJ100..GCC |
16454-66110 |
US $85.90 |
||
|
16455
|
16455
16455-67020 Bolt, Radiator Side Support Plate[08.2002 - 05.2005] 1FZFE..FZJ10#..GCC,GEN; 2UZFE..UZJ100..ARL,GCC,GEN; 1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
16455-67020 |
US $3.40 |
||
