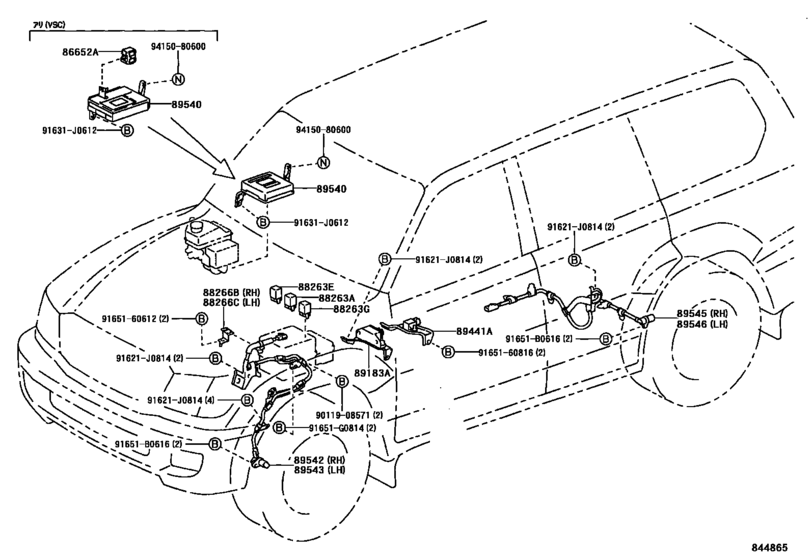

Abs & Vsc ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86652A
|
86652A
86652-51010 Buzzer Assy[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86652-51010 |
US $35.67 |
||
|
88263A
|
88263A
88263-24020 Relay, Skid Control[08.2002 - 05.2005] HDJ101,UZJ100 |
88263-24020 |
from US $39.58 |
||
|
88263E
|
88263E
88263-24030 Relay, Skid Control[08.2002 - 05.2005] HDJ101,UZJ100 |
88263-24030 |
from US $38.21 |
||
|
88263G
|
88263G
89633-24010 Relay, Skid Control[08.2002 - 05.2005] HDJ101,UZJ100 |
89633-24010 |
from US $46.40 |
||
|
88266B
|
88266B
88266-60390 Clamp, Skid Control Sensor, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
88266-60390 |
US $7.72 |
||
|
88266C
|
88266C
88266-60400 Clamp, Skid Control Sensor, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
88266-60400 |
US $7.72 |
||
|
89183A
|
89183A
89180-60060 Sensor, Yawrate[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
89180-60060 |
US $1,616.16 |
||
|
89441A
|
89441A
89440-60080
Sensor, Deceleration
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
89440-60080 |
— | ||
|
89540
|
89540
89540-60070 Computer Assy, Skid Control[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
89540-60070 |
US $1,361.07 |
||
|
89540
|
89540
89540-60400
Computer Assy, Skid Control
[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
89540-60400 |
— | ||
|
89540
|
89540
89540-60420 Computer Assy, Skid Control[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(VSC) |
89540-60420 |
US $3,640 |
||
|
89542
|
89542
89542-60040 Sensor, Speed, Front Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
89542-60040 |
from US $206.89 |
||
|
89543
|
89543
89543-60020 Sensor, Speed, Front Lh[08.2002 - 05.2005] HDJ101 |
89543-60020 |
from US $217.85 |
||
|
89545
|
89545
89545-60030 Sensor, Speed, Rear Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
89545-60030 |
from US $223.02 |
||
|
89546
|
89546
89546-60030 Sensor, Speed, Rear Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
89546-60030 |
from US $228.63 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.82 |
||
|
91651G0814
|
91651G0814
91651-G0814 New Genuine Part |
91651-G0814 |
US $2.87 |
||
|
9011908571
|
9011908571
90119-08571 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
90119-08571 |
US $2.15 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
