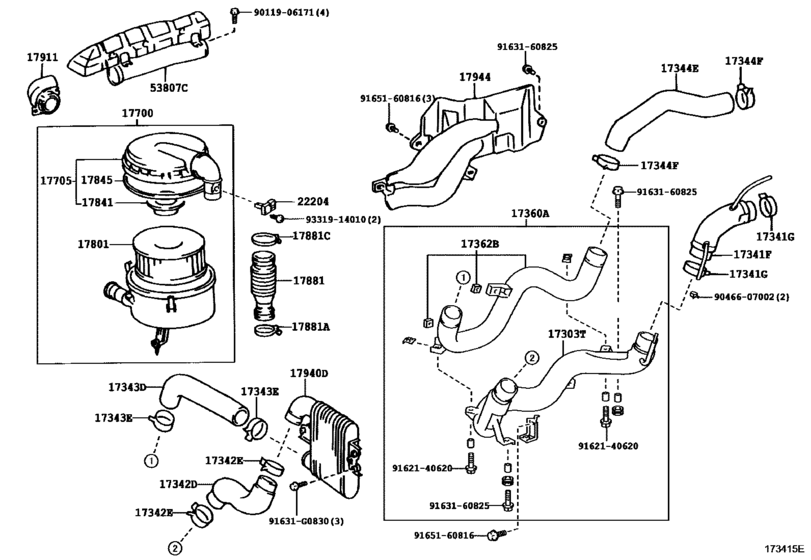

Air Cleaner ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303T
|
17303T
17303-17030 Pipe Sub-Assy, Air[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17303-17030 |
US $314.50 |
||
|
17341F
|
17341F
17341-17050 Hose, Air, No.1[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17341-17050 |
US $100.46 |
||
| replacement | |||||
|
17341F
|
17341F
17341-17051 Hose, Air, No.1[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17341-17051 |
from US $100.46 |
||
|
17341F
|
17341F
17341-17051 Hose, Air, No.1[08.2003 - 05.2005] 1HDFTE..HDJ101 |
17341-17051 |
from US $100.46 |
||
|
17341G
|
17341G
90460-67004 Clamp Or Clip(For Air Hose, No.1)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90460-67004 |
from US $4.12 |
||
|
17342D
|
17342D
17342-17012 Hose, Air, No.2[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17342-17012 |
US $100.46 |
||
| replacement | |||||
|
17342D
|
17342D
17342-17013 Hose, Air, No.2[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17342-17013 |
from US $104.73 |
||
|
17342D
|
17342D
17342-17013 Hose, Air, No.2[08.2003 - 05.2005] 1HDFTE..HDJ101 |
17342-17013 |
from US $104.73 |
||
|
17342E
|
17342E
90460-67004 Clamp Or Clip(For Air Hose, No.1)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90460-67004 |
from US $4.12 |
||
|
17343D
|
17343D
17343-17011
Hose, Air, No.3
[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17343-17011 |
— | ||
| replacement | |||||
|
17343D
|
17343D
17343-17012 Hose, Air, No.3[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17343-17012 |
from US $89.11 |
||
|
17343D
|
17343D
17343-17012 Hose, Air, No.3[08.2003 - 05.2005] 1HDFTE..HDJ101 |
17343-17012 |
from US $89.11 |
||
|
17343E
|
17343E
90460-67004 Clamp Or Clip(For Air Hose, No.1)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90460-67004 |
from US $4.12 |
||
|
17344E
|
17344E
17344-17013
Hose, Air, No.4
[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17344-17013 |
— | ||
| replacement | |||||
|
17344E
|
17344E
17344-17014 Hose, Air, No.4[08.2002 - 08.2003] 1HDFTE..HDJ101 |
17344-17014 |
from US $129.56 |
||
|
17344E
|
17344E
17344-17014 Hose, Air, No.4[08.2003 - 05.2005] 1HDFTE..HDJ101 |
17344-17014 |
from US $129.56 |
||
|
17344F
|
17344F
90460-67004 Clamp Or Clip(For Air Hose, No.1)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90460-67004 |
from US $4.12 |
||
|
17360A
|
17360A
17360-17020 Tube Assy, Air[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17360-17020 |
from US $204.14 |
||
|
17362B
|
17362B
17362-17010 Tube, Air, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17362-17010 |
US $108.33 |
||
|
17700
|
17700
17700-17291
Cleaner Assy, Air
[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17700-17291 |
— | ||
|
17705
|
17705
17705-17191
Cap Sub-Assy, Air Cleaner
[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17705-17191 |
— | ||
|
17801
|
17801
17801-17010 Element Sub-Assy, Air Cleaner Filter[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17801-17010 |
from US $43.97 |
||
|
17841
|
17841
17841-50010 Gasket, Filter Element[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17841-50010 |
US $6.46 |
||
|
17845
|
17845
17845-50010 Gasket, Air Cleaner Cap[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17845-50010 |
US $11.86 |
||
|
17881
|
17881
17881-17090 Hose, Air Cleaner, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17881-17090 |
from US $53.99 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
96111-10800 |
from US $2.87 |
||
|
17881C
|
17881C
96111-10900 Clamp, Hose[08.2002 - 05.2005] 1HDFTE..HDJ101 |
96111-10900 |
from US $1.16 |
||
|
17911
|
17911
52810-60010 Duct, Cool Air Intake, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101; 2UZFE..UZJ100 |
52810-60010 |
from US $31.52 |
||
|
17940D
|
17940D
17940-17010 Intercooler Assy[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17940-17010 |
US $756.54 |
||
|
17944
|
17944
17944-17010 Protector, Intercooler Pipe[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17944-17010 |
from US $10.18 |
||
|
22204
|
22204
22204-27010 Meter Sub-Assy, Intake Air Flow[08.2002 - 05.2005] 1HDFTE..HDJ101 |
22204-27010 |
from US $163.40 |
||
|
53807C
|
53807C
53807-60050 Duct Sub-Assy, Front Fender Air, Rh[08.2002 - 12.2002] HDJ101 |
53807-60050 |
US $90.85 |
||
|
53807C
|
53807C
53807-60090 Duct Sub-Assy, Front Fender Air, Rh[12.2002 - 05.2005] HDJ101 |
53807-60090 |
US $91.73 |
||
|
91631G0830
|
91631G0830
91631-G0830 BOLT WWASHER |
91631-G0830 |
US $2.87 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9046607002
|
9046607002
90466-07002 Clamp Or Clip(For Air Hose) |
90466-07002 |
US $1.25 |
||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $2.15 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.78 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
