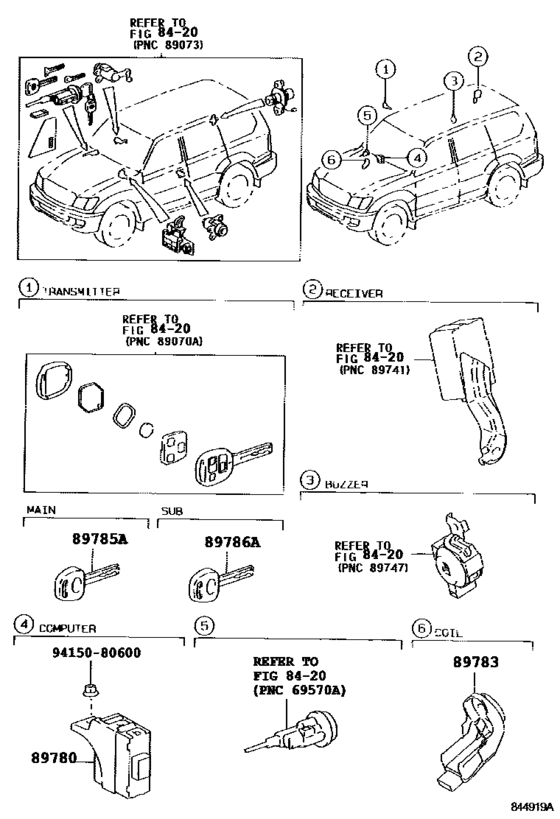

Anti-Theft Device ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89780
|
89780
89780-60250
Computer Assy, Transponder Key
[08.2002 - 05.2005] HDJ101,UZJ100 |
89780-60250 |
— | ||
|
89780
|
89780
89780-60290 Computer Assy, Transponder Key[05.2005 -] HDJ101,UZJ100 |
89780-60290 |
US $231.50 |
||
|
89783
|
89783
89783-35030
Amplifier, Transponder Key
[08.2002 - 05.2005] HDJ101,UZJ100 |
89783-35030 |
— | ||
| replacements | |||||
|
89783
|
89783
89783-48054
Amplifier, Transponder Key
[08.2002 - 05.2005] HDJ101,UZJ100 |
89783-48054 |
— | ||
|
89783
|
89783
89783-48055 Amplifier, Transponder Key[08.2002 - 05.2005] HDJ101,UZJ100 |
89783-48055 |
from US $142.23 |
||
|
89783
|
89783
89783-60110
Amplifier, Transponder Key
[05.2005 -] HDJ101,UZJ100 |
89783-60110 |
— | ||
| replacement | |||||
|
89783
|
89783
89783-60111
Amplifier, Transponder Key
[05.2005 -] HDJ101,UZJ100 |
89783-60111 |
— | ||
|
89785A
|
89785A
89785-60130
Transmitter, Transponder Key Master
[08.2002 - 05.2005] HDJ101,UZJ100 |
89785-60130 |
— | ||
|
89786A
|
89786A
89786-60140
Transmitter, Transponder Cut Key Sub
[08.2002 - 05.2005] HDJ101,UZJ100 |
89786-60140 |
— | ||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
