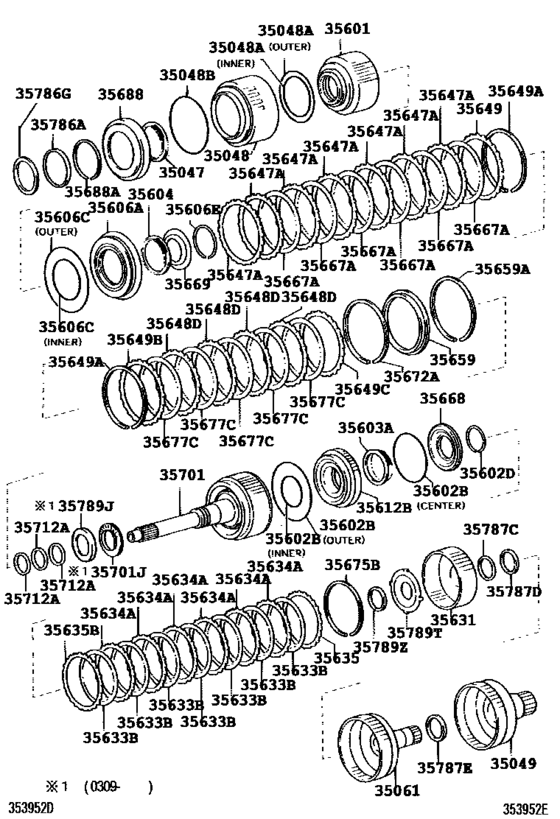

Brake Band & Multiple Disc Clutch (Atm) ([08.2002 - ] A750F (0208- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35047
|
35047
35047-60010 Spring Sub-Assy, Reverse Clutch Return[08.2002 - 05.2005] HDJ101,UZJ100 |
35047-60010 |
from US $21.72 |
||
|
35048
|
35048
35048-60010 Piston Sub-Assy, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 |
35048-60010 |
US $94.64 |
||
|
35048A
|
35048A
90301-99141 Ring, O (For Reverse Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99141 |
US $2.62 |
||
|
35048A
|
35048A
90301-99147 Ring, O (For Reverse Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-99147 |
US $2.80 |
||
|
35048B
|
35048B
90301-99140 Ring, O (For Reverse Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-99140 |
US $2.62 |
||
|
35049
|
35049
35049-60010 Hub Sub-Assy, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 |
35049-60010 |
US $125.80 |
||
|
35061
|
35061
35061-50010 Hub Sub-Assy, Forward Clutch[09.2003 - 05.2005] HDJ101,UZJ100 |
35061-50010 |
US $113.16 |
||
|
35061
|
35061
35061-60010
Hub Sub-Assy, Forward Clutch
[08.2002 - 09.2003] HDJ101,UZJ100 |
35061-60010 |
— | ||
| replacement | |||||
|
35061
|
35061
35061-50010 Hub Sub-Assy, Forward Clutch[08.2002 - 09.2003] HDJ101,UZJ100 |
35061-50010 |
US $113.16 |
||
|
35601
|
35601
35601-50030 Drum Sub-Assy, Clutch[09.2003 - 05.2005] HDJ101,UZJ100 |
35601-50030 |
US $260.62 |
||
|
35601
|
35601
35601-60010 Drum Sub-Assy, Clutch[08.2002 - 09.2003] HDJ101,UZJ100 |
35601-60010 |
US $417.87 |
||
|
35602B
|
35602B
90301-39012 Ring, O (For Forward Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-39012 |
US $1.14 |
||
|
35602B
|
35602B
90301-99096 Ring, O (For Forward Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 センタ |
90301-99096 |
from US $2.80 |
||
|
35602B
|
35602B
90301-99145 Ring, O (For Forward Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99145 |
from US $2.80 |
||
|
35602D
|
35602D
90520-35003 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-35003 |
from US $0.76 |
||
|
35603A
|
35603A
35603-60020 Spring Sub-Assy, Forward Clutch Return[08.2002 - 05.2005] HDJ101,UZJ100 |
35603-60020 |
from US $16.84 |
||
|
35604
|
35604
35604-60020 Spring Sub-Assy, Direct Clutch Return[08.2002 - 05.2005] HDJ101,UZJ100 |
35604-60020 |
from US $11.94 |
||
|
35606A
|
35606A
35652-60030 Piston Sub-Assy, Direct Clutch[08.2002 - 05.2005] HDJ101 |
35652-60030 |
US $30.87 |
||
| replacement | |||||
|
35606A
|
35606A
35652-60031 Piston Sub-Assy, Direct Clutch[08.2002 - 05.2005] HDJ101 |
35652-60031 |
US $22.36 |
||
|
35606A
|
35606A
35652-60031 Piston Sub-Assy, Direct Clutch[08.2006 -] HDJ101 |
35652-60031 |
US $22.36 |
||
|
35606C
|
35606C
90301-74002 Ring, O (For Overdrive Direct Cluch)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-74002 |
US $1.49 |
||
|
35606C
|
35606C
90301-99149 Ring, O (For Direct Clutch Piston)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99149 |
US $2.80 |
||
|
35606E
|
35606E
90520-64003 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-64003 |
US $1.16 |
||
|
35612B
|
35612B
35612-60020 Piston, Forward Clutch[08.2002 - 05.2005] HDJ101 |
35612-60020 |
US $20.60 |
||
|
35631
|
35631
35631-60040 Hub, Clutch(For Multiple Disc Clutch)[08.2002 - 05.2005] HDJ101,UZJ100 |
35631-60040 |
US $72.66 |
||
|
35633B
|
35633B
35633-60070 Disc, Clutch (For Forward Multiple Disc Clutch)[08.2002 - 05.2005] HDJ101 |
35633-60070 |
from US $24.64 |
||
|
35634A
|
35634A
35634-60020 Plate, Clutch (For Forward Multiple Disc Clutch)[08.2002 - 05.2005] HDJ101 厚さ＝１．８ |
35634-60020 |
from US $12.23 |
||
|
35635
|
35635
35635-60010 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．０，マーク ０ |
35635-60010 |
from US $33.11 |
||
|
35635
|
35635
35635-60020 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．１，マーク １ |
35635-60020 |
US $33.11 |
||
|
35635
|
35635
35635-60030 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．２，マーク ２ |
35635-60030 |
from US $35.24 |
||
|
35635
|
35635
35635-60040 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．３，マーク ３ |
35635-60040 |
from US $35.24 |
||
|
35635
|
35635
35635-60050 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．４，マーク ４ |
35635-60050 |
US $44.02 |
||
|
35635
|
35635
35635-60060 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．５，マーク ５ |
35635-60060 |
from US $44.02 |
||
|
35635
|
35635
35635-60070 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．６，マーク ６ |
35635-60070 |
from US $35.24 |
||
|
35635
|
35635
35635-60080 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．７，マーク ７ |
35635-60080 |
US $35.24 |
||
|
35635
|
35635
35635-60090 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．８，マーク ８ |
35635-60090 |
US $35.24 |
||
|
35635
|
35635
35635-60100 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．９，マーク ９ |
35635-60100 |
US $35.24 |
||
|
35635
|
35635
35635-60110 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝４．０，マーク Ａ |
35635-60110 |
US $35.24 |
||
|
35635B
|
35635B
35635-60010 Flange, Forward Clutch[08.2002 - 05.2005] HDJ101,UZJ100 |
35635-60010 |
from US $33.11 |
||
|
35647A
|
35647A
35647-60010 Plate, Clutch (For Direct Multiple Disc Clutch)[08.2002 - 05.2005] HDJ101 |
35647-60010 |
from US $13.80 |
||
|
35648D
|
35648D
35648-60010 Plate, Clutch, No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
35648-60010 |
US $16.07 |
||
|
35649
|
35649
35649-60030 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．０，マーク２ |
35649-60030 |
from US $11.50 |
||
|
35649
|
35649
35649-60040 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．１，マーク３ |
35649-60040 |
US $12.33 |
||
|
35649
|
35649
35649-60050 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．２，マーク４ |
35649-60050 |
US $13.10 |
||
|
35649
|
35649
35649-60060 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．３，マーク５ |
35649-60060 |
US $13.10 |
||
|
35649
|
35649
35649-60070 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．４，マーク６ |
35649-60070 |
US $13.10 |
||
|
35649
|
35649
35649-60080 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．５，マーク ７ |
35649-60080 |
US $13.10 |
||
|
35649
|
35649
35649-60090 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．６，マーク８ |
35649-60090 |
US $17.56 |
||
|
35649
|
35649
35649-60100 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．７，マーク９ |
35649-60100 |
US $12.38 |
||
|
35649
|
35649
35649-60110 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．８，マーク１０ |
35649-60110 |
US $13.10 |
||
|
35649A
|
35649A
90520-99074 Ring, Hole Snap(For Reverse Clutch Flange)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99074 |
from US $3.04 |
||
|
35649B
|
35649B
35649-60030 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 |
35649-60030 |
from US $11.50 |
||
|
35649C
|
35649C
35649-60010 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．８，マーク ０ |
35649-60010 |
US $13.10 |
||
|
35649C
|
35649C
35649-60020 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．９，マーク １ |
35649-60020 |
US $12.33 |
||
|
35649C
|
35649C
35649-60030 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．０，マーク ２ |
35649-60030 |
from US $11.50 |
||
|
35649C
|
35649C
35649-60040 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．１．マーク ３ |
35649-60040 |
US $12.33 |
||
|
35649C
|
35649C
35649-60050 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．２，マーク ４ |
35649-60050 |
US $13.10 |
||
|
35649C
|
35649C
35649-60060 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．３，マーク ５ |
35649-60060 |
US $13.10 |
||
|
35649C
|
35649C
35649-60070 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．４，マーク ６ |
35649-60070 |
US $13.10 |
||
|
35649C
|
35649C
35649-60080 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．５，マーク ７ |
35649-60080 |
US $13.10 |
||
|
35649C
|
35649C
35649-60090 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．６，マーク ８ |
35649-60090 |
US $17.56 |
||
|
35649C
|
35649C
35649-60100 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．７，マーク ９ |
35649-60100 |
US $12.38 |
||
|
35649C
|
35649C
35649-60110 Flange, Reverse Clutch[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝３．８，マーク Ａ |
35649-60110 |
US $13.10 |
||
|
35659
|
35659
35659-60020 Sleeve, Reverse Clutch Reaction[08.2002 - 05.2005] HDJ101,UZJ100 |
35659-60020 |
US $19.93 |
||
|
35659A
|
35659A
90520-99083 Ring, Snap (For Reverse Clutch Reaction Sleeve)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99083 |
US $3.04 |
||
|
35667A
|
35667A
35667-60020 Disk, Direct Clutch[08.2002 - 05.2005] HDJ101 |
35667-60020 |
from US $19.82 |
||
|
35668
|
35668
35668-60010 Balancer, Clutch, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
35668-60010 |
from US $28.97 |
||
|
35669
|
35669
35669-60010 Balancer, Clutch, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
35669-60010 |
from US $27.72 |
||
|
35672A
|
35672A
35672-60020 Plate, Clutch Cushion (For Direct Multiple Disc Clutch)[08.2002 - 05.2005] HDJ101,UZJ100 |
35672-60020 |
US $8.78 |
||
|
35675B
|
35675B
90520-99082 Ring, Hole Snap (For Forward Clutch Flange)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99082 |
from US $3.04 |
||
|
35677C
|
35677C
35677-60010 Disc, Rear Clutch[08.2002 - 05.2005] HDJ101,UZJ100 |
35677-60010 |
US $47.35 |
||
|
35688
|
35688
35688-50010 Balancer, Clutch, No.3[07.2003 - 05.2005] HDJ101 |
35688-50010 |
US $38.73 |
||
|
35688
|
35688
35688-60010
Balancer, Clutch, No.3
[08.2002 - 07.2003] HDJ101 |
35688-60010 |
— | ||
| replacement | |||||
|
35688
|
35688
35688-50010 Balancer, Clutch, No.3[08.2002 - 07.2003] HDJ101 |
35688-50010 |
US $38.73 |
||
|
35688A
|
35688A
90520-79001 Ring, Snap (For Reverse Clutch Return Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-79001 |
US $0.70 |
||
|
35701
|
35701
35701-60070 Shaft Sub-Assy, Input[08.2002 - 09.2003] HDJ101 |
35701-60070 |
US $487.76 |
||
| replacement | |||||
|
35701
|
35701
35701-60090 Shaft Sub-Assy, Input[08.2002 - 09.2003] HDJ101 |
35701-60090 |
US $479.02 |
||
|
35701
|
35701
35701-60090 Shaft Sub-Assy, Input[09.2003 - 05.2005] HDJ101 |
35701-60090 |
US $479.02 |
||
|
35701J
|
35701J
90374-34011 Bearing, Thrust Needle Roller (For Input Shaft Front)[09.2003 - 05.2005] HDJ101,UZJ100 |
90374-34011 |
US $14.87 |
||
|
35712A
|
35712A
35712-60010 Ring, Input Shaft Oil Seal[08.2002 - 05.2005] HDJ101,UZJ100 |
35712-60010 |
US $8.60 |
||
|
35786A
|
35786A
35786-60010 Race, Thrust Bearing, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
35786-60010 |
US $14.56 |
||
|
35786G
|
35786G
90374-71001 Bearing, Thrust Needle Roller (For Front Planetary Gear)[08.2002 - 05.2005] HDJ101,UZJ100 |
90374-71001 |
from US $13.62 |
||
|
35787C
|
35787C
35787-60010 Race, Thrust Bearing, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
35787-60010 |
from US $8.74 |
||
|
35787D
|
35787D
90374-38005 Bearing, Thrust Needle Roller[08.2002 - 05.2005] HDJ101,UZJ100 |
90374-38005 |
from US $10.48 |
||
|
35787E
|
35787E
90374-42008 Bearing, Thrust Needle Roller[08.2002 - 05.2005] HDJ101,UZJ100 |
90374-42008 |
from US $10.48 |
||
|
35789J
|
35789J
35789-50060 Race, Thrust Bearing (For Input Shaft Front)[09.2003 - 05.2005] HDJ101,UZJ100 |
35789-50060 |
US $15.03 |
||
|
35789T
|
35789T
35789-60040 Race, Thrust Bearing (Input Shaft Rear)[08.2002 - 05.2005] HDJ101,UZJ100 |
35789-60040 |
US $12.75 |
||
|
35789Z
|
35789Z
90374-21004 Bearing, Thrust Needle Roller[08.2002 - 05.2005] HDJ101,UZJ100 |
90374-21004 |
from US $12.23 |
||
