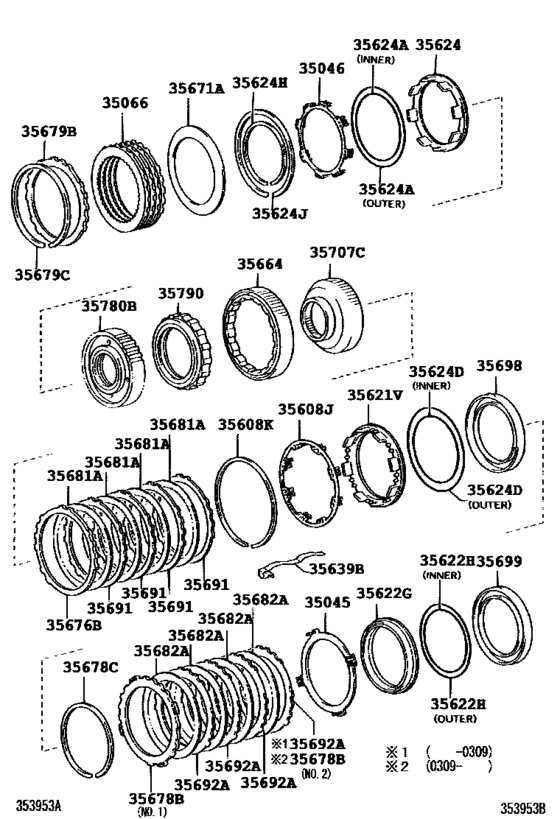

Center Support & Planetary Sun Gear (Atm) ([08.2002 - ] A750F (0208- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35045
|
35045
35045-60020 Spring Sub-Assy, Brake Piston Return,no.2[08.2002 - 05.2005] HDJ101 |
35045-60020 |
US $10.48 |
||
|
35046
|
35046
35046-60010 Spring Sub-Assy, Brake Piston Return, No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
35046-60010 |
from US $16.95 |
||
|
35066
|
35066
35066-60020 Disc Set, 2Nd Brake[08.2002 - 07.2003] HDJ101,UZJ100 |
35066-60020 |
US $285.38 |
||
| replacement | |||||
|
35066
|
35066
35066-60030 Disc Set, 2Nd Brake[08.2002 - 07.2003] HDJ101,UZJ100 |
35066-60030 |
US $192.19 |
||
|
35066
|
35066
35066-60030 Disc Set, 2Nd Brake[07.2003 - 05.2005] HDJ101,UZJ100 |
35066-60030 |
US $192.19 |
||
|
35608J
|
35608J
35608-60020 Spring Sub-Assy, Brake Piston Return[08.2002 - 05.2005] HDJ101,UZJ100 |
35608-60020 |
US $13.25 |
||
|
35608K
|
35608K
90520-99039 Ring, Hole Snap (For Overdrive Brake Return Spring)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99039 |
from US $2.48 |
||
|
35621V
|
35621V
35621-60030 Piston, Brake, No.1[08.2002 - 05.2005] HDJ101 |
35621-60030 |
from US $30.43 |
||
|
35622G
|
35622G
35622-50010 Piston, Brake, No.2[09.2003 - 05.2005] HDJ101 |
35622-50010 |
US $21.84 |
||
|
35622G
|
35622G
35622-60030 Piston, Brake, No.2[08.2002 - 09.2003] HDJ101 |
35622-60030 |
US $36.25 |
||
|
35622H
|
35622H
90301-99095 Ring, O (For Brake Piston No.2)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99095 |
from US $2.62 |
||
|
35622H
|
35622H
90301-99118 Ring, O (For Brake Piston No.2)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-99118 |
US $2.62 |
||
|
35624
|
35624
35624-60010 Piston, 2Nd Brake[08.2002 - 05.2005] HDJ101,UZJ100 |
35624-60010 |
from US $27.23 |
||
|
35624A
|
35624A
90301-99095 Ring, O (For Brake Piston No.2)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-99095 |
from US $2.62 |
||
|
35624A
|
35624A
90301-99115 Ring, O(For 2Nd Coast & Overdrive)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99115 |
from US $2.62 |
||
|
35624D
|
35624D
90301-99126 Ring, O (For Brake Piston No.4)[08.2002 - 05.2005] HDJ101,UZJ100 外側 |
90301-99126 |
from US $2.75 |
||
|
35624D
|
35624D
90301-99142 Ring, O (For Brake Piston No.4)[08.2002 - 05.2005] HDJ101,UZJ100 内側 |
90301-99142 |
US $4.40 |
||
|
35624H
|
35624H
90520-99077 Ring, Snap (For 2Nd Brake Piston)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99077 |
from US $1.60 |
||
|
35624J
|
35624J
90521-99130 Ring, Hole Snap (For 2Nd Brake Piston)[08.2002 - 05.2005] HDJ101,UZJ100 |
90521-99130 |
US $4.08 |
||
|
35639B
|
35639B
35639-60010 Spring, Brake Plate Stopper[08.2002 - 05.2005] HDJ101,UZJ100 |
35639-60010 |
US $28.10 |
||
|
35664
|
35664
35664-60010 Cylinder, 2Nd Brake[08.2002 - 05.2005] HDJ101,UZJ100 |
35664-60010 |
from US $49.80 |
||
|
35671A
|
35671A
35671-60010 Plate, Brake Cushion[08.2002 - 05.2005] HDJ101,UZJ100 |
35671-60010 |
from US $34.71 |
||
|
35676B
|
35676B
35676-60080 Flange, Brake, No.1[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．０，マーク ０ |
35676-60080 |
from US $25.33 |
||
|
35676B
|
35676B
35676-60090 Flange, Brake, No.1[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．２，マーク １ |
35676-60090 |
US $25.33 |
||
|
35676B
|
35676B
35676-60100 Flange, Brake, No.1[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．４，マーク ２ |
35676-60100 |
US $26.56 |
||
|
35676B
|
35676B
35676-60110 Flange, Brake, No.1[08.2002 - 05.2005] HDJ101,UZJ100 厚さ＝２．６，マーク ３ |
35676-60110 |
US $25.33 |
||
|
35678B
|
35678B
35678-60010 Flange, Brake, No.2[08.2002 - 09.2003] HDJ101 |
35678-60010 |
from US $13.25 |
||
|
35678B
|
35678B
35678-60050
Flange, Brake, No.2
[09.2003 - 05.2005] HDJ101 ＮＯ．２ |
35678-60050 |
— | ||
|
35678C
|
35678C
90520-99075 Ring, Snap (For Brake No.2)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99075 |
from US $2.48 |
||
|
35679B
|
35679B
35679-60010 Flange, Brake, No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
35679-60010 |
US $23.15 |
||
|
35679C
|
35679C
90520-99080 Ring, Snap (For Brake No.3)[08.2002 - 05.2005] HDJ101,UZJ100 |
90520-99080 |
from US $4.80 |
||
|
35681A
|
35681A
35681-60010 Disc, Brake, No.1[08.2002 - 05.2005] HDJ101 |
35681-60010 |
from US $6.45 |
||
|
35682A
|
35682A
35682-60010 Disc, Brake, No.2[08.2002 - 05.2005] HDJ101 |
35682-60010 |
US $13.54 |
||
| replacement | |||||
|
35682A
|
35682A
35682-50010 Disc, Brake, No.2[08.2002 - 05.2005] HDJ101 |
35682-50010 |
from US $7.05 |
||
|
35691
|
35691
35691-60010 Plate, Brake, No.1[08.2002 - 05.2005] HDJ101 |
35691-60010 |
from US $10.13 |
||
|
35692A
|
35692A
35692-60010 Plate, Brake, No.2[09.2003 - 05.2005] HDJ101,UZJ100 |
35692-60010 |
from US $10.05 |
||
|
35698
|
35698
35698-60010 Cylinder, Brake, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
35698-60010 |
from US $19.51 |
||
|
35699
|
35699
35699-60010 Cylinder, Brake, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
35699-60010 |
US $19.74 |
||
|
35707C
|
35707C
35707-60010 Race Sub-Assy, 1 Way Clutch, Inner[08.2002 - 05.2005] HDJ101,UZJ100 |
35707-60010 |
US $122.30 |
||
|
35780B
|
35780B
35780-50040 Clutch Assy, 1 Way N0.2[09.2003 - 05.2005] HDJ101,UZJ100 |
35780-50040 |
US $243.15 |
||
|
35780B
|
35780B
35780-60010
Clutch Assy, 1 Way N0.2
[08.2002 - 07.2003] HDJ101,UZJ100 |
35780-60010 |
— | ||
| replacement | |||||
|
35780B
|
35780B
35780-60020
Clutch Assy, 1 Way N0.2
[08.2002 - 07.2003] HDJ101,UZJ100 |
35780-60020 |
— | ||
|
35780B
|
35780B
35780-60020
Clutch Assy, 1 Way N0.2
[07.2003 - 09.2003] HDJ101,UZJ100 |
35780-60020 |
— | ||
|
35790
|
35790
35790-50020 Clutch Assy, 1 Way[09.2003 - 05.2005] HDJ101,UZJ100 |
35790-50020 |
US $118.81 |
||
|
35790
|
35790
35790-60010 Clutch Assy, 1 Way[08.2002 - 09.2003] HDJ101,UZJ100 |
35790-60010 |
US $199.47 |
||
