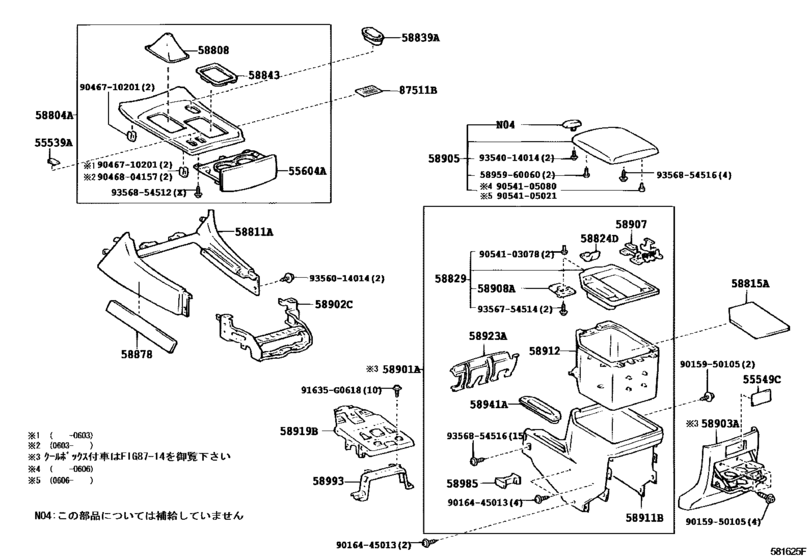

Console Box & Bracket ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.29 |
||
|
55604A
|
55604A
55604-60071
Holder Sub-Assy, Instrument Panel Cup
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
55604-60071 |
— | ||
| replacement | |||||
|
55604A
|
55604A
55604-60072
Holder Sub-Assy, Instrument Panel Cup
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
55604-60072 |
— | ||
|
55604A
|
55604A
55604-60072
Holder Sub-Assy, Instrument Panel Cup
[11.2005 -] HDJ101,UZJ100..VXL |
55604-60072 |
— | ||
|
55604A
|
55604A
55604-60160
Holder Sub-Assy, Instrument Panel Cup
[04.2006 - 06.2007] HDJ101,UZJ100..CYG,VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W) |
55604-60160 |
— | ||
|
58804A
|
58804A
58804-60102
Panel Sub-Assy, Console, Upper
[08.2002 - 05.2005] HDJ101,UZJ100..VXL |
58804-60102 |
— | ||
|
58804A
|
58804A
58804-60400 Panel Sub-Assy, Console, Upper[04.2006 - 06.2007] HDJ101,UZJ100..CYG,VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V),*(W) |
58804-60400 |
US $1,965.60 |
||
|
58808
|
58808
58808-60130 Cover Sub-Assy, Shifting Hole[08.2002 - 05.2005] HDJ101,UZJ100 |
58808-60130 |
US $59.23 |
||
|
58811A
|
58811A
58811-60210-A0
Box, Console, Front
[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
58811-60210-A0 |
— | ||
|
58811A
|
58811A
58811-60210-B0 Box, Console, Front[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
58811-60210-B0 |
US $130.60 |
||
|
58815A
|
58815A
58815-60020 Carpet, Console Box[08.2002 - 05.2005] HDJ101,UZJ100 |
58815-60020 |
US $12.75 |
||
|
58815A
|
58815A
58815-60040
Carpet, Console Box
[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
58815-60040 |
— | ||
|
58824D
|
58824D
58824-60010 Box, Console Coin[08.2002 - 05.2005] HDJ101,UZJ100 |
58824-60010 |
US $15.38 |
||
|
58829
|
58829
58806-60030 Pocket, Console Box[08.2002 - 05.2005] HDJ101,UZJ100 |
58806-60030 |
US $79.32 |
||
|
58839A
|
58839A
58839-60030
Cover, Console Box Hole
[08.2002 - 09.2002] HDJ101,UZJ100..VX,VXL |
58839-60030 |
— | ||
| replacement | |||||
|
58839A
|
58839A
58839-60040 Cover, Console Box Hole[08.2002 - 09.2002] HDJ101,UZJ100..VX,VXL |
58839-60040 |
from US $14.10 |
||
|
58839A
|
58839A
58839-60040 Cover, Console Box Hole[09.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
58839-60040 |
from US $14.10 |
||
|
58843
|
58843
58843-60050 Bezel, Shifting Hole[08.2002 - 05.2005] HDJ101,UZJ100 |
58843-60050 |
from US $25.02 |
||
|
58878
|
58878
58878-60040 Pad, Console Box Silencer, No.4[08.2002 - 05.2005] HDJ101,UZJ100 |
58878-60040 |
US $3.93 |
||
|
58901A
|
58901A
58081-60010-A0 Box Sub-Assy, Console, Rear[08.2002 - 12.2002] HDJ101,UZJ100 IVORY,TRIM0# |
58081-60010-A0 |
US $662.48 |
||
|
58901A
|
58901A
58081-60010-B0 Box Sub-Assy, Console, Rear[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
58081-60010-B0 |
US $662.48 |
||
|
58901A
|
58901A
58081-60011-A0 Box Sub-Assy, Console, Rear[12.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
58081-60011-A0 |
US $663.94 |
||
|
58901A
|
58901A
58081-60011-B0 Box Sub-Assy, Console, Rear[12.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
58081-60011-B0 |
US $663.94 |
||
|
58901A
|
58901A
58081-60020-A0 Box Sub-Assy, Console, Rear[08.2002 - 12.2002] HDJ101,UZJ100..CYG,VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),IVORY,TRIM0# |
58081-60020-A0 |
US $662.48 |
||
|
58901A
|
58901A
58081-60020-B0 Box Sub-Assy, Console, Rear[08.2002 - 12.2002] HDJ101,UZJ100..VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),STONE,TRIM1# |
58081-60020-B0 |
US $662.48 |
||
|
58901A
|
58901A
58081-60021-A0 Box Sub-Assy, Console, Rear[12.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),IVORY,TRIM0# |
58081-60021-A0 |
US $663.94 |
||
|
58901A
|
58901A
58081-60021-B0 Box Sub-Assy, Console, Rear[12.2002 - 05.2005] HDJ101,UZJ100..VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-),STONE,TRIM1# |
58081-60021-B0 |
US $663.94 |
||
|
58902C
|
58902C
58902-60030 Bracket Sub-Assy, Console Box Mounting[08.2002 - 05.2005] HDJ101,UZJ100 |
58902-60030 |
US $43.10 |
||
|
58903A
|
58903A
58903-60010-A1 Panel Sub-Assy, Console Rear End[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
58903-60010-A1 |
from US $219.62 |
||
|
58903A
|
58903A
58903-60010-B2 Panel Sub-Assy, Console Rear End[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
58903-60010-B2 |
US $209.66 |
||
|
58905
|
58905
58905-60070-A1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM0# |
58905-60070-A1 |
US $381.47 |
||
| replacement | |||||
|
58905
|
58905
58905-60071-A1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM0# |
58905-60071-A1 |
from US $378.56 |
||
|
58905
|
58905
58905-60070-B2
Door Sub-Assy, Console Compartment
[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,STONE,TRIM1# |
58905-60070-B2 |
— | ||
| replacement | |||||
|
58905
|
58905
58905-60071-B2
Door Sub-Assy, Console Compartment
[08.2002 - 12.2002] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,STONE,TRIM1# |
58905-60071-B2 |
— | ||
|
58905
|
58905
58905-60071-A1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM0# |
58905-60071-A1 |
from US $378.56 |
||
|
58905
|
58905
58905-60071-B2
Door Sub-Assy, Console Compartment
[12.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾋﾞﾆ-ﾙ ﾚｻﾞ-,STONE,TRIM1# |
58905-60071-B2 |
— | ||
|
58905
|
58905
58905-60080-A1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
58905-60080-A1 |
US $872.14 |
||
| replacement | |||||
|
58905
|
58905
58905-60081-A1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
58905-60081-A1 |
US $915.53 |
||
|
58905
|
58905
58905-60080-B1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,STONE,TRIM1# |
58905-60080-B1 |
US $872.14 |
||
| replacement | |||||
|
58905
|
58905
58905-60081-B1 Door Sub-Assy, Console Compartment[08.2002 - 12.2002] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,STONE,TRIM1# |
58905-60081-B1 |
US $872.14 |
||
|
58905
|
58905
58905-60081-A1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,IVORY,TRIM0# |
58905-60081-A1 |
US $915.53 |
||
|
58905
|
58905
58905-60081-B1 Door Sub-Assy, Console Compartment[12.2002 - 05.2005] HDJ101,UZJ100..VXL ﾎﾝｶﾞﾜ,STONE,TRIM1# |
58905-60081-B1 |
US $872.14 |
||
|
58907
|
58907
58907-60040 Hinge Sub-Assy, Console Compartment Door[08.2002 - 12.2002] HDJ101,UZJ100 |
58907-60040 |
from US $32.15 |
||
|
58907
|
58907
58907-60041 Hinge Sub-Assy, Console Compartment Door[12.2002 - 05.2005] HDJ101,UZJ100 |
58907-60041 |
US $66.39 |
||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[08.2002 - 05.2005] HDJ101,UZJ100 |
58908-32050 |
US $11.65 |
||
|
58911B
|
58911B
58911-60080-A1 Panel, Box, No.1[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
58911-60080-A1 |
US $311.58 |
||
|
58911B
|
58911B
58911-60080-B2 Panel, Box, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
58911-60080-B2 |
US $311.58 |
||
|
58912
|
58912
58912-60020
Box, Rear Console, No.2
[08.2002 - 05.2005] HDJ101,UZJ100 |
58912-60020 |
— | ||
|
58912
|
58912
58912-60031 Box, Rear Console, No.2[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
58912-60031 |
US $138.32 |
||
|
58919B
|
58919B
58919-60020 Plate, Console Box[08.2002 - 05.2005] HDJ101,UZJ100 |
58919-60020 |
US $84.91 |
||
|
58919B
|
58919B
58919-60030 Plate, Console Box[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
58919-60030 |
US $87.36 |
||
|
58923A
|
58923A
58923-60020 Panel, Console Rear End[08.2002 - 05.2005] HDJ101,UZJ100 |
58923-60020 |
US $54.45 |
||
|
58941A
|
58941A
58941-60030 Cover, Parking Brake Hole[08.2002 - 05.2005] HDJ101,UZJ100 |
58941-60030 |
US $24.02 |
||
|
58985
|
58985
58985-60060 Retainer, Console Box[08.2002 - 05.2005] HDJ101,UZJ100 |
58985-60060 |
US $12.23 |
||
|
58993
|
58993
58993-60030 Bracket, Console Box Mounting, Rear[08.2002 - 05.2005] HDJ101,UZJ100 |
58993-60030 |
US $33.37 |
||
|
87511B
|
87511B
87511-60020 Plate, Seat Heater Caution[08.2002 - 05.2005] HDJ101,UZJ100 |
87511-60020 |
US $2.91 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
5895960060
|
5895960060
58959-60060 Cushion, Instrument Panel |
58959-60060 |
from US $1.25 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9016445013
|
9016445013
90164-45013 SCREW BINDING |
90164-45013 |
US $2.15 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046804157
|
9046804157
90468-04157 Clip (Metal) |
90468-04157 |
from US $0.76 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9054105021
|
9054105021
90541-05021 CUSHION |
90541-05021 |
US $2.62 |
||
|
9054105080
|
9054105080
90541-05080 Cushion(For Glove Compartment) |
90541-05080 |
from US $1.49 |
||
|
9354014014
|
9354014014
93540-14014 Screw |
93540-14014 |
from US $1.27 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
|
9356754514
|
9356754514
93567-54514 SCREW TAPPING |
93567-54514 |
US $1.43 |
||
| replacement | |||||
|
9356754514
|
9356754514
93567-A5014 SCREW TAPPING |
93567-A5014 |
from US $0.67 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.63 |
||
|
9356854516
|
9356854516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.97 |
||
