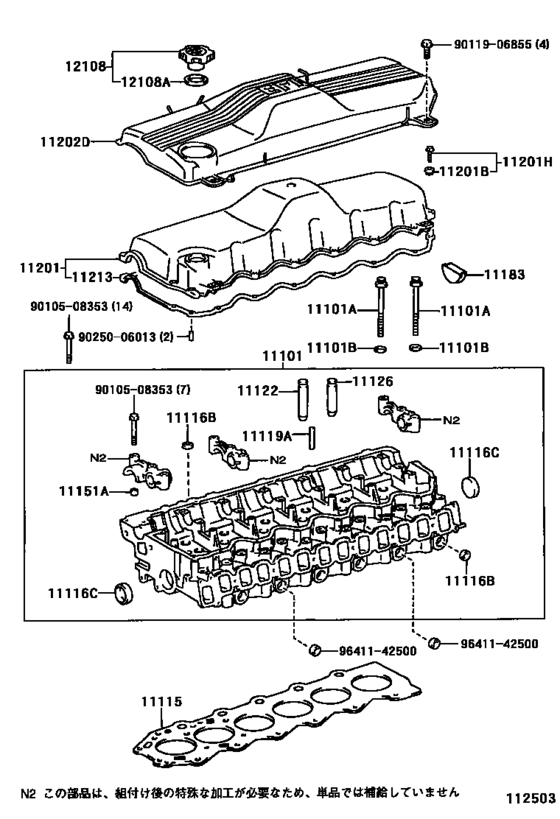

Cylinder Head ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-17044 Head Sub-Assy, Cylinder[08.2002 - 05.2005] 1HDFTE..HDJ101 |
11101-17044 |
US $3,236.69 |
||
|
11101A
|
11101A
90910-02096 Bolt(For Cylinder Head Set)[08.2002 - 05.2005] 1HDFTE..HDJ101 長さ＝１３３．５ |
90910-02096 |
from US $4.30 |
||
|
11101A
|
11101A
90910-02119 Bolt(For Cylinder Head Set)[08.2002 - 05.2005] 1HDFTE..HDJ101 長さ＝１２１．５ |
90910-02119 |
from US $6.78 |
||
|
11101B
|
11101B
90201-11032 Washer, Plate(For Cylinder Head Set)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90201-11032 |
from US $1.05 |
||
|
11115
|
11115
11115-17031-01 Gasket, Cylinder Head[08.2002 - 05.2005] 1HDFTE..HDJ101 MARK 1 |
11115-17031-01 |
from US $121.09 |
||
|
11115
|
11115
11115-17031-03 Gasket, Cylinder Head[08.2002 - 05.2005] 1HDFTE..HDJ101 MARK 3 |
11115-17031-03 |
from US $109.08 |
||
|
11115
|
11115
11115-17031-05 Gasket, Cylinder Head[08.2002 - 05.2005] 1HDFTE..HDJ101 MARK 5 |
11115-17031-05 |
from US $108.32 |
||
|
11116B
|
11116B
96411-62500 Plug, Tight, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101 |
96411-62500 |
from US $3.58 |
||
|
11116C
|
11116C
96411-64000 Plug, Tight, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
96411-64000 |
from US $4.12 |
||
|
11119A
|
11119A
90250-09007 Pin, Straight[08.2002 - 05.2005] 1HDFTE..HDJ101 長さ＝５３．５，外径＝９ |
90250-09007 |
US $3.84 |
||
|
11122
|
11122
11122-17010 Bush, Intake Valve Guide[08.2002 - 05.2005] 1HDFTE..HDJ101 ＳＴＤ |
11122-17010 |
from US $10.51 |
||
|
11122
|
11122
11123-17010 Bush, Intake Valve Guide[08.2002 - 05.2005] 1HDFTE..HDJ101 Ｏ／Ｓ ０．０５ |
11123-17010 |
US $9.77 |
||
|
11126
|
11126
11122-17010 Bush, Intake Valve Guide[08.2002 - 05.2005] 1HDFTE..HDJ101 ＳＴＤ |
11122-17010 |
from US $10.51 |
||
|
11126
|
11126
11123-17010 Bush, Intake Valve Guide[08.2002 - 05.2005] 1HDFTE..HDJ101 Ｏ／Ｓ ０．０５ |
11123-17010 |
US $9.77 |
||
|
11151A
|
11151A
90253-11021 Pin, Ring[08.2002 - 05.2005] 1HDFTE..HDJ101 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.41 |
||
|
11183
|
11183
11183-54011 Plug, Semicircular[08.2002 - 05.2005] 1HDFTE..HDJ101 |
11183-54011 |
from US $6.02 |
||
|
11201
|
11201
11210-17010 Cover Sub-Assy, Cylinder Head[08.2002 - 03.2005] 1HDFTE..HDJ101 |
11210-17010 |
from US $313.73 |
||
|
11201
|
11201
11210-17011
Cover Sub-Assy, Cylinder Head
[03.2005 - 05.2005] 1HDFTE..HDJ101 |
11210-17011 |
— | ||
|
11201B
|
11201B
90901-19047 Bolt, Washer (For Cylinder Head Cover)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90901-19047 |
from US $1.63 |
||
|
11201H
|
11201H
90901-19047 Bolt, Washer (For Cylinder Head Cover)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90901-19047 |
from US $1.63 |
||
|
11202D
|
11202D
11202-17031
Cover Sub-Assy, Cylinder Head, No.2
[08.2002 - 02.2004] 1HDFTE..HDJ101 |
11202-17031 |
— | ||
| replacement | |||||
|
11202D
|
11202D
11202-17032
Cover Sub-Assy, Cylinder Head, No.2
[08.2002 - 02.2004] 1HDFTE..HDJ101 |
11202-17032 |
— | ||
|
11202D
|
11202D
11202-17032
Cover Sub-Assy, Cylinder Head, No.2
[02.2004 - 05.2005] 1HDFTE..HDJ101 |
11202-17032 |
— | ||
|
11213
|
11213
11213-17030 Gasket, Cylinder Head Cover[08.2002 - 05.2005] 1HDFTE..HDJ101 |
11213-17030 |
from US $22.76 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.2002 - 05.2005] 1HDFTE..HDJ101 |
12180-55010 |
from US $11.29 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90430-37004 |
from US $1.24 |
||
|
9010508353
|
9010508353
90105-08353 Bolt(For Head To Camshaft Bearing Cap) |
90105-08353 |
from US $0.89 |
||
|
9011906855
|
9011906855
90119-06855 New Genuine Part |
90119-06855 |
US $1.46 |
||
|
9025006013
|
9025006013
90250-06013 Pin, Straight, No.1 |
90250-06013 |
US $0.61 |
||
|
9641142500
|
9641142500
96411-42500 Plug, Tight, No.1 |
96411-42500 |
from US $2.95 |
||
