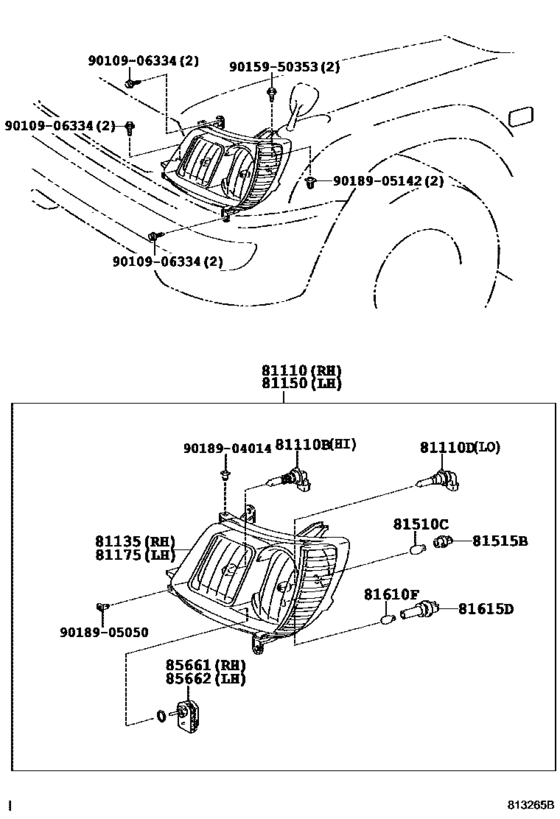

Headlamp ([05.2005 - ] (0505- )VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-60B00
Headlamp Assy, Rh
[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81110-60B00 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-60B01
Headlamp Assy, Rh
[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81110-60B01 |
— | ||
|
81110
|
81110
81110-60B01
Headlamp Assy, Rh
[08.2006 - 08.2007] HDJ101,UZJ100..VX,VXL |
81110-60B01 |
— | ||
|
81110
|
81110
81110-60C10
Headlamp Assy, Rh
[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
81110-60C10 |
— | ||
|
81110B
|
81110B
90080-81041
Bulb(For Headlamp, No.1)
[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL １２Ｖ ６５Ｗ |
90080-81041 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL １２Ｖ ６５Ｗ |
90981-13046 |
from US $15.88 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046 |
from US $15.88 |
||
|
81110D
|
81110D
90981-13047 Bulb (HB4)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ５５Ｗ，ハロゲン |
90981-13047 |
from US $14.90 |
||
|
81135
|
81135
81019-60030 Unit Assy, Headlamp, Rh[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
81019-60030 |
US $449.90 |
||
| replacement | |||||
|
81135
|
81135
81019-60032 Unit Assy, Headlamp, Rh[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
81019-60032 |
US $513.24 |
||
|
81135
|
81135
81019-60031 Unit Assy, Headlamp, Rh[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
81019-60031 |
US $451.36 |
||
| replacement | |||||
|
81135
|
81135
81019-60032 Unit Assy, Headlamp, Rh[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
81019-60032 |
US $513.24 |
||
|
81135
|
81135
81130-60B00 Unit Assy, Headlamp, Rh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81130-60B00 |
US $640.64 |
||
| replacement | |||||
|
81135
|
81135
81130-60B01 Unit Assy, Headlamp, Rh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81130-60B01 |
from US $499.93 |
||
|
81135
|
81135
81130-60B01 Unit Assy, Headlamp, Rh[08.2006 -] HDJ101,UZJ100..VX,VXL |
81130-60B01 |
from US $499.93 |
||
|
81135
|
81135
81130-60C10 Unit Assy, Headlamp, Rh[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
81130-60C10 |
US $643.93 |
||
|
81150
|
81150
81150-60A90 Headlamp Assy, Lh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81150-60A90 |
US $742.56 |
||
| replacement | |||||
|
81150
|
81150
81150-60A91
Headlamp Assy, Lh
[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81150-60A91 |
— | ||
|
81150
|
81150
81150-60A91
Headlamp Assy, Lh
[08.2006 - 08.2007] HDJ101,UZJ100..VX,VXL |
81150-60A91 |
— | ||
|
81150
|
81150
81150-60B90 Headlamp Assy, Lh[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
81150-60B90 |
US $767.31 |
||
|
81175
|
81175
81059-60030 Unit Assy, Headlamp, Lh[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
81059-60030 |
US $449.90 |
||
| replacement | |||||
|
81175
|
81175
81059-60032 Unit Assy, Headlamp, Lh[08.2002 - 08.2003] HDJ101,UZJ100..VX,VXL |
81059-60032 |
US $513.24 |
||
|
81175
|
81175
81059-60031 Unit Assy, Headlamp, Lh[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
81059-60031 |
US $451.36 |
||
| replacement | |||||
|
81175
|
81175
81059-60032 Unit Assy, Headlamp, Lh[08.2003 - 05.2005] HDJ101,UZJ100..VX,VXL |
81059-60032 |
US $513.24 |
||
|
81175
|
81175
81170-60A90 Unit Assy, Headlamp, Lh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81170-60A90 |
US $640.64 |
||
| replacement | |||||
|
81175
|
81175
81170-60A91 Unit Assy, Headlamp, Lh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
81170-60A91 |
US $728.52 |
||
|
81175
|
81175
81170-60A91 Unit Assy, Headlamp, Lh[08.2006 -] HDJ101,UZJ100..VX,VXL |
81170-60A91 |
US $728.52 |
||
|
81175
|
81175
81170-60B90 Unit Assy, Headlamp, Lh[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
81170-60B90 |
US $640.64 |
||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
from US $3.14 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[05.2005 -] HDJ101,UZJ100..VX,VXL |
90075-60028 |
from US $6.19 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ５Ｗ |
90080-81053 |
US $0.99 |
||
|
81615D
|
81615D
90075-60004 Cover, Headlamp Socket[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
90075-60004 |
from US $6.23 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[05.2005 -] HDJ101,UZJ100..VX,VXL |
90075-60077 |
from US $6 |
||
|
85661
|
85661
85661-12010 Motor, Headlamp Leveling, Rh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
85661-12010 |
US $62.33 |
||
|
85662
|
85662
85661-12010 Motor, Headlamp Leveling, Rh[05.2005 - 07.2006] HDJ101,UZJ100..VX,VXL |
85661-12010 |
US $62.33 |
||
|
9010906334
|
9010906334
90109-06334 BOLT |
90109-06334 |
from US $0.67 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.65 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.95 |
||
|
9018905050
|
9018905050
90189-05050 CLIP |
90189-05050 |
from US $1.18 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.74 |
||
