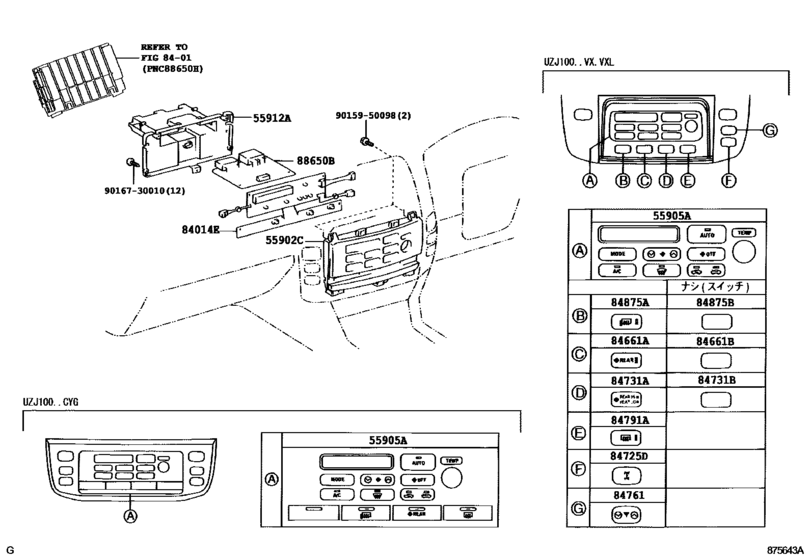

Heating & Air Conditioning - Control & Air Duct ([08.2002 - ] ﾌﾛﾝﾄ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55902C
|
55902C
55902-60100
Panel Sub-Assy, Air Conditioner
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55902-60100 |
— | ||
|
55905A
|
55905A
55905-60770
Knob, Heater Control
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55905-60770 |
— | ||
|
55912A
|
55912A
55912-60150 Housing, Heater Control[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55912-60150 |
US $12.93 |
||
|
84014E
|
84014E
84014-60180
Board Sub-Assy, Printed Wire Integration
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84014-60180 |
— | ||
|
84661B
|
84661B
84656-60070
Bezel, Switch
[08.2002 - 05.2005] HDJ101;UZJ100..VX |
84656-60070 |
— | ||
|
84725D
|
84725D
84725-60090 Knob, Differential Lock Switch[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84725-60090 |
from US $9.63 |
||
|
84731A
|
84731A
84731-60020 Knob, Heater Blower Switch[08.2002 - 05.2005] HDJ101;UZJ100..VX |
84731-60020 |
US $5.57 |
||
|
84761
|
84761
84761-60020
Knob, Antenna Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84761-60020 |
— | ||
|
84791A
|
84791A
84791-60030
Knob, Defogger Time Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84791-60030 |
— | ||
|
84875A
|
84875A
84875-60020
Knob, Outer Mirror Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84875-60020 |
— | ||
|
84875B
|
84875B
84656-60060
Bezel, Switch
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
84656-60060 |
— | ||
|
88650B
|
88650B
88650-60800
Amplifier Assy, Airconditioner
[08.2002 - 05.2005] HDJ101 |
88650-60800 |
— | ||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
