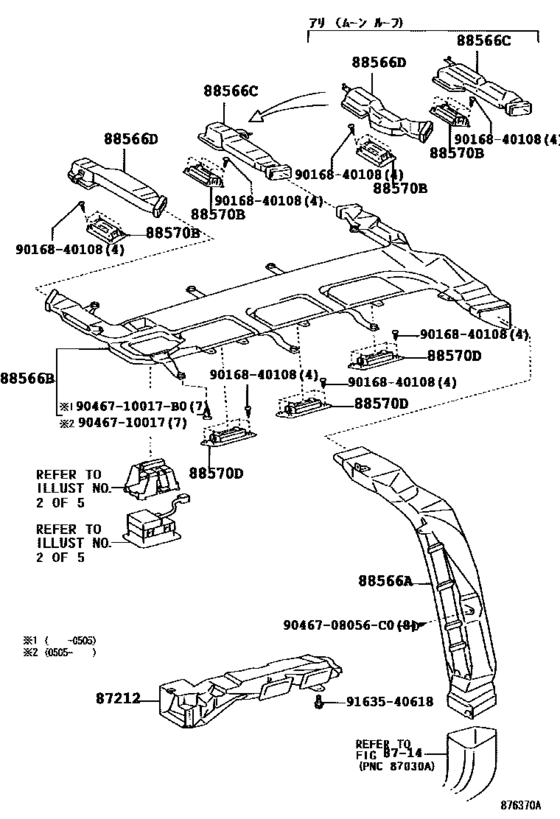

Heating & Air Conditioning - Control & Air Duct ([08.2002 - ] ﾘﾔ ﾋ-ﾀﾀﾞｸﾄ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87212
|
87212
87212-60121
Duct, Air, Rear No.1
[08.2002 - 07.2003] HDJ101,UZJ100 |
87212-60121 |
— | ||
| replacement | |||||
|
87212
|
87212
87212-60122
Duct, Air, Rear No.1
[08.2002 - 07.2003] HDJ101,UZJ100 |
87212-60122 |
— | ||
|
87212
|
87212
87212-60122
Duct, Air, Rear No.1
[07.2003 - 05.2005] HDJ101,UZJ100 |
87212-60122 |
— | ||
|
9016840108
|
9016840108
90168-40108 New Genuine Part |
90168-40108 |
US $1.25 |
||
|
9046708056C0
|
9046708056C0
90467-08056-C0 Clip |
90467-08056-C0 |
from US $0.82 |
||
|
9046710017
|
9046710017
90467-10017 Clip(For Rear Door Trim Board) |
90467-10017 |
US $2.48 |
||
| replacement | |||||
|
9046710017
|
9046710017
90467-10017-22 Clip(For Front Door No.2 Weatherstrip) |
90467-10017-22 |
US $1.61 |
||
|
9046710017B0
|
9046710017B0
90467-10017-B0 Clip, Roof Headlining |
90467-10017-B0 |
US $2.51 |
||
|
9163540618
|
9163540618
91635-40618 BOLT WWASHER |
91635-40618 |
from US $0.78 |
||
