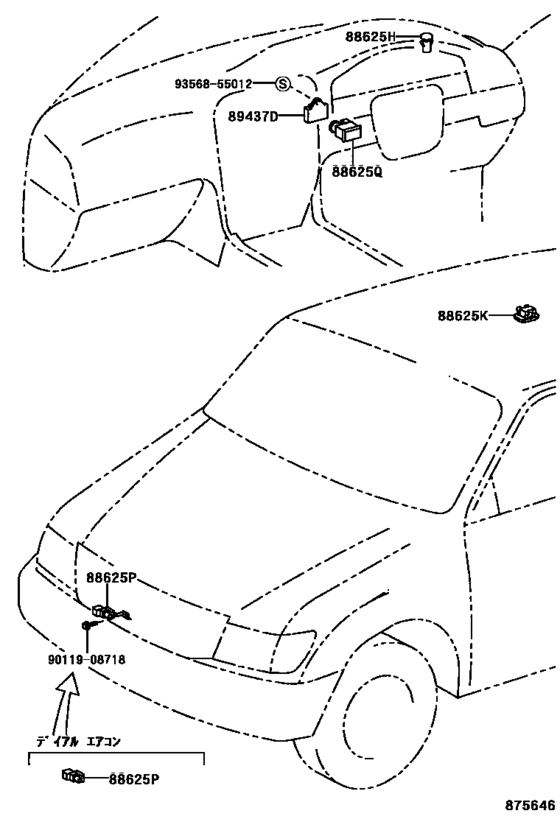

Heating & Air Conditioning - Control & Air Duct ([08.2002 - ] ｾﾝｻ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88625H
|
88625H
88625-47031 Thermistor, Cooler (Solar Sensor)[08.2002 - 05.2005] HDJ101,UZJ100 |
88625-47031 |
US $31.52 |
||
|
88625P
|
88625P
88790-60091 Thermistor, Cooler (Ambient Temp. Sensor)[08.2002 - 05.2005] HDJ101;UZJ100..VX |
88790-60091 |
US $45.95 |
||
|
88625Q
|
88625Q
88625-47021 Thermistor, Cooler No.3[08.2002 - 05.2005] HDJ101,UZJ100 |
88625-47021 |
from US $14.68 |
||
|
89437D
|
89437D
89437-60050
Cover, Sensor
[08.2002 - 05.2005] HDJ101,UZJ100 |
89437-60050 |
— | ||
|
9011908718
|
9011908718
90119-08718 BOLT WWASHER |
90119-08718 |
from US $1.92 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
