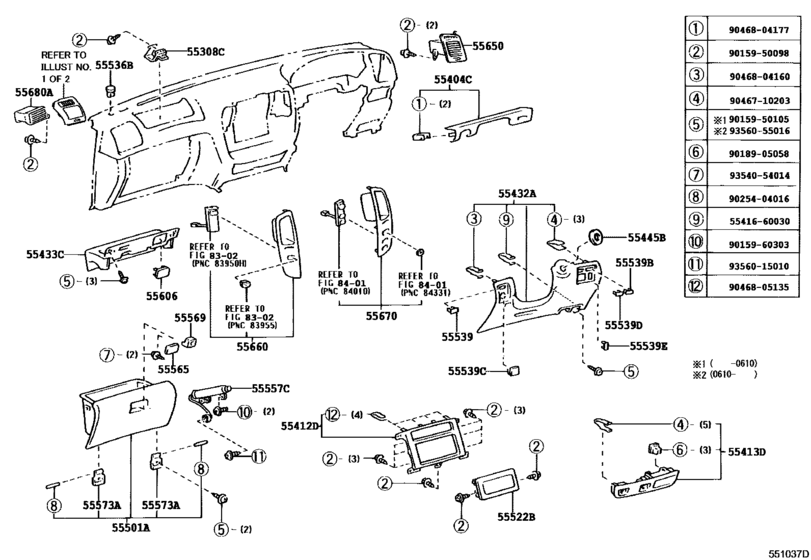

Instrument Panel & Glove Compartment ([08.2002 - ] (0208- )VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55308C
|
55308C
55308-60050
Bracket Sub-Assy, Instrument Panel, Center
[08.2002 - 05.2005] HDJ101,UZJ100 |
55308-60050 |
— | ||
|
55404C
|
55404C
55404-60110-C0 Panel Sub-Assy, Instrument Cluster Finish, No.2[08.2002 - 05.2005] UZJ100..CYG BLACK,TRIM0#; HDJ101,UZJ100..VX,VXL BLACK,TRIM0#,1# |
55404-60110-C0 |
US $44.84 |
||
|
55412D
|
55412D
55412-60310 Panel, Instrument Cluster Finish, Center[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55412-60310 |
US $109.44 |
||
|
55413D
|
55413D
55413-60150 Panel, Instrument Cluster Finish, Center Lower[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55413-60150 |
US $76.02 |
||
|
55432A
|
55432A
55302-60011-A1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55302-60011-A1 |
US $174.72 |
||
| replacement | |||||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55302-60011-B1 |
US $183.46 |
||
|
55432A
|
55432A
55302-60011-B1 Panel, Instrument Panel Finish, Lower Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
55302-60011-B1 |
US $183.46 |
||
|
55433C
|
55433C
55433-60040
Panel, Instrument Panel Finish, Lower Lh
[08.2002 - 05.2005] HDJ101,UZJ100 |
55433-60040 |
— | ||
|
55445B
|
55445B
55445-60100-A0 Plate, Instrument Panel Finish[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55445-60100-A0 |
from US $4.47 |
||
|
55445B
|
55445B
55445-60100-B0 Plate, Instrument Panel Finish[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
55445-60100-B0 |
from US $4.39 |
||
|
55501A
|
55501A
55501-60141-A1 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55501-60141-A1 |
from US $132.53 |
||
|
55501A
|
55501A
55501-60141-B2 Door Sub-Assy, Glove Compartment[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
55501-60141-B2 |
US $190.44 |
||
|
55522B
|
55522B
55522-52020 Cover, Stereo Opening[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55522-52020 |
from US $13.78 |
||
|
55539
|
55539
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.29 |
||
|
55539C
|
55539C
55548-60040-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] UZJ100..CYG BLACK,TRIM0#; HDJ101,UZJ100..VX,VXL BLACK,TRIM0#,1# |
55548-60040-C0 |
from US $4.01 |
||
|
55539D
|
55539D
55539-60020-C0 Cover, Spare Switch Hole[08.2002 - 05.2005] UZJ100..CYG BLACK,TRIM0#; HDJ101,UZJ100..VX,VXL BLACK,TRIM0#,1# |
55539-60020-C0 |
from US $3.29 |
||
|
55557C
|
55557C
55557-60010 Damper, Glove Compartment Door[08.2002 - 05.2005] HDJ101,UZJ100 |
55557-60010 |
US $25.68 |
||
|
55565
|
55565
55565-60010-A1
Handle, Glove Compartment Door Lock
[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55565-60010-A1 |
— | ||
| replacement | |||||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55565-60010-B2 |
US $4.02 |
||
|
55565
|
55565
55565-60010-B2 Handle, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
55565-60010-B2 |
US $4.02 |
||
|
55569
|
55569
55569-60020-A1
Cover, Glove Compartment Door Lock
[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55569-60020-A1 |
— | ||
| replacement | |||||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
55569-60020-B2 |
from US $5.42 |
||
|
55569
|
55569
55569-60020-B2 Cover, Glove Compartment Door Lock[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
55569-60020-B2 |
from US $5.42 |
||
|
55573A
|
55573A
55573-32010 Hinge Sub-Assy, Glove Compartment Door[08.2002 - 05.2005] HDJ101,UZJ100 |
55573-32010 |
US $5.07 |
||
|
55606
|
55606
55606-60050 Cover Sub-Assy, Instrument Panel Under, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
55606-60050 |
US $11.88 |
||
|
55650
|
55650
55650-60081-B1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
55650-60081-B1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-B0
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
55650-60130-B0 |
— | ||
|
55650
|
55650
55650-60081-E1
Register Assy, Instrument Panel, No.1
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL SANDAL WOOD,TRIM0# |
55650-60081-E1 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-60130-E0 Register Assy, Instrument Panel, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL SANDAL WOOD,TRIM0# |
55650-60130-E0 |
US $90.85 |
||
|
55660
|
55660
55660-60180 Register Assy, Instrument Panel, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾓｸﾒ |
55660-60180 |
from US $243.44 |
||
|
55660
|
55660
55660-60200
Register Assy, Instrument Panel, No.2
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55660-60200 |
— | ||
|
55660
|
55660
55660-60230 Register Assy, Instrument Panel, No.2[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
55660-60230 |
US $257.71 |
||
|
55670
|
55670
55670-60120 Register Assy, Instrument Panel, No.3[08.2002 - 05.2005] HDJ101,UZJ100..VXL ﾓｸﾒ |
55670-60120 |
US $324.98 |
||
|
55670
|
55670
55670-60140 Register Assy, Instrument Panel, No.3[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
55670-60140 |
US $300.52 |
||
|
55670
|
55670
55670-60180 Register Assy, Instrument Panel, No.3[04.2006 - 06.2007] HDJ101,UZJ100..VXL 60TH SPECIAL EDITION *(O),*(P),*(Q),*(R),*(S),*(T),*(U),*(V) |
55670-60180 |
US $308.67 |
||
|
55680A
|
55680A
55680-60060-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
55680-60060-B0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60080-B0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL DK.GRAY,TRIM1# |
55680-60080-B0 |
— | ||
|
55680A
|
55680A
55680-60060-E0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL SANDAL WOOD,TRIM0# |
55680-60060-E0 |
— | ||
| replacement | |||||
|
55680A
|
55680A
55680-60080-E0
Register Assy, Instrument Panel, No.4
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL SANDAL WOOD,TRIM0# |
55680-60080-E0 |
— | ||
|
5541660030
|
5541660030
55416-60030 Retainer, Instrument Cluster Finish Panel |
55416-60030 |
from US $1.06 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.67 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.43 |
||
|
9025404016
|
9025404016
90254-04016 Shaft, Glove Compartment Door Hinge |
90254-04016 |
US $1.40 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.96 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.68 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.91 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9356015010
|
9356015010
93560-15010 New Genuine Part |
93560-15010 |
US $1.43 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.65 |
||
