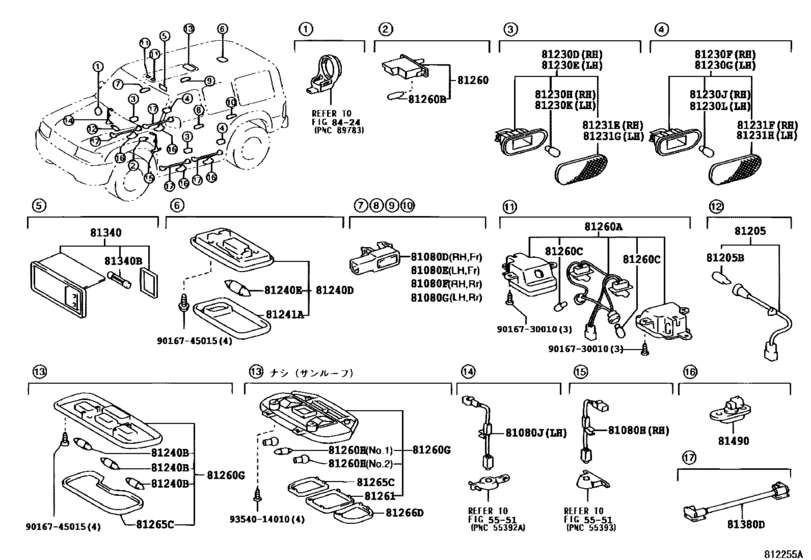

Interior Lamp ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81205
|
81205
81850-60560 Lamp Sub-Assy, Ash Receptacle[08.2002 - 05.2005] HDJ101,UZJ100 |
81850-60560 |
US $13.28 |
||
|
81205B
|
81205B
90981-11014 Bulb, Position Indicator Lamp[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ １．４Ｗ |
90981-11014 |
from US $2.15 |
||
|
81230D
|
81230D
81230-33010 Lamp Assy, Courtesy[08.2002 - 05.2005] HDJ101,UZJ100 |
81230-33010 |
from US $16.21 |
||
|
81230E
|
81230E
81310-33010 Lamp Assy, Courtesy[08.2002 - 05.2005] HDJ101,UZJ100 |
81310-33010 |
from US $15.83 |
||
|
81230F
|
81230F
81230-33010 Lamp Assy, Courtesy[08.2002 - 05.2005] HDJ101,UZJ100 |
81230-33010 |
from US $16.21 |
||
|
81230G
|
81230G
81310-33010 Lamp Assy, Courtesy[08.2002 - 05.2005] HDJ101,UZJ100 |
81310-33010 |
from US $15.83 |
||
|
81230H
|
81230H
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ３．８Ｗ |
90981-11020 |
from US $3.05 |
||
|
81230J
|
81230J
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ３．８Ｗ |
90981-11020 |
from US $3.05 |
||
|
81230K
|
81230K
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ３．８Ｗ |
90981-11020 |
from US $3.05 |
||
|
81230L
|
81230L
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ３．８Ｗ |
90981-11020 |
from US $3.05 |
||
|
81231E
|
81231E
81231-33010 Lens, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
81231-33010 |
from US $6.52 |
||
|
81231F
|
81231F
81231-33010 Lens, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
81231-33010 |
from US $6.52 |
||
|
81231G
|
81231G
81311-33010 Lens, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
81311-33010 |
from US $6.73 |
||
|
81231H
|
81231H
81311-33010 Lens, Courtesy Lamp[08.2002 - 05.2005] HDJ101,UZJ100 |
81311-33010 |
from US $6.73 |
||
|
81240B
|
81240B
90981-14004 Bulb, Room Lamp, No.1[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL １２Ｖ ８Ｗ |
90981-14004 |
from US $1.92 |
||
|
81240D
|
81240D
81240-60040-A1 Lamp Assy, Room, No.2[08.2002 - 10.2002] HDJ101,UZJ100 IVORY,TRIM0# |
81240-60040-A1 |
US $44.99 |
||
| replacement | |||||
|
81240D
|
81240D
81250-60020-A0 Lamp Assy, Room, No.2[08.2002 - 10.2002] HDJ101,UZJ100 IVORY,TRIM0# |
81250-60020-A0 |
US $44.03 |
||
|
81240D
|
81240D
81240-60040-B1 Lamp Assy, Room, No.2[08.2002 - 10.2002] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
81240-60040-B1 |
US $44.99 |
||
| replacement | |||||
|
81240D
|
81240D
81250-60020-B0 Lamp Assy, Room, No.2 (Md.Gray)[08.2002 - 10.2002] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
81250-60020-B0 |
US $44.03 |
||
|
81240D
|
81240D
81250-60020-A0 Lamp Assy, Room, No.2[10.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
81250-60020-A0 |
US $44.03 |
||
|
81240D
|
81240D
81250-60020-B0 Lamp Assy, Room, No.2 (Md.Gray)[10.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
81250-60020-B0 |
US $44.03 |
||
|
81240E
|
81240E
90981-14004 Bulb, Room Lamp, No.1[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ８Ｗ |
90981-14004 |
from US $1.92 |
||
|
81241A
|
81241A
81241-32031
Lens, Room Lamp, No.1
[08.2002 - 05.2005] HDJ101,UZJ100 |
81241-32031 |
— | ||
|
81260
|
81260
81260-33030 Lamp Assy, Glove Box[08.2002 - 05.2005] HDJ101,UZJ100 |
81260-33030 |
from US $12.22 |
||
|
81260A
|
81260A
81260-60080-A0 Lamp Assy, Map[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0# |
81260-60080-A0 |
from US $70.47 |
||
|
81260A
|
81260A
81260-60080-B0 Lamp Assy, Map[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1# |
81260-60080-B0 |
US $94.64 |
||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.01 |
||
|
81260C
|
81260C
99132-12050 Bulb (12V 5W)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81260C
|
81260C
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ ５Ｗ |
90080-81053 |
US $0.99 |
||
|
81260G
|
81260G
81260-60061-A1 Lamp Assy, Map, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾅｼ(ｻﾝ ﾙ-ﾌ),IVORY,TRIM0# |
81260-60061-A1 |
US $138.32 |
||
|
81260G
|
81260G
81260-60061-B1 Lamp Assy, Map, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾅｼ(ｻﾝ ﾙ-ﾌ),STONE,TRIM1# |
81260-60061-B1 |
US $145.02 |
||
|
81260G
|
81260G
81260-60150-A0 Lamp Assy, Map, No.2[08.2002 - 10.2002] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
81260-60150-A0 |
US $131.04 |
||
| replacement | |||||
|
81260G
|
81260G
81260-60151-A0 Lamp Assy, Map, No.2[08.2002 - 10.2002] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
81260-60151-A0 |
from US $94.83 |
||
|
81260G
|
81260G
81260-60150-B0 Lamp Assy, Map, No.2[08.2002 - 10.2002] HDJ101,UZJ100..VXL STONE,TRIM1# |
81260-60150-B0 |
US $131.04 |
||
| replacement | |||||
|
81260G
|
81260G
81260-60151-B0 Lamp Assy, Map, No.2[08.2002 - 10.2002] HDJ101,UZJ100..VXL STONE,TRIM1# |
81260-60151-B0 |
US $122.23 |
||
|
81260G
|
81260G
81260-60151-A0 Lamp Assy, Map, No.2[10.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL IVORY,TRIM0# |
81260-60151-A0 |
from US $94.83 |
||
|
81260G
|
81260G
81260-60151-B0 Lamp Assy, Map, No.2[10.2002 - 05.2005] HDJ101,UZJ100..VXL STONE,TRIM1# |
81260-60151-B0 |
US $122.23 |
||
|
81260H
|
81260H
90981-14011 Bulb, Room Lamp, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ８Ｗ,ＮＯ．１ |
90981-14011 |
from US $1.84 |
||
|
81260H
|
81260H
99132-12050 Bulb (12V 5W)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ５Ｗ,ＮＯ．２ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81260H
|
81260H
90080-81053 Bulb(For Clearance Lamp)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ５Ｗ,ＮＯ．２ |
90080-81053 |
US $0.99 |
||
|
81261
|
81261
81261-60060 Lens And Cover, Map Lamp[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81261-60060 |
US $7.83 |
||
|
81265C
|
81265C
81265-60060 Lens, Map Lamp, No.1[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾅｼ(ｻﾝ ﾙｰﾌ) |
81265-60060 |
US $7.28 |
||
|
81265C
|
81265C
81265-60070 Lens, Map Lamp, No.1[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
81265-60070 |
US $13.51 |
||
|
81266D
|
81266D
81266-60060 Lens, Map Lamp, No.2[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81266-60060 |
US $7.27 |
||
|
81340
|
81340
81340-33090-A1
Lamp Assy, Vanity
[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0#,右側 |
81340-33090-A1 |
— | ||
|
81340
|
81340
81340-33090-B8 Lamp Assy, Vanity[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1#,右側 |
81340-33090-B8 |
US $113.57 |
||
|
81340
|
81340
81350-33040-A1
Lamp Assy, Vanity
[08.2002 - 05.2005] HDJ101,UZJ100 IVORY,TRIM0#,左側 |
81350-33040-A1 |
— | ||
|
81340
|
81340
81350-33040-B8 Lamp Assy, Vanity[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL STONE,TRIM1#,左側 |
81350-33040-B8 |
US $113.57 |
||
|
81340B
|
81340B
90981-14003 Bulb (For Vanity Lamp)[08.2002 - 05.2005] HDJ101,UZJ100 １２Ｖ １．５Ｗ |
90981-14003 |
US $0.96 |
||
|
81380D
|
81380D
81380-60030 Lamp Assy, Step[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
81380-60030 |
US $323.23 |
||
|
81490
|
81490
81490-60010 Lamp Assy, Foot[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
81490-60010 |
from US $24.75 |
||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
|
9016745015
|
9016745015
90167-45015 New Genuine Part |
90167-45015 |
US $1.46 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.89 |
||
