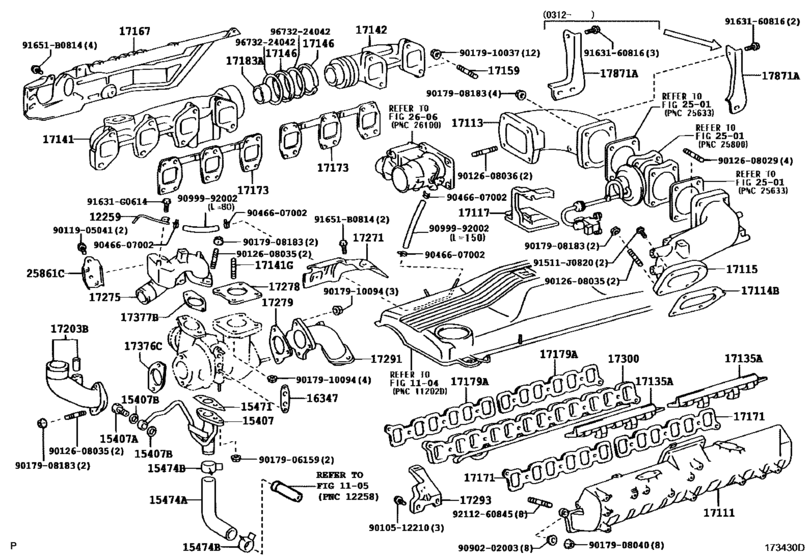

Manifold ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12259
|
12259
12259-17020 Pipe, Oil Return, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
12259-17020 |
US $9.17 |
||
|
15407
|
15407
15407-17030 Pipe Sub-Assy, Turbo Oil Inlet[08.2002 - 05.2005] 1HDFTE..HDJ101 |
15407-17030 |
from US $23.03 |
||
|
15407A
|
15407A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90401-12097 |
from US $2.87 |
||
|
15407B
|
15407B
90430-12221 Gasket[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90430-12221 |
from US $1.05 |
||
|
15471
|
15471
15471-17010 Gasket, Turbo Oil Inlet[08.2002 - 05.2005] 1HDFTE..HDJ101 |
15471-17010 |
from US $5.68 |
||
|
15474A
|
15474A
15491-17010 Hose, Turbo Oil Outlet[08.2002 - 05.2005] 1HDFTE..HDJ101 |
15491-17010 |
US $31.25 |
||
|
15474B
|
15474B
96134-52600 Clip Or Clamp(For Ventilation Hose)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
96134-52600 |
from US $2.79 |
||
|
16347
|
16347
16347-27020 Gasket, Water By-Pass[08.2002 - 05.2005] 1HDFTE..HDJ101 |
16347-27020 |
from US $0.51 |
||
|
17111
|
17111
17111-17060 Manifold, Intake[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17111-17060 |
US $503.19 |
||
|
17113
|
17113
17113-17100 Pipe, Intake[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17113-17100 |
US $265.57 |
||
|
17114B
|
17114B
17116-17020 Gasket, Intake Flange[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17116-17020 |
from US $6.42 |
||
|
17115
|
17115
17115-17021 Gasket, Intake Manifold Hole Cover[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17115-17021 |
US $263.83 |
||
|
17117
|
17117
17117-17030 Insulator, Intake Pipe[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17117-17030 |
US $33.49 |
||
|
17135A
|
17135A
17135-17010 Insulator, Intake Manifold, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17135-17010 |
US $44.35 |
||
|
17141
|
17141
17141-17040
Manifold, Exhaust
[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17141-17040 |
— | ||
|
17141G
|
17141G
90116-10117 Bolt, Stud(For Turbine Housing)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90116-10117 |
from US $1.43 |
||
|
17142
|
17142
17142-17020 Case, Exhaust Manifold, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17142-17020 |
US $342.45 |
||
|
17146
|
17146
17151-17010 Ring, Exhaust Manifold[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17151-17010 |
from US $7.20 |
||
|
17159
|
17159
90116-10171 Bolt, Stud(For Manifold To Cylinder Head)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90116-10171 |
from US $1.10 |
||
|
17167
|
17167
17167-17090 Insulator, Exhaust Manifold Heat, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17167-17090 |
US $110.66 |
||
|
17171
|
17171
17171-17030 Gasket, Intake To Exhaust Manifold[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17171-17030 |
from US $12.62 |
||
|
17173
|
17173
17173-17020 Gasket, Exhaust Manifold To Head[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17173-17020 |
from US $22.40 |
||
|
17179A
|
17179A
17179-17020 Gasket, Intake Manifold, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17179-17020 |
from US $6.52 |
||
|
17183A
|
17183A
17183-17010 Collar, Manifold[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17183-17010 |
from US $3.72 |
||
|
17203B
|
17203B
17203-17030 Elbow Sub-Assy, Compressor Inlet[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17203-17030 |
US $154.34 |
||
|
17271
|
17271
17271-17030 Insulator, Turbo, No.1[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17271-17030 |
US $101.92 |
||
|
17275
|
17275
17275-17031 Elbow, Compressor Outlet[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17275-17031 |
US $241.70 |
||
|
17278
|
17278
17278-17020 Gasket, Turbo To Exhaust Manifold[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17278-17020 |
from US $22.88 |
||
|
17279
|
17279
17279-17030 Gasket, Turbine Outlet Elbow[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17279-17030 |
from US $10.28 |
||
|
17291
|
17291
17291-17040
Elbow, Turbine Outlet
[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17291-17040 |
— | ||
|
17293
|
17293
17293-17030 Stay, Turbocharger[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17293-17030 |
US $47.17 |
||
|
17300
|
17300
17300-17010 Valve Assy, Intake Air Control[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17300-17010 |
US $1,013.38 |
||
|
17376C
|
17376C
17376-17010 Gasket, Air Tube[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17376-17010 |
from US $1.94 |
||
|
17377B
|
17377B
17377-88410 Gasket, Air Tube, No.2[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17377-88410 |
from US $6.42 |
||
|
17871A
|
17871A
17871-17020
Stay, Air Connector
[08.2002 - 12.2003] 1HDFTE..HDJ101 |
17871-17020 |
— | ||
|
17871A
|
17871A
17871-17030 Stay, Air Connector[12.2003 - 05.2005] 1HDFTE..HDJ101 |
17871-17030 |
US $34.07 |
||
|
25861C
|
25861C
25861-17030 Bracket, Vacuum Switching Valve[08.2002 - 05.2005] 1HDFTE..HDJ101 |
25861-17030 |
US $7.72 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.65 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9010512210
|
9010512210
90105-12210 BOLT WASHER BASED |
90105-12210 |
from US $1.62 |
||
|
9011905041
|
9011905041
90119-05041 New Genuine Part |
90119-05041 |
US $1.60 |
||
|
9012608029
|
9012608029
90126-08029 STUD HEX LOBULAR |
90126-08029 |
US $12.19 |
||
|
9012608035
|
9012608035
90126-08035 STUD, HEX LOBULAR |
90126-08035 |
from US $2.41 |
||
|
9012608036
|
9012608036
90126-08036 New Genuine Part |
90126-08036 |
US $5.97 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.57 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.05 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.24 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.43 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.39 |
||
|
9046607002
|
9046607002
90466-07002 Clamp Or Clip(For Air Hose) |
90466-07002 |
US $1.25 |
||
|
9090202003
|
9090202003
90902-02003 WASHER PLATE |
90902-02003 |
from US $3.23 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9163160816
|
9163160816
91631-60816 BOLT |
91631-60816 |
from US $1.05 |
||
|
9211260845
|
9211260845
92112-60845 New Genuine Part |
92112-60845 |
US $2.04 |
||
|
9673224042
|
9673224042
96732-24042 GASKET |
96732-24042 |
from US $2.17 |
||
