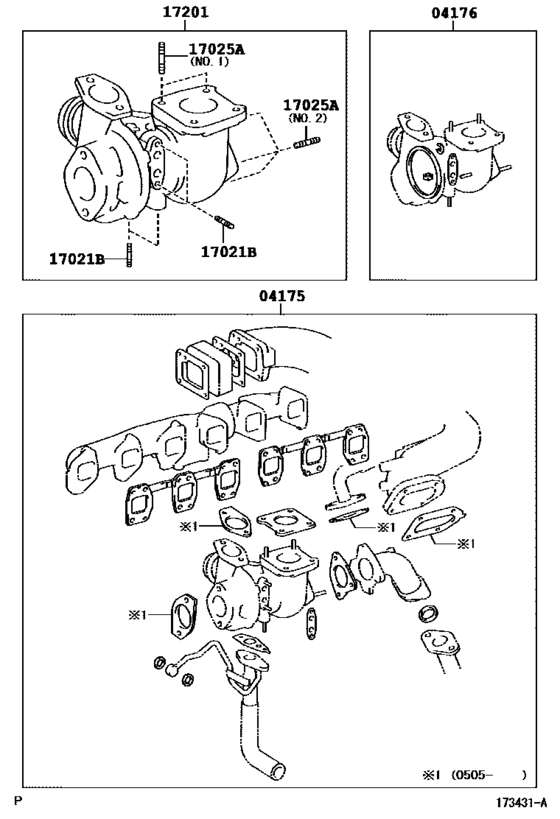

Manifold ([08.2002 - ] (0208- )1HDFTE) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04175
|
04175
04175-17060 Gasket Kit, Turbocharger[08.2002 - 05.2005] 1HDFTE..HDJ101 |
04175-17060 |
US $172.97 |
||
|
04175
|
04175
04175-17120 Gasket Kit, Turbocharger[05.2005 -] 1HDFTE..HDJ101 |
04175-17120 |
US $222.77 |
||
|
04176
|
04176
04176-17010 Seal Kit, Turbocharger[08.2002 - 05.2004] 1HDFTE..HDJ101 |
04176-17010 |
from US $16.16 |
||
|
17021B
|
17021B
90116-06048 Bolt, Stud(For Oil Pan)[08.2002 - 05.2005] 1HDFTE..HDJ101 |
90116-06048 |
from US $0.65 |
||
|
17025A
|
17025A
90116-10117 Bolt, Stud(For Turbine Housing)[08.2002 - 05.2005] 1HDFTE..HDJ101 ＮＯ．１ |
90116-10117 |
from US $1.43 |
||
|
17025A
|
17025A
90116-10125 Bolt, Stud(For Turbine Housing)[08.2002 - 05.2005] 1HDFTE..HDJ101 ＮＯ．２ |
90116-10125 |
from US $1.25 |
||
|
17201
|
17201
17201-17050 Turbocharger Sub-Assy[08.2002 - 05.2005] 1HDFTE..HDJ101 |
17201-17050 |
from US $2,803.67 |
