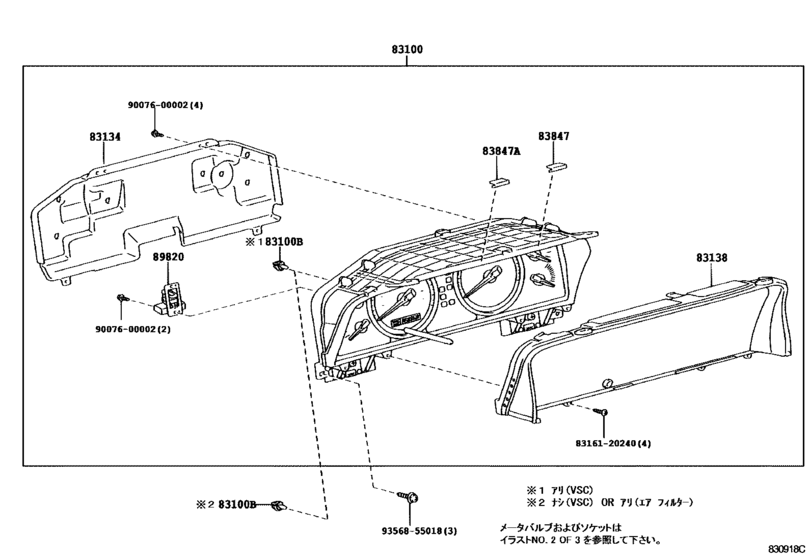

Meter ([08.2002 - ] ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-60B50
Meter Assy, Combination
[08.2003 - 05.2005] HDJ101 ｱﾘ(VSC) |
83800-60B50 |
— | ||
|
83100
|
83100
83800-60B51
Meter Assy, Combination
[05.2005 -] HDJ101 ｱﾘ(VSC) |
83800-60B51 |
— | ||
|
83100
|
83100
83800-6D710 Meter Assy, Combination[08.2002 - 05.2005] HDJ101 |
83800-6D710 |
US $1,747.20 |
||
|
83100
|
83100
83800-6D711
Meter Assy, Combination
[05.2005 -] HDJ101 |
83800-6D711 |
— | ||
|
83100B
|
83100B
90010-06032 Bulb, Combination Meter, No.1[08.2002 - 05.2005] HDJ101,UZJ100 １４Ｖ ０．８４Ｗ，ソケット付き |
90010-06032 |
from US $3.12 |
||
|
83134
|
83134
83821-6D870 Cover, Combination Meter, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
83821-6D870 |
US $34.51 |
||
|
83138
|
83138
83852-6D660 Glass, Speedometer[08.2002 - 05.2005] HDJ101,UZJ100 |
83852-6D660 |
from US $49.82 |
||
|
83847
|
83847
83847-6D870
Cushion, Combination Speedmeter, No.1
[08.2002 - 05.2005] HDJ101,UZJ100 |
83847-6D870 |
— | ||
|
83847A
|
83847A
83848-6D870
Cushion, Combination Speedmeter
[08.2002 - 05.2005] HDJ101,UZJ100 |
83848-6D870 |
— | ||
|
89820
|
89820
89820-60030
Sensor Assy, Inclination
[08.2002 - 05.2005] HDJ101,UZJ100 |
89820-60030 |
— | ||
|
8316120240
|
8316120240
83161-20240 Case, Combination Meter Mirror, No.1 |
83161-20240 |
US $1.69 |
||
|
9007600002
|
9007600002
90076-00002 SCREW TAPPING |
90076-00002 |
US $2.97 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.59 |
