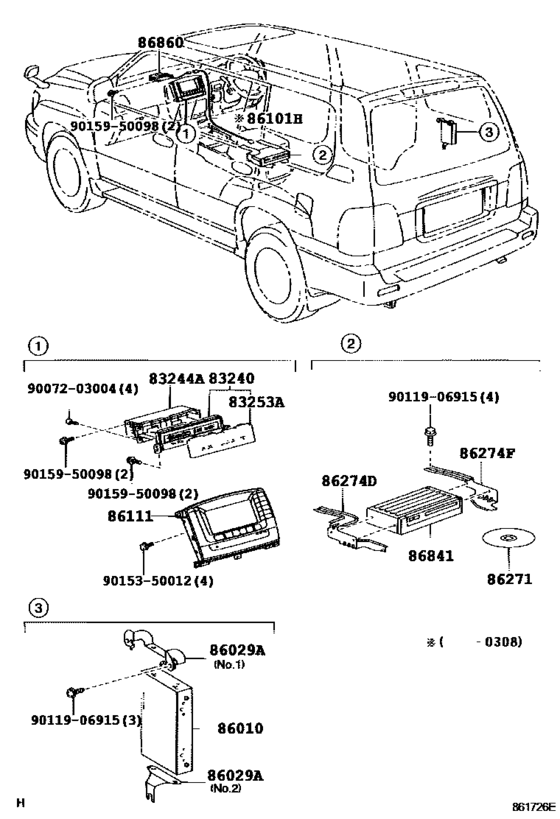

Navigation & Front Monitor Display ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83240
|
83240
83240-60220 Case Assy, Multi Information Display[08.2002 - 05.2005] HDJ101,UZJ100 |
83240-60220 |
US $56.09 |
||
|
83244A
|
83244A
83265-60220 Computer, Multi Information Display[08.2002 - 05.2005] HDJ101,UZJ100 |
83265-60220 |
US $728.58 |
||
|
83253A
|
83253A
83253-60220 Glass, Accessory Meter[08.2002 - 05.2005] HDJ101,UZJ100 |
83253-60220 |
US $33.20 |
||
|
86010
|
86010
86010-51040 Tuner Assy, Television[08.2002 - 09.2002] HDJ101,UZJ100..CYG,VXL |
86010-51040 |
US $1,630.72 |
||
| replacement | |||||
|
86010
|
86010
86016-50010 Tuner Assy, Television[08.2002 - 09.2002] HDJ101,UZJ100..CYG,VXL |
86016-50010 |
US $1,630.72 |
||
|
86010
|
86010
86016-50010 Tuner Assy, Television[09.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86016-50010 |
US $1,630.72 |
||
|
86029A
|
86029A
86029-60010 Bracket Set, Television, No.1[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ＮＯ．１ |
86029-60010 |
US $12.23 |
||
| replacement | |||||
|
86029A
|
86029A
86029-60011 Bracket Set, Television, No.1[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ＮＯ．１ |
86029-60011 |
US $12.08 |
||
|
86029A
|
86029A
86029-60011 Bracket Set, Television, No.1[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ＮＯ．１ |
86029-60011 |
US $12.08 |
||
|
86029A
|
86029A
86029-60020 Bracket Set, Television, No.1[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ＮＯ．２ |
86029-60020 |
US $8.15 |
||
| replacement | |||||
|
86029A
|
86029A
86029-60021 Bracket Set, Television, No.1[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ＮＯ．２ |
86029-60021 |
US $9.32 |
||
|
86029A
|
86029A
86029-60021 Bracket Set, Television, No.1[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ＮＯ．２ |
86029-60021 |
US $9.32 |
||
|
86101H
|
86101H
86101-60170 Cord Sub-Assy, Antenna[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86101-60170 |
US $35.82 |
||
|
86111
|
86111
86111-60110 Multi-Display[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ＤＥＮＳＯ |
86111-60110 |
US $3,887.52 |
||
| replacement | |||||
|
86111
|
86111
86111-60111 Multi-Display[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ＤＥＮＳＯ |
86111-60111 |
US $3,887.52 |
||
|
86111
|
86111
86111-60111 Multi-Display[05.2005 - 08.2007] HDJ101,UZJ100..CYG,VXL ＤＥＮＳＯ |
86111-60111 |
US $3,887.52 |
||
|
86111
|
86111
86111-60130 Multi-Display[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ＤＥＮＳＯ |
86111-60130 |
US $3,887.52 |
||
|
86271
|
86271
86271-44020 Disc, Disc Player[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86271-44020 |
US $364 |
||
| replacement | |||||
|
86271
|
86271
08664-0AK15 New Genuine Part[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
08664-0AK15 |
US $240 |
||
|
86271
|
86271
86271-52041
Disc, Disc Player
[08.2003 - 04.2004] HDJ101,UZJ100..CYG,VXL |
86271-52041 |
— | ||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[08.2003 - 04.2004] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52042 Disc, Disc Player[04.2004 - 09.2004] HDJ101,UZJ100..CYG,VXL |
86271-52042 |
US $182 |
||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[04.2004 - 09.2004] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52043 Disc, Disc Player[10.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86271-52043 |
US $182 |
||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[10.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52044 Disc, Disc Player[08.2005 - 09.2005] HDJ101,UZJ100..CYG,VXL |
86271-52044 |
US $182 |
||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[08.2005 - 09.2005] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52045
Disc, Disc Player
[10.2005 - 03.2006] HDJ101,UZJ100..CYG,VXL |
86271-52045 |
— | ||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[10.2005 - 03.2006] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52046
Disc, Disc Player
[04.2006 - 08.2006] HDJ101,UZJ100..CYG,VXL |
86271-52046 |
— | ||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[04.2006 - 08.2006] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52047
Disc, Disc Player
[09.2006 - 03.2007] HDJ101,UZJ100..CYG,VXL |
86271-52047 |
— | ||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[09.2006 - 03.2007] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86271
|
86271
86271-52048
Disc, Disc Player
[04.2007 -] HDJ101,UZJ100..CYG,VXL |
86271-52048 |
— | ||
| replacement | |||||
|
86271
|
86271
08664-0AK16
New Genuine Part
[04.2007 -] HDJ101,UZJ100..CYG,VXL |
08664-0AK16 |
— | ||
|
86274D
|
86274D
86274-60060 Bracket, Disc Player[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86274-60060 |
US $12.52 |
||
|
86274D
|
86274D
86274-60240 Bracket, Disc Player[08.2003 - 03.2004] HDJ101,UZJ100..CYG,VXL |
86274-60240 |
US $14.56 |
||
|
86274F
|
86274F
86274-60070 Bracket, Disc Player, No.2[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86274-60070 |
US $15.87 |
||
|
86274F
|
86274F
86274-60250 Bracket, Disc Player, No.2[08.2003 - 03.2004] HDJ101,UZJ100..CYG,VXL |
86274-60250 |
US $13.69 |
||
|
86841
|
86841
86841-30091 Computer, Navigation[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86841-30091 |
US $4,164.16 |
||
|
86841
|
86841
86841-50080 Computer, Navigation[08.2003 - 09.2004] HDJ101,UZJ100..CYG,VXL |
86841-50080 |
US $4,164.16 |
||
|
86860
|
86860
86860-60080
Antenna Assy, Navigation
[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86860-60080 |
— | ||
|
86860
|
86860
86870-60011 Antenna Assy, Navigation[07.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｵﾝｾｲ ﾆﾝｼｷ |
86870-60011 |
US $502.32 |
||
|
9007203004
|
9007203004
90072-03004 SCREWTAPPING |
90072-03004 |
from US $0.46 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
