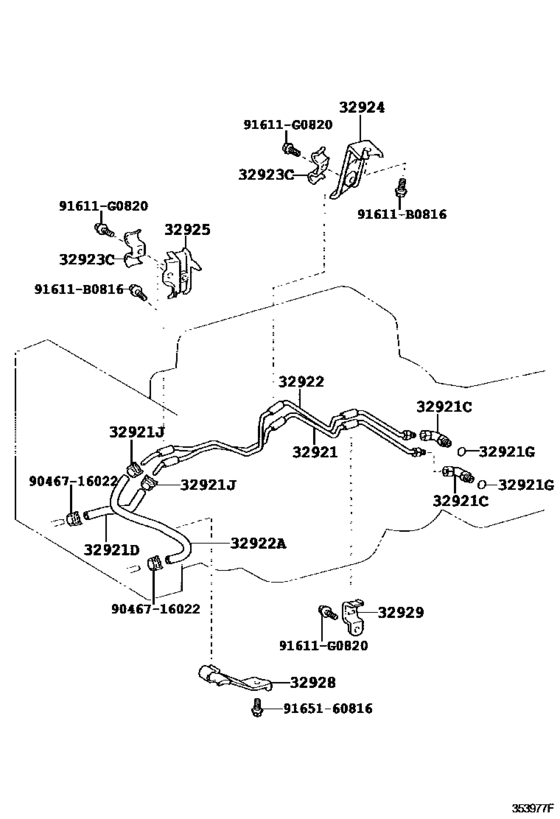

Oil Cooler & Tube (Atm) ([08.2002 - ] A750F (0208- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-60220 Tube, Oil Cooler Inlet, No.1[08.2003 - 05.2005] HDJ101 |
32921-60220 |
US $26.38 |
||
|
32921
|
32921
32921-60360
Tube, Oil Cooler Inlet, No.1
[08.2002 - 08.2003] HDJ101 |
32921-60360 |
— | ||
|
32921C
|
32921C
90407-16009 Union(For Oil Cooler Tube)[08.2002 - 05.2005] HDJ101 |
90407-16009 |
from US $6.99 |
||
|
32921D
|
32921D
90445-17096 Hose, Oil Cooler Water Outlet[08.2002 - 05.2005] HDJ101 |
90445-17096 |
from US $11.50 |
||
|
32921G
|
32921G
90301-11006 O Ring, Transaxle Case Elbow[08.2002 - 05.2005] HDJ101,UZJ100 |
90301-11006 |
from US $2.43 |
||
|
32921J
|
32921J
90467-16013
Clip(For Oil Return Hose)
[08.2002 - 05.2005] HDJ101,UZJ100 |
90467-16013 |
— | ||
| replacement | |||||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[08.2002 - 05.2005] HDJ101,UZJ100 |
90467-16022 |
from US $2.26 |
||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[05.2005 -] HDJ101,UZJ100 |
90467-16022 |
from US $2.26 |
||
|
32922
|
32922
32922-60240 Tube, Oil Cooler Outlet, No.1[08.2003 - 05.2005] HDJ101 |
32922-60240 |
US $26.38 |
||
|
32922
|
32922
32922-60380
Tube, Oil Cooler Outlet, No.1
[08.2002 - 08.2003] HDJ101 |
32922-60380 |
— | ||
|
32922A
|
32922A
32941-60290 Hose(For Oil Cooler Inlet)[08.2002 - 05.2005] HDJ101 |
32941-60290 |
from US $45.56 |
||
|
32923C
|
32923C
90462-12076 Clamp, Automatic Transmission Oil Cooler Tube[08.2002 - 05.2005] HDJ101 |
90462-12076 |
US $4.66 |
||
|
32924
|
32924
32924-60110
Clamp, Oil Cooler Tube, No.2
[08.2002 - 05.2005] HDJ101 |
32924-60110 |
— | ||
|
32925
|
32925
32925-60130
Clamp, Oil Cooler Tube, No.3
[08.2002 - 05.2005] HDJ101 |
32925-60130 |
— | ||
|
32928
|
32928
32928-60120
Clamp, Flexible Hose, No.1
[08.2002 - 05.2005] HDJ101 |
32928-60120 |
— | ||
| replacement | |||||
|
32928
|
32928
32928-60160
Clamp, Flexible Hose, No.1
[08.2002 - 05.2005] HDJ101 |
32928-60160 |
— | ||
|
32928
|
32928
32928-60160
Clamp, Flexible Hose, No.1
[06.2007 -] HDJ101 |
32928-60160 |
— | ||
|
32929
|
32929
32929-24060 Clamp(For Oil Cooler Tube)[08.2002 - 05.2005] HDJ101,UZJ100 |
32929-24060 |
US $5.02 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9046716022
|
9046716022
90467-16022 Clip(For Water Inlet Hose) |
90467-16022 |
from US $2.26 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
