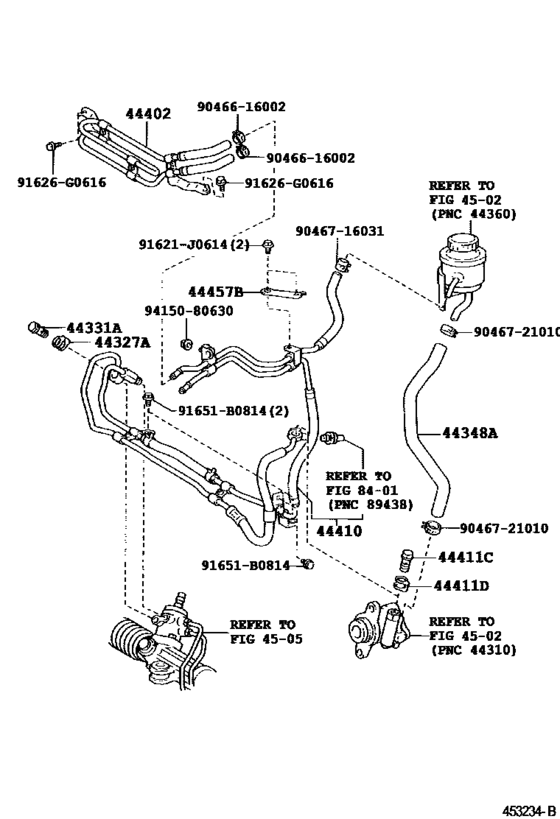

Power Steering Tube ([08.2002 - ] (0208- )HDJ101) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30030 Gasket(For Pressure Hose)[08.2002 - 05.2005] HDJ101,UZJ100 |
44327-30030 |
from US $1.90 |
||
|
44331A
|
44331A
44331-50070 Valve, Power Steering & Suspension Control Check[08.2002 - 05.2005] HDJ101,UZJ100 |
44331-50070 |
from US $8.46 |
||
|
44348A
|
44348A
44348-60340
Hose, Oil Reservoir To Pump, No.1
[08.2002 - 09.2002] HDJ101 |
44348-60340 |
— | ||
| replacement | |||||
|
44348A
|
44348A
44348-60341 Hose, Oil Reservoir To Pump, No.1[08.2002 - 09.2002] HDJ101 |
44348-60341 |
from US $48.43 |
||
|
44348A
|
44348A
44348-60341 Hose, Oil Reservoir To Pump, No.1[09.2002 - 05.2005] HDJ101 |
44348-60341 |
from US $48.43 |
||
|
44402
|
44402
44402-60020
Cooler Sub-Assy, Power Steering Oil, No.1
[08.2002 - 08.2004] HDJ101 |
44402-60020 |
— | ||
| replacement | |||||
|
44402
|
44402
44402-60023 Cooler Sub-Assy, Power Steering Oil, No.1[08.2002 - 08.2004] HDJ101 |
44402-60023 |
from US $136.28 |
||
|
44402
|
44402
44402-60021 Cooler Sub-Assy, Power Steering Oil, No.1[08.2004 - 09.2004] HDJ101 |
44402-60021 |
US $139.78 |
||
| replacement | |||||
|
44402
|
44402
44402-60023 Cooler Sub-Assy, Power Steering Oil, No.1[08.2004 - 09.2004] HDJ101 |
44402-60023 |
from US $136.28 |
||
|
44402
|
44402
44402-60023 Cooler Sub-Assy, Power Steering Oil, No.1[09.2004 - 05.2005] HDJ101 |
44402-60023 |
from US $136.28 |
||
|
44410
|
44410
44410-60600 Tube Assy, Pressure Feed[08.2002 - 08.2004] HDJ101 |
44410-60600 |
US $583.86 |
||
| replacement | |||||
|
44410
|
44410
44410-60603 Tube Assy, Pressure Feed[08.2002 - 08.2004] HDJ101 |
44410-60603 |
from US $454.01 |
||
|
44410
|
44410
44410-60601 Tube Assy, Pressure Feed[08.2004 - 09.2004] HDJ101 |
44410-60601 |
US $583.86 |
||
| replacement | |||||
|
44410
|
44410
44410-60603 Tube Assy, Pressure Feed[08.2004 - 09.2004] HDJ101 |
44410-60603 |
from US $454.01 |
||
|
44410
|
44410
44410-60603 Tube Assy, Pressure Feed[09.2004 - 05.2005] HDJ101 |
44410-60603 |
from US $454.01 |
||
|
44411C
|
44411C
90401-16034 Bolt, Union(For Pressure Feed Tube)[08.2002 - 05.2005] HDJ101,UZJ100 |
90401-16034 |
from US $6.81 |
||
|
44411D
|
44411D
44327-30040 Gasket, Pressure Port, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
44327-30040 |
from US $1.88 |
||
|
44457B
|
44457B
44457-60180
Bracket, Power Steering Tube Support, No.2
[08.2002 - 05.2005] HDJ101 |
44457-60180 |
— | ||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
91626G0616
|
91626G0616
91626-G0616 BOLT WWASHER |
91626-G0616 |
US $1.97 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
|
9046616002
|
9046616002
90466-16002 Clamp, Hose(For Oil Cooler) |
90466-16002 |
from US $3.12 |
||
|
9046716031
|
9046716031
90467-16031 CLIP |
90467-16031 |
from US $1.39 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9415080630
|
9415080630
94150-80630 New Genuine Part |
94150-80630 |
US $1.08 |
||
