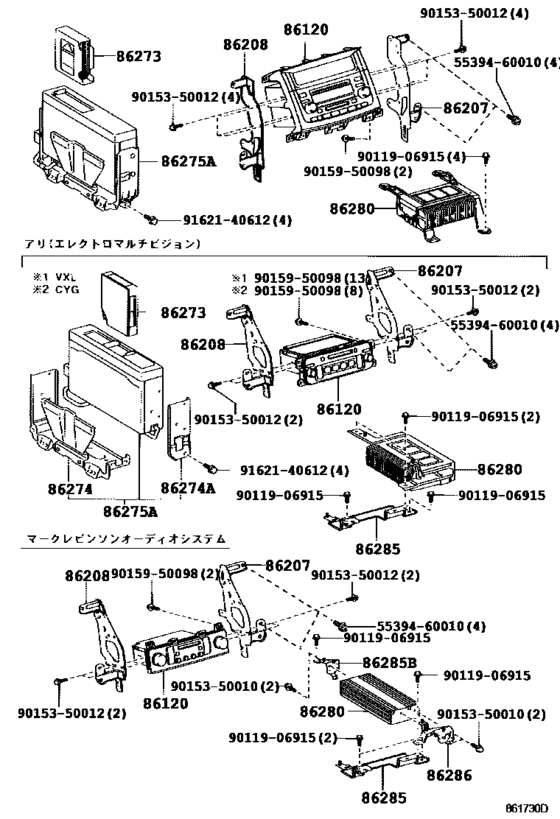

Radio Receiver & Amplifier & Condenser ([08.2002 - ] (0208- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86120
|
86120
86120-60660 Receiver Assy, Radio[08.2002 - 08.2003] HDJ101,UZJ100 ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ０３０９,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60660 |
US $3,115.84 |
||
| replacement | |||||
|
86120
|
86120
86120-60661 Receiver Assy, Radio[08.2002 - 08.2003] HDJ101,UZJ100 ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ０３０９,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60661 |
US $3,115.84 |
||
|
86120
|
86120
86120-60661 Receiver Assy, Radio[08.2003 - 05.2005] HDJ101,UZJ100 ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ０３１７,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60661 |
US $3,115.84 |
||
|
86120
|
86120
86120-60680 Receiver Assy, Radio[08.2002 - 08.2003] HDJ101,UZJ100..VXL ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ５９０４,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60680 |
US $1,703.52 |
||
| replacement | |||||
|
86120
|
86120
86120-60681 Receiver Assy, Radio[08.2002 - 08.2003] HDJ101,UZJ100..VXL ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ５９０４,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60681 |
US $1,703.52 |
||
|
86120
|
86120
86120-60681 Receiver Assy, Radio[08.2003 - 05.2005] HDJ101,UZJ100..VXL ＰＩＯＮＥＥＲ，ＩＤ＝Ｐ５９０５,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
86120-60681 |
US $1,703.52 |
||
|
86207
|
86207
86207-60020 Bracket Sub-Assy, Radio Receiver, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾅｼ(ｵ-ﾃﾞｲｵ) |
86207-60020 |
US $23.76 |
||
|
86207
|
86207
86207-60030
Bracket Sub-Assy, Radio Receiver, Rh
[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｵ-ﾃﾞｲｵ) |
86207-60030 |
— | ||
|
86207
|
86207
86207-60040 Bracket Sub-Assy, Radio Receiver, Rh[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86207-60040 |
US $22.57 |
||
|
86207
|
86207
86207-60041 Bracket Sub-Assy, Radio Receiver, Rh[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86207-60041 |
US $22.71 |
||
|
86208
|
86208
86208-60020 Bracket Sub-Assy, Radio Receiver, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ﾅｼ(ｵ-ﾃﾞｲｵ) |
86208-60020 |
US $23.76 |
||
|
86208
|
86208
86208-60030
Bracket Sub-Assy, Radio Receiver, Lh
[08.2002 - 05.2005] HDJ101,UZJ100 ｱﾘ(ｵ-ﾃﾞｲｵ) |
86208-60030 |
— | ||
|
86208
|
86208
86208-60040 Bracket Sub-Assy, Radio Receiver, Lh[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86208-60040 |
US $22.57 |
||
|
86208
|
86208
86208-60041 Bracket Sub-Assy, Radio Receiver, Lh[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86208-60041 |
US $22.71 |
||
|
86273
|
86273
86273-50060 Magazine, Disc Player[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86273-50060 |
US $74.95 |
||
|
86273
|
86273
86273-50070 Magazine, Disc Player[08.2002 - 07.2004] HDJ101,UZJ100..CYG,VXL ｱﾘ(DVD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
86273-50070 |
US $77.17 |
||
|
86273
|
86273
86273-60050 Magazine, Disc Player[07.2004 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(DVD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
86273-60050 |
US $93.18 |
||
|
86274
|
86274
86274-60220 Bracket, Disc Player[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86274-60220 |
US $44.99 |
||
|
86274A
|
86274A
86274-60230 Bracket, Disc Player[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86274-60230 |
US $12.52 |
||
|
86275A
|
86275A
86270-60100 Changer, Disc Player[08.2002 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86270-60100 |
US $2,518.88 |
||
|
86275A
|
86275A
86270-60120 Changer, Disc Player[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(DVD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
86270-60120 |
US $4,368 |
||
|
86275A
|
86275A
86270-60121 Changer, Disc Player[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(DVD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
86270-60121 |
US $4,368 |
||
|
86280
|
86280
86280-60350 Amplifier Assy, Stereo Component[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86280-60350 |
US $1,878.24 |
||
| replacement | |||||
|
86280
|
86280
86280-60351 Amplifier Assy, Stereo Component[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86280-60351 |
US $1,878.24 |
||
|
86280
|
86280
86280-60351 Amplifier Assy, Stereo Component[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
86280-60351 |
US $1,878.24 |
||
|
86280
|
86280
86280-60370 Amplifier Assy, Stereo Component[08.2002 - 08.2003] HDJ101,UZJ100 |
86280-60370 |
US $1,878.24 |
||
|
86280
|
86280
86280-60371 Amplifier Assy, Stereo Component[08.2003 - 05.2005] HDJ101,UZJ100 |
86280-60371 |
US $1,878.24 |
||
|
86285
|
86285
86285-60020 Bracket, Amplifier, No.1[08.2002 - 08.2003] HDJ101,UZJ100..CYG,VXL |
86285-60020 |
US $33.92 |
||
|
86285
|
86285
86285-60021 Bracket, Amplifier, No.1[08.2003 - 05.2005] HDJ101,UZJ100..CYG,VXL |
86285-60021 |
US $28.54 |
||
|
5539460010
|
5539460010
55394-60010 BOLT INSTRUMENT |
55394-60010 |
US $1.89 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.68 |
||
|
9015350012
|
9015350012
90153-50012 SCREW CROSSRECESS |
90153-50012 |
US $0.51 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.89 |
||
