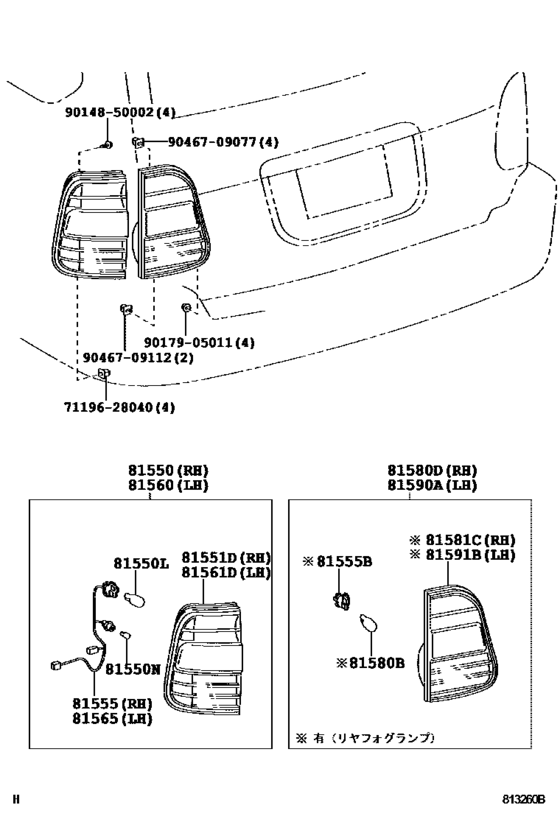

Rear Combination Lamp ([05.2005 - ] (0505- )VX,VXL) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-60680
Lamp Assy, Rear Combination, Rh
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81550-60680 |
— | ||
|
81550
|
81550
81550-60750 Lamp Assy, Rear Combination, Rh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL |
81550-60750 |
US $406.22 |
||
| replacement | |||||
|
81550
|
81550
81550-60751 Lamp Assy, Rear Combination, Rh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL |
81550-60751 |
US $406.22 |
||
|
81550
|
81550
81550-60751 Lamp Assy, Rear Combination, Rh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81550-60751 |
US $406.22 |
||
|
81550L
|
81550L
90981-13043 Bulb (12V 21W)[05.2005 -] HDJ101,UZJ100..VX,VXL |
90981-13043 |
from US $3.15 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[05.2005 -] HDJ101,UZJ100..VX,VXL |
90981-11059 |
from US $3.15 |
||
|
81551D
|
81551D
81551-60680 Lens & Body, Rear Combination Lamp, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81551-60680 |
from US $175.12 |
||
|
81551D
|
81551D
81551-60750
Lens & Body, Rear Combination Lamp, Rh
[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL |
81551-60750 |
— | ||
| replacement | |||||
|
81551D
|
81551D
81551-60751 Lens & Body, Rear Combination Lamp, Rh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL |
81551-60751 |
from US $264.67 |
||
|
81551D
|
81551D
81551-60751 Lens & Body, Rear Combination Lamp, Rh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81551-60751 |
from US $264.67 |
||
|
81555
|
81555
81555-60680 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81555-60680 |
US $33.20 |
||
|
81555
|
81555
81555-60750 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2005 -] HDJ101,UZJ100..VX,VXL |
81555-60750 |
from US $23.33 |
||
|
81555B
|
81555B
90075-60002 Socket, Tail & Stop Lamp[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
90075-60002 |
from US $3.91 |
||
|
81555B
|
81555B
90075-60003 Socket,rear Fog Lamp[08.2002 - 05.2005] UZJ100..CYG; HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
90075-60003 |
US $6.47 |
||
|
81560
|
81560
81560-60600 Lamp Assy, Rear Combination, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81560-60600 |
US $288.29 |
||
|
81560
|
81560
81560-60670 Lamp Assy, Rear Combination, Lh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL |
81560-60670 |
US $406.22 |
||
| replacement | |||||
|
81560
|
81560
81560-60671 Lamp Assy, Rear Combination, Lh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL |
81560-60671 |
US $406.22 |
||
|
81560
|
81560
81560-60671 Lamp Assy, Rear Combination, Lh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81560-60671 |
US $406.22 |
||
|
81561D
|
81561D
81561-60600 Lens & Body, Rear Combination Lamp, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81561-60600 |
from US $155.84 |
||
|
81561D
|
81561D
81561-60670 Lens & Body, Rear Combination Lamp, Lh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL |
81561-60670 |
US $364 |
||
| replacement | |||||
|
81561D
|
81561D
81561-60671 Lens & Body, Rear Combination Lamp, Lh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL |
81561-60671 |
from US $258.21 |
||
|
81561D
|
81561D
81561-60671 Lens & Body, Rear Combination Lamp, Lh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81561-60671 |
from US $258.21 |
||
|
81565
|
81565
81555-60680 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81555-60680 |
US $33.20 |
||
|
81565
|
81565
81555-60750 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2005 -] HDJ101,UZJ100..VX,VXL |
81555-60750 |
from US $23.33 |
||
|
81580B
|
81580B
90981-13043 Bulb (12V 21W)[08.2002 - 05.2005] UZJ100..CYG １２Ｖ ２１Ｗ; HDJ101,UZJ100..VX,VXL １２Ｖ ２１Ｗ,ｶﾝﾚｲﾁ ｼﾖｳ |
90981-13043 |
from US $3.15 |
||
|
81580B
|
81580B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.46 |
||
|
81580D
|
81580D
81580-60020
Lamp Assy, Rear, Rh
[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81580-60020 |
— | ||
|
81580D
|
81580D
81580-60070 Lamp Assy, Rear, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
81580-60070 |
US $250.43 |
||
|
81580D
|
81580D
81580-60120 Lamp Assy, Rear, Rh[05.2005 -] HDJ101,UZJ100..VX,VXL |
81580-60120 |
from US $266.97 |
||
|
81580D
|
81580D
81580-60140 Lamp Assy, Rear, Rh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81580-60140 |
US $302.85 |
||
| replacement | |||||
|
81580D
|
81580D
81580-60141 Lamp Assy, Rear, Rh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81580-60141 |
US $302.85 |
||
|
81580D
|
81580D
81580-60141 Lamp Assy, Rear, Rh[10.2006 -] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81580-60141 |
US $302.85 |
||
|
81581C
|
81581C
81581-60020 Lens And Body, Rear Lamp, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81581-60020 |
from US $146.78 |
||
|
81581C
|
81581C
81581-60070 Lens And Body, Rear Lamp, Rh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
81581-60070 |
US $240.24 |
||
|
81581C
|
81581C
81581-60140 Lens And Body, Rear Lamp, Rh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81581-60140 |
US $288.29 |
||
| replacement | |||||
|
81581C
|
81581C
81581-60141 Lens And Body, Rear Lamp, Rh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81581-60141 |
US $288.29 |
||
|
81581C
|
81581C
81581-60141 Lens And Body, Rear Lamp, Rh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81581-60141 |
US $288.29 |
||
|
81590A
|
81590A
81590-60050 Lamp Assy, Rear, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81590-60050 |
US $250.43 |
||
|
81590A
|
81590A
81590-60100 Lamp Assy, Rear, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
81590-60100 |
US $250.43 |
||
|
81590A
|
81590A
81590-60150 Lamp Assy, Rear, Lh[05.2005 -] HDJ101,UZJ100..VX,VXL |
81590-60150 |
from US $260.89 |
||
|
81590A
|
81590A
81590-60170 Lamp Assy, Rear, Lh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81590-60170 |
US $302.85 |
||
| replacement | |||||
|
81590A
|
81590A
81590-60171 Lamp Assy, Rear, Lh[05.2005 - 09.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81590-60171 |
US $302.85 |
||
|
81590A
|
81590A
81590-60171 Lamp Assy, Rear, Lh[10.2006 -] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81590-60171 |
US $302.85 |
||
|
81591B
|
81591B
81591-60050 Lens And Body, Rear Lamp, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL |
81591-60050 |
from US $143.18 |
||
|
81591B
|
81591B
81591-60100 Lens And Body, Rear Lamp, Lh[08.2002 - 05.2005] HDJ101,UZJ100..VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ |
81591-60100 |
US $240.24 |
||
|
81591B
|
81591B
81591-60170 Lens And Body, Rear Lamp, Lh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81591-60170 |
US $288.29 |
||
| replacement | |||||
|
81591B
|
81591B
81591-60171 Lens And Body, Rear Lamp, Lh[05.2005 - 10.2006] HDJ101,UZJ100..VX,VXL ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ) |
81591-60171 |
from US $237.41 |
||
|
81591B
|
81591B
81591-60171 Lens And Body, Rear Lamp, Lh[10.2006 -] HDJ101,UZJ100..VX,VXL |
81591-60171 |
from US $237.41 |
||
|
7119628040
|
7119628040
71196-28040 Clip(for Rear Spoiler) |
71196-28040 |
from US $0.95 |
||
|
9014850002
|
9014850002
90148-50002 Screw Hex Lobular |
90148-50002 |
US $2.33 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.76 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9046709077
|
9046709077
90467-09077 Clip(For Rear Combination Lamp) |
90467-09077 |
from US $0.74 |
||
|
9046709112
|
9046709112
90467-09112 Clip(For Rear Combination Lamp) |
90467-09112 |
from US $1.48 |
||
