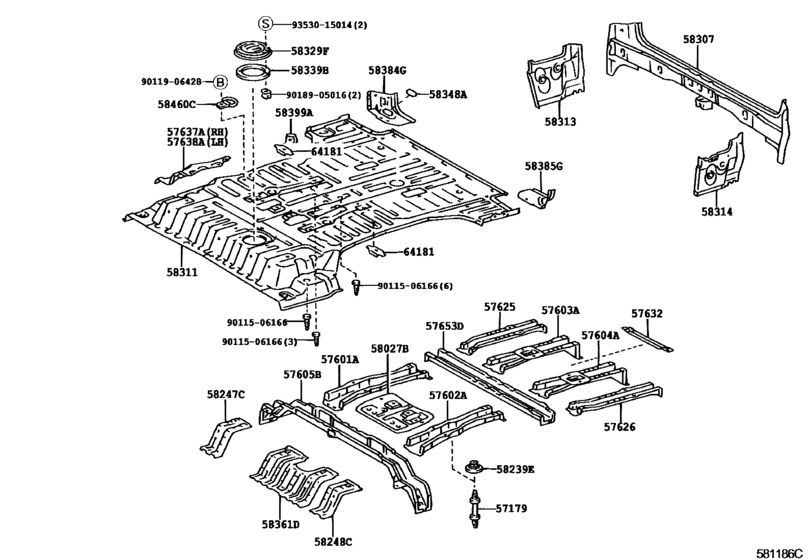

Rear Floor Panel & Rear Floor Member ([01.1998 - ] (9801- )) Diagram Toyota LAND CRUISER
- Year
- 2002 - 2007
- Sales region
- Japan
- Frame
- HDJ101
- grade
- VXL
- ENGINE
- 1HDFTE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 100
- From
- 08.2002
- To
- 08.2007
- Gear Shift Type
- 5FC
- Vehicle Model
- Land Cruiser
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57179
|
57179
57179-60020
Bolt, Floor Crossmember
[08.2002 - 05.2005] HDJ101,UZJ100 |
57179-60020 |
— | ||
|
57601A
|
57601A
57601-60080
Member Sub-Assy, Rear Floor Side, Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
57601-60080 |
— | ||
|
57602A
|
57602A
57602-60080
Member Sub-Assy, Rear Floor Side, Lh
[08.2002 - 05.2005] HDJ101,UZJ100 |
57602-60080 |
— | ||
|
57603A
|
57603A
57603-60081 Member Sub-Assy, Rear Floor Side, Rear Rh[08.2002 - 08.2003] HDJ101;UZJ100..VX |
57603-60081 |
US $87.36 |
||
| replacement | |||||
|
57603A
|
57603A
57603-60082 Member Sub-Assy, Rear Floor Side, Rear RhREAR FLOOR SIDE, REAR RH [08.2002 - 08.2003] HDJ101;UZJ100..VX |
57603-60082 |
US $87.36 |
||
|
57603A
|
57603A
57603-60091 Member Sub-Assy, Rear Floor Side, Rear Rh[08.2003 - 11.2004] HDJ101;UZJ100..VX |
57603-60091 |
US $119.39 |
||
| replacement | |||||
|
57603A
|
57603A
57603-60092
Member Sub-Assy, Rear Floor Side, Rear Rh
[08.2003 - 11.2004] HDJ101;UZJ100..VX |
57603-60092 |
— | ||
|
57603A
|
57603A
57603-60092
Member Sub-Assy, Rear Floor Side, Rear Rh
[12.2004 - 05.2005] HDJ101;UZJ100..VX |
57603-60092 |
— | ||
|
57604A
|
57604A
57603-60081 Member Sub-Assy, Rear Floor Side, Rear Rh[08.2002 - 08.2003] HDJ101;UZJ100..VX |
57603-60081 |
US $87.36 |
||
| replacement | |||||
|
57604A
|
57604A
57603-60082 Member Sub-Assy, Rear Floor Side, Rear RhREAR FLOOR SIDE, REAR RH [08.2002 - 08.2003] HDJ101;UZJ100..VX |
57603-60082 |
US $87.36 |
||
|
57604A
|
57604A
57603-60091 Member Sub-Assy, Rear Floor Side, Rear Rh[08.2003 - 11.2004] HDJ101;UZJ100..VX |
57603-60091 |
US $119.39 |
||
| replacement | |||||
|
57604A
|
57604A
57603-60092
Member Sub-Assy, Rear Floor Side, Rear Rh
[08.2003 - 11.2004] HDJ101;UZJ100..VX |
57603-60092 |
— | ||
|
57604A
|
57604A
57603-60092
Member Sub-Assy, Rear Floor Side, Rear Rh
[12.2004 - 05.2005] HDJ101;UZJ100..VX |
57603-60092 |
— | ||
|
57605B
|
57605B
57068-60060 Member Sub-Assy, Rear Floor Cross, No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
57068-60060 |
US $320.32 |
||
|
57625
|
57625
57625-60020
Reinforcement, Rear Floor Side Member, Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
57625-60020 |
— | ||
|
57626
|
57626
57626-60021
Reinforcement, Rear Floor Side Member, Lh
[08.2002 - 05.2005] HDJ101,UZJ100 |
57626-60021 |
— | ||
|
57632
|
57632
57632-60040 Member, Rear Floor, Center No.1[08.2002 - 05.2005] HDJ101,UZJ100 |
57632-60040 |
US $33.63 |
||
|
57637A
|
57637A
57637-60020 Reinforcement, Rear Floor Side, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
57637-60020 |
US $60.13 |
||
|
57638A
|
57638A
57638-60020 Reinforcement, Rear Floor Side, Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
57638-60020 |
US $61.44 |
||
|
57653D
|
57653D
57607-60020 Member, Rear Floor Cross, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
57607-60020 |
US $216.94 |
||
|
58027B
|
58027B
58027-60040 Reinforce Sub-Assy, Seat Belt Anchor[08.2002 - 05.2005] HDJ101,UZJ100 |
58027-60040 |
US $100.46 |
||
|
58239E
|
58239E
58239-60020 Plate, Belt Anchor Nut[08.2002 - 05.2005] HDJ101,UZJ100 |
58239-60020 |
US $17.91 |
||
|
58247C
|
58247C
58247-60040 Reinforcement, Rear Seat Cushion Hinge, Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
58247-60040 |
from US $42.66 |
||
|
58248C
|
58248C
58248-60050 Reinforcement, Rear Seat Cushion Hinge, Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
58248-60050 |
from US $42.66 |
||
|
58307
|
58307
58302-60451 Panel Sub-Assy, Body Lower Back[08.2002 - 05.2005] HDJ101,UZJ100 |
58302-60451 |
US $615.89 |
||
|
58311
|
58311
58311-60480 Pan, Rear Floor[08.2003 - 05.2005] HDJ101;UZJ100..VX |
58311-60480 |
US $939.12 |
||
|
58311
|
58311
58311-60560 Pan, Rear Floor[08.2002 - 08.2003] HDJ101;UZJ100..VX |
58311-60560 |
US $939.12 |
||
|
58313
|
58313
58313-60100
Panel, Rear Floor Side, Rh
[08.2002 - 05.2005] HDJ101,UZJ100 |
58313-60100 |
— | ||
|
58314
|
58314
58314-60100 Panel, Rear Floor Side, Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
58314-60100 |
US $73.25 |
||
|
58329F
|
58329F
58329-60030 Cover, Rear Floor Service Hole, No.2[08.2002 - 05.2005] HDJ101,UZJ100 |
58329-60030 |
US $22.71 |
||
|
58339B
|
58339B
58339-60050 Packing, Rear Floor Service Hole[08.2002 - 05.2005] HDJ101,UZJ100 |
58339-60050 |
US $9.90 |
||
|
58361D
|
58361D
58361-60051 Reinforcement, Rear Floor Panel, No.1 Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
58361-60051 |
from US $104.83 |
||
|
58384G
|
58384G
58384-60030 Gusset, Lower Back, Upper Rh[08.2002 - 05.2005] HDJ101,UZJ100 |
58384-60030 |
US $35.67 |
||
|
58385G
|
58385G
58385-60032 Gusset, Lower Back, Upper Lh[08.2002 - 05.2005] HDJ101,UZJ100 |
58385-60032 |
US $35.67 |
||
|
58460C
|
58460C
58460-35012 Striker Assy, Luggage Hold Belt[08.2002 - 05.2005] HDJ101,UZJ100 |
58460-35012 |
from US $10.24 |
||
|
64181
|
64181
58316-60050 Reinforcement Sub-Assy, Rear Seat Belt Anchor[08.2003 - 05.2005] HDJ101,UZJ100 |
58316-60050 |
US $5.97 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.91 |
||
|
9011906428
|
9011906428
90119-06428 New Genuine Part |
90119-06428 |
US $1.43 |
||
|
9018905016
|
9018905016
90189-05016 Grommet, Screw |
90189-05016 |
US $3.76 |
||
|
9353015014
|
9353015014
93530-15014 Screw |
93530-15014 |
US $2.20 |
||
